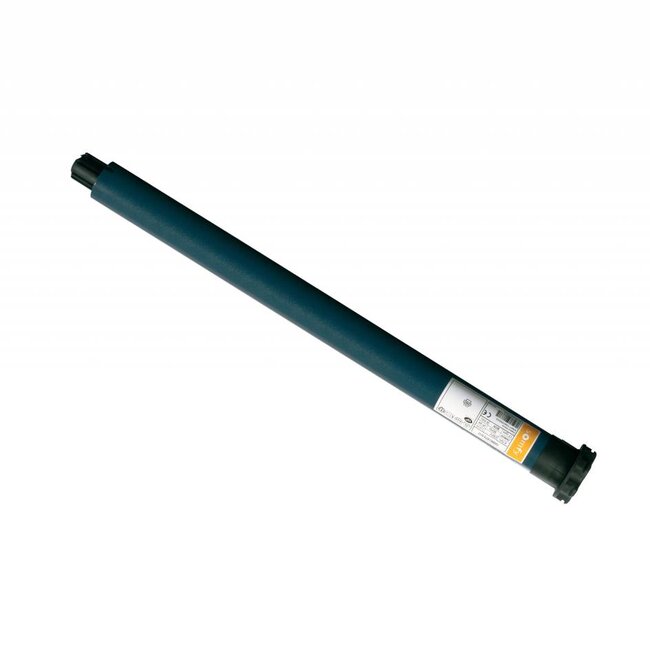

Somfy Oximo 50 WT tubular motor with fully automatic adjustment

- supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- shutter motor available in 6 Nm to 40 Nm
- adapters and carriers of Somfy 50 series
- because of the fully automatic adjustment, the Motor does not need any adjustment and
the motor switches off on the measured resistance
- a Somfy adjustment cable is required to manually adjust the tubular motor
- fits in a tube with a minimum inner diameter of 47 mm
- capacity of the final adjustment: 200 revolutions, running time is limited to 4 min.
- supplied as standard with a white 4-wire (VVF) cable, length 3 m. Axial and radial cable outlet
- roller shutter motor not suitable for continuous use
- intelligent obstacle detection in both up and down direction.
- Motor stops in case of obstacle or freezing.
- automatic maintenance cycle (monthly with automatic adjustment of end points), so that
Roller shutter always opens and closes perfectly.
- Parallel connection of motors possible.
- not applicable with standard suspension springs, only with rigid connection to Axle/Shaft.

Somfy Oximo 50 WT roller shutter motor is available in the following models
- Somfy Oximo 50 WT 6/17 - 6 Nm - 17 rpm - length 605 mm
- Somfy Oximo 50 WT 10/17 - 10 Nm - 17 rpm - length 655 mm
- Somfy Oximo 50 WT 15/17 - 15 Nm - 17 rpm - length 655 mm
- Somfy Oximo 50 WT 20/17 - 20 Nm - 17 rpm - length 655 mm
- Somfy Oximo 50 WT 30/17 - 30 Nm - 17 rpm - length 675 mm
- Somfy Oximo 50 WT 40/17 - 40 Nm - 17 rpm - length 745 mm
