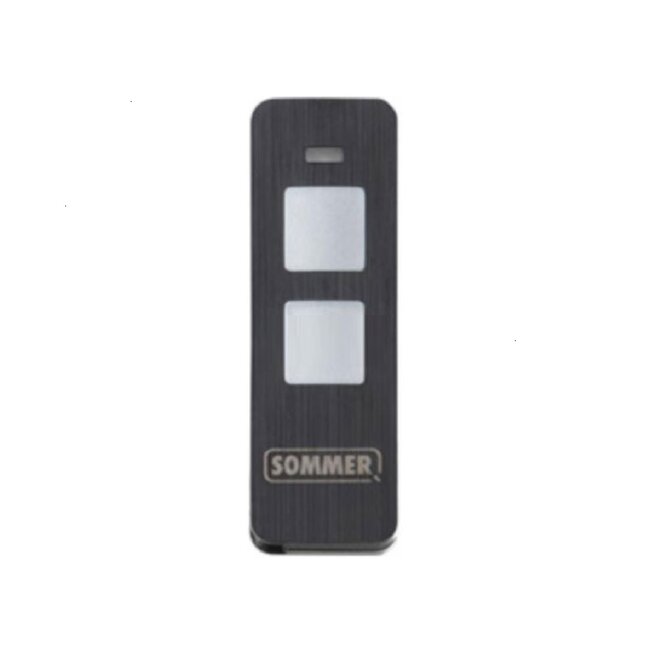

Sommer Pearl Twin

The Sommer Pearl Twin has a region code and only works with devices that also have the same region code. The transmitters we supply have the region code S10019-00005, see the back of your current Handheld transmitter. If your current Sommer transmitter also has this region code, then this transmitter is compatible with your installation.

- 2-channel handheld transmitter

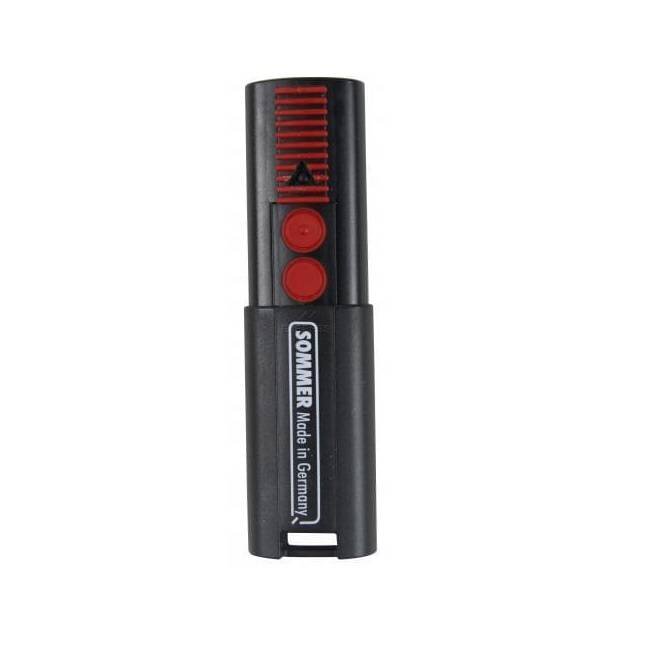

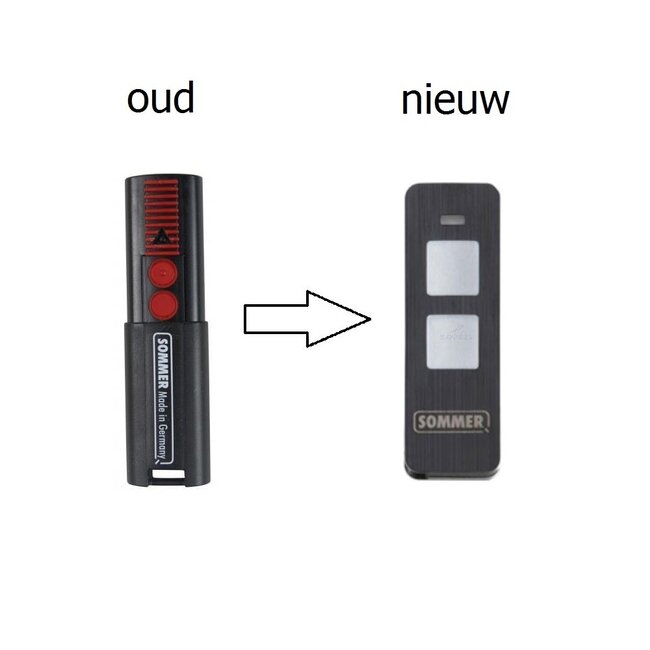

- successor to Sommer TX03-868-2 Som 4026
- colour black
- red LED
- size 79x26x13 mm (wxhxd)
- frequency 868 MHz
- battery CR2032 3V
- Somloq2 rolling-code system prevents reading and eavesdropping on the radio signal
- with practical rear fastening clip and the possibility of attaching to a
key ring

Switching between SOMloq and SOMloq2 coding
Basically, this transmitter is ready to pair with a 128Bit receiver (SOMloq2) and the LED will be orange/amber. By holding the pushbutton longer, the LED will turn red and the corresponding transmitter channel will switch to 64Bit (SOMloq1).

If the transmitter is first taught on an old Sommer receiver (Somloq1 = press for ± 2 seconds until LED turns red) and you then teach it, on a new Somloq2 receiver, the transmitter will no longer work on the Somloq1 receiver because the transmitter knows via feedback that it is in mode Somloq2. If you then press for 2 to 3 seconds, the Transmitter will not go to Somloq1, but will go into repeater mode and will transmit 5 times for ±15 seconds.

If you teach it first, to a Somloq2 then you have to press 5 times on the Transmitter before you can put it back into Somloq1 mode and teach it to a Somloq1 receiver. You then also need to be out of range of the previously taught Somloq2 receiver, otherwise the Transmitter will then be constantly reminded, via bi-directional communication, that it is in Somloq2.
