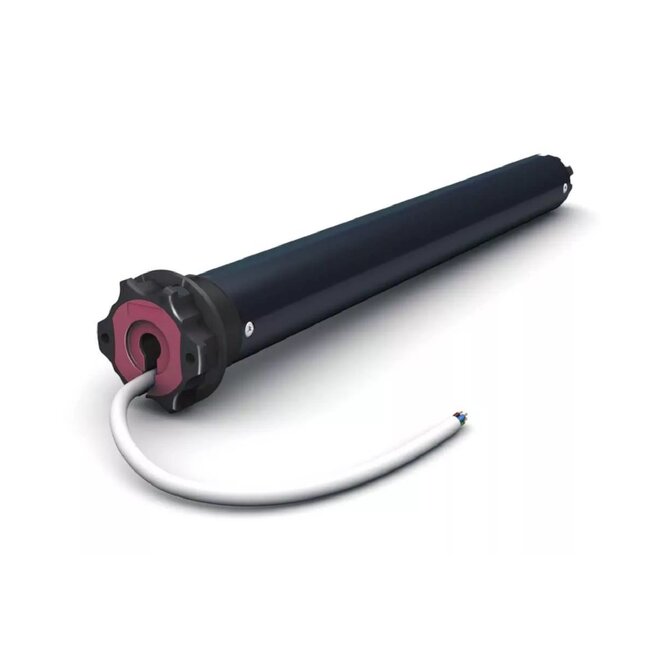

Cherubini Plug & Play Plus tubular motors

Plug & Play tubular motors with fully automatic final adjustment. Available in 10 to 50 Nm. Motor has no teach-in, setting or reset procedure. The motors are always sensitive and permanently monitor their movement. They have anti-freezing and blocking recognition in both directions. The detection and setting of the end positions is performed automatically by the upper and lower end positions. Plug & Play motors require rigid connections and a fixed upper and lower stop. In the end position, the Motor briefly turns in the opposite direction to remove tension on the material. It is possible to switch the motors in parallel. Control via a one-way switch is possible. Ideal for Roller shutters, they save a lot of time in the production and assembly of roller shutters.

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- available in 10 to 50 Nm
- speed depending on force

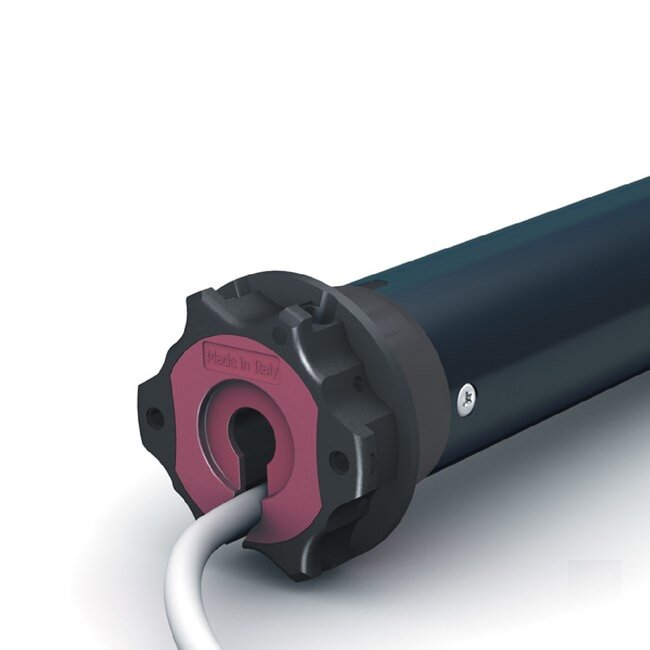

- motor head fits the most popular motor supports on the market
- suitable for Roller shutters only
- no teach-in or reset procedure necessary, just switch on the power and... ready!
- with fixed stop and rigid connections, adjustment is automatic
- hindrance detection in both directions
- freeze protection
- lift protection when rigid connections are used
- Motor can be connected in parallel

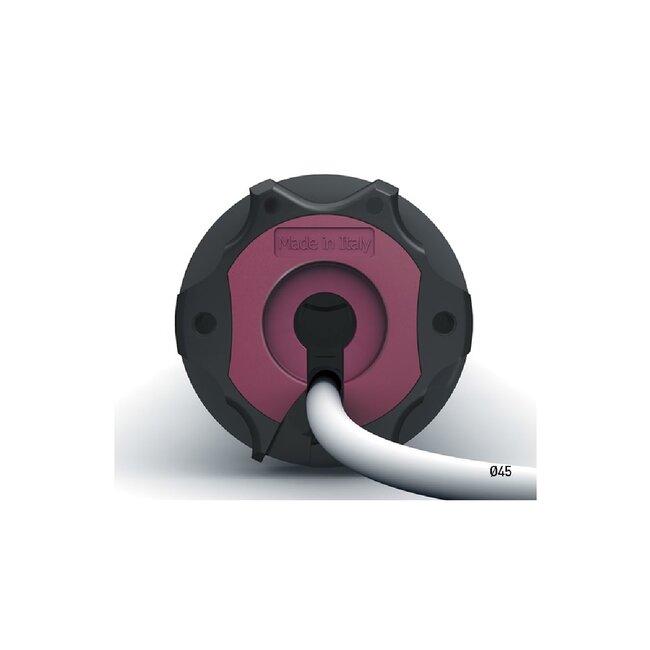

- fits pipes with a minimum inner diameter of 50 mm
- final adjustment capacity 25 revolutions

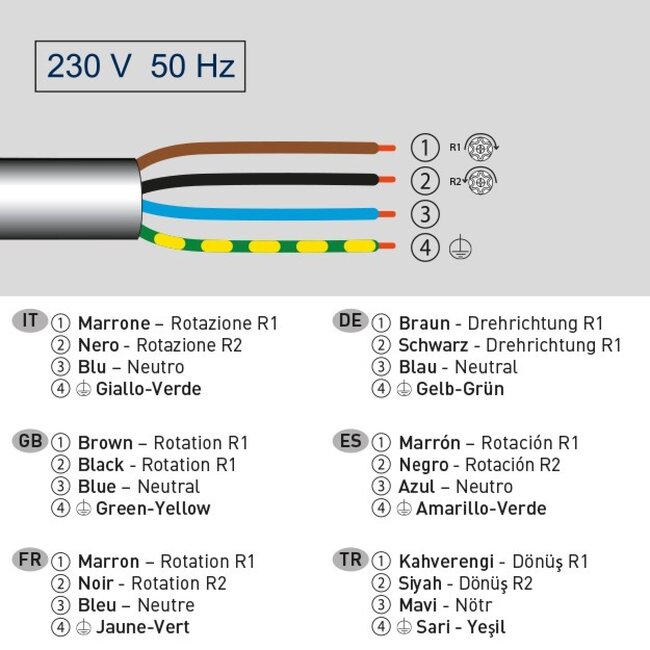

- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

download the Cherubini Plug & Play Plus tube motor manual here

Type Cherubini Plug & Play Plus Tubular motors
- Cherubini Plug & Play Plus 10/17 - 10 Nm - 17 rpm - 135 Watt - length 546 mm
- Cherubini Plug & Play Plus 15/17 - 15 Nm - 17 rpm - 170 Watt - length 546 mm
- Cherubini Plug & Play Plus 25/17 - 25 Nm - 17 rpm - 225 Watt - length 586 mm
- Cherubini Plug & Play Plus 32/17 - 32 Nm - 17 rpm - 250 W - length 586 mm
- Cherubini Plug & Play Plus 40/17 - 40 Nm - 17 rpm - 275 W - length 586 mm
- Cherubini Plug & Play Plus 50/12 - 50 Nm - 12 rpm - 275 W - length 586 mm
