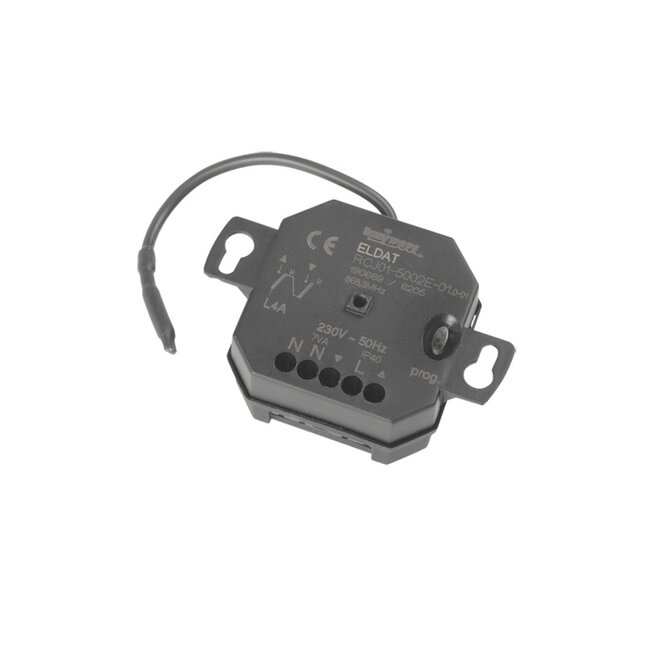

Eldat RCJ01 built-in receiver for Roller shutters

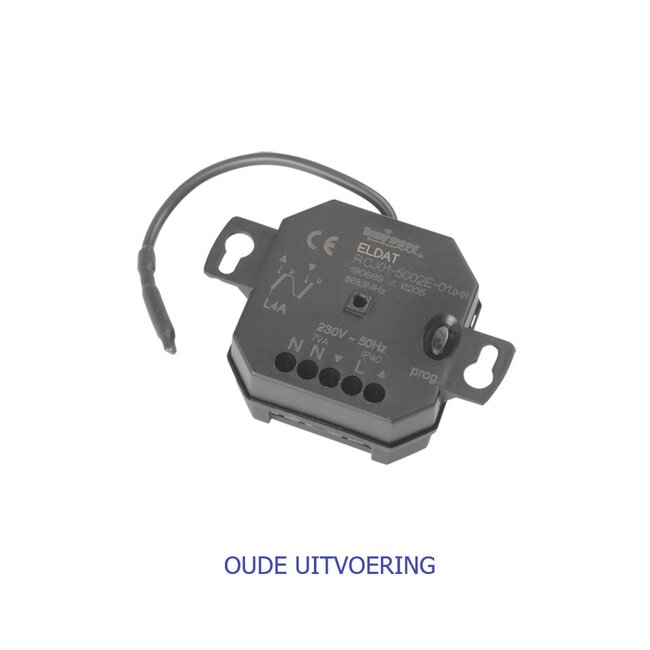

Successor to the Altron 250-305 RadioBlack roller shutter receiver that allows you to easily convert your existing tube motor into a remote controlled tube motor.
This version of the RCJ01 built-in receiver is designed to control tube motors directly. The receiver can be controlled by almost any 3-channel Easywave Handheld transmitter in UP/STOP/DOWN operating mode. To prevent overloading the tube motor, the receiver is equipped with an automatic switch-off mechanism. With its compact dimensions, the RCJ01 roller shutter receiver fits into all flush-mounted boxes. Up to 32 transmitters can be programmed into the receiver's memory. Programming is very simple and is carried out by directly pressing a button on the device.

- Ideal when renovating a motorised roller shutter operated by a Switch
- can be operated with Altron handheld transmitters
- 1-channel roller shutter receiver
- memory for 32 Easywave transmitters
- maximum motor power 80 Nm
- frequency 868.30 MHz
- range in the house 20 metres
- nominal voltage 230 Volt
- maximum contact load 3.2 Ampere
- consumption 1.2 Watt
- protection index IP20
- dimensions 50x50x30 mm
- centre-to-centre distance between fixing holes is 60 mm
