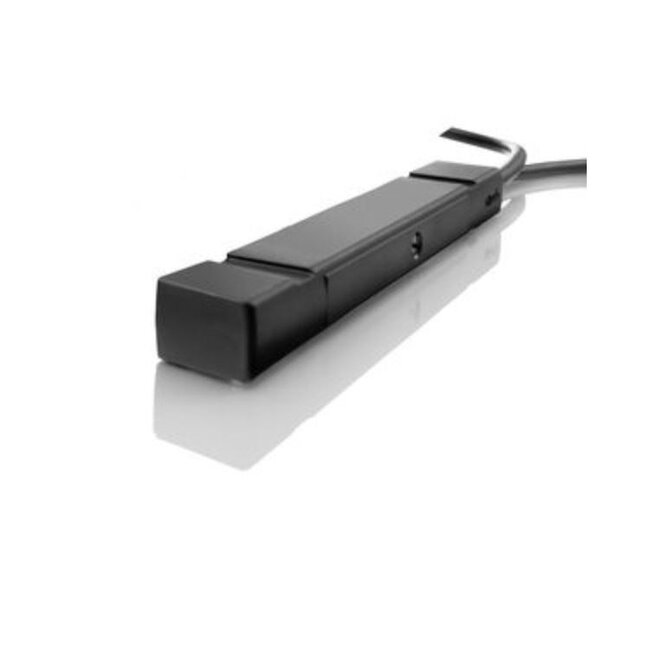

Somfy io receiver for coloured LEDs (RGB+W)

This io-homecontrol® receiver for coloured LEDs (RGB+W), can control a circuit with RGB LEDs and separately a circuit with white LEDs.
The power supply of the receiver depends on the LEDs used: 12 or 24 V dc.
Only to be used with LEDs with constant voltage.

- Somfy io-homecontrol protocol
- frequency 868.00 MHz
- suitable to switch a circuit of coloured LEDs (RGB) on and off and to dim them
- an additional circuit of white LEDs can also be switched on and off and dimmed.
- these white LEDs can be a separate circuit or, when using RGB+W LEDS, the integrated white LEDs
- dimming can be done easily via the transmitter's scroll wheel or via the Nina io's touch screen or via the Connexoon io or TaHoma's app
- adjusting the colour can be done via the up or down buttons of a Situo 5 VAR A/M io transmitter as well as via the app of the Connexoon io or of the TaHoma
- from the next software version of the Nina io (V4) you will also be able to adjust the colour of the LEDs with this.
- its discrete shape makes it very easy to conceal
- the receiver displays the current colour and brightness of the LED at a Control with feedback
- the integrated 'sleep timer' prevents unnecessary prolonged lighting
- the switch-off time can be set to 3h - 6h or 12h
- this function is deactivated as standard
- Size 25x18.5x190 mm (wxhxl)
- Black colour
- protection class IP55
- nominal voltage/frequency 12 or 24 Vdc

Download here the Somfy io receiver manual for coloured LEDs
Download here the data sheet of the Somfy io receiver for coloured LEDs
