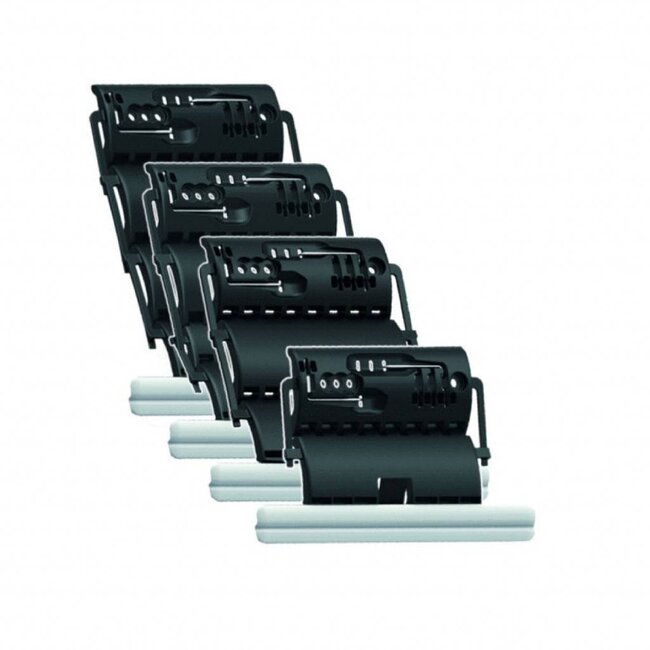

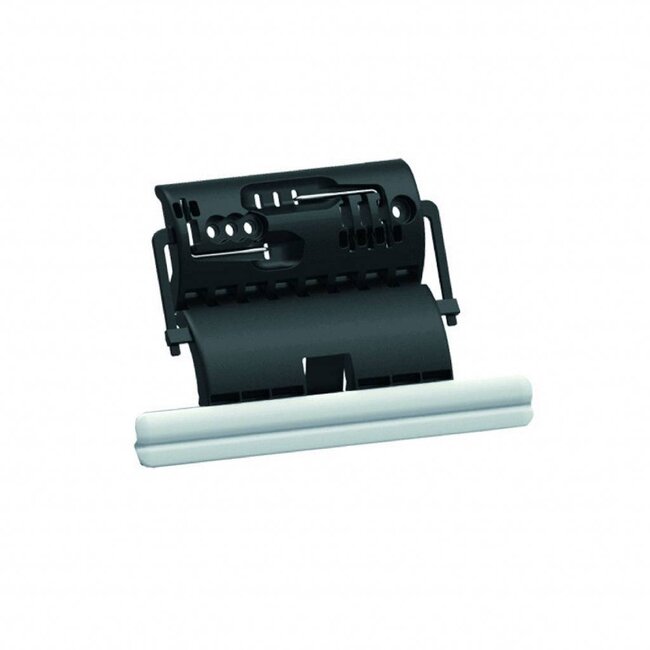

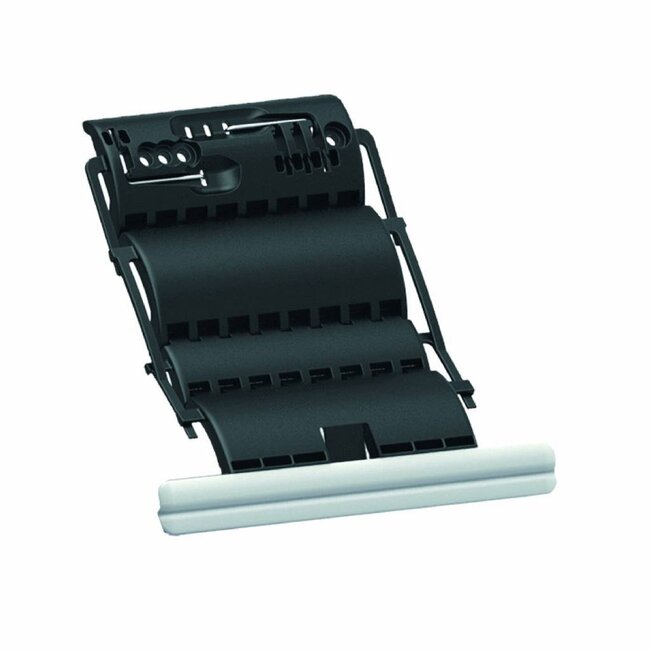

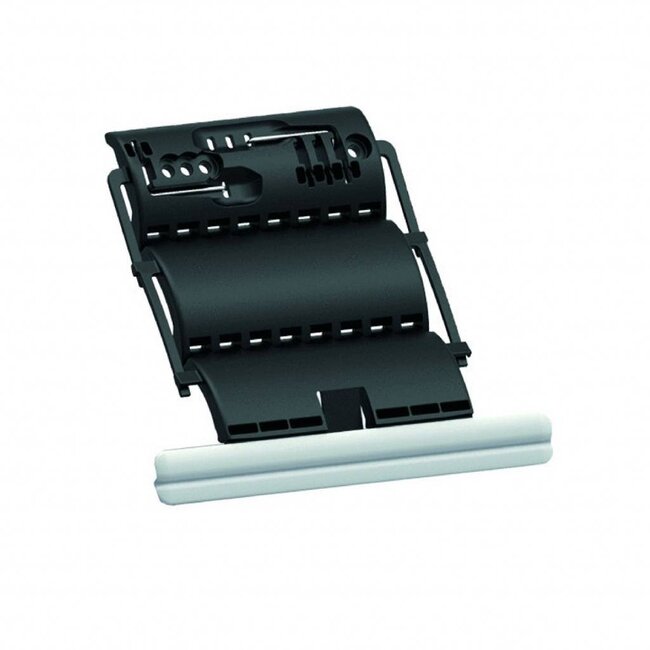

Octo Click roller shutter springs

The Octo Click rigid connection Octoclick fixes the roller shutter armour in such a way that lifting the roller shutter becomes considerably more difficult.

The rigid connection, also called roller shutter holder, can be used for roller shutters with a monocomando or electrically operated roller shutters with an obstacle detection in the down direction, such as the Somfy Ilmo, Oximo and RS100 series.

Easy mounting, as the connection is fixed with adjustable clips in the square holes of the Axle/Shaft, there is also the possibility to fix the connection with screws in the Axle/Shaft.

Suitable for 8 side 50 and 8 side 60 Axle/Shaft.

Due to the reversible connection (the grey strip) to the armour, this suspension spring can be used for both mini and normal roller shutter profiles up to 14 mm.

Which rigid connection do you need:
- 1 piece for case 125 to 165 mm
- 2 pieces for boxes 180 to 205 mm
- 3 pieces for enclosures 230 to 300 mm

How many rigid connections are required
- width 0 to 1400 mm 2 pieces
- Width 1400 to 2350 mm 3 units
- width 2350 to 3300 mm 4 units
