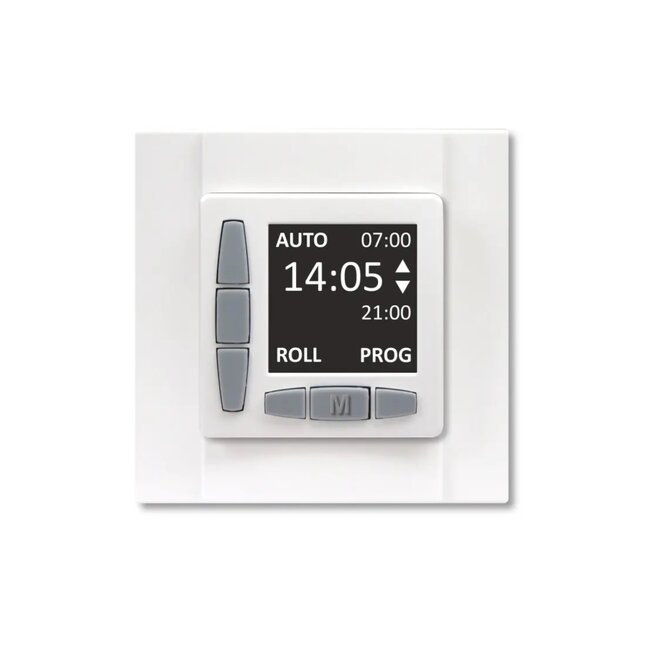

Electronic time clock for operating tubular motors with time automation, holiday switching, tip control, automatic winter/summer time changeover and quick programming of switching times. Read more.
Known for their ease of use and modern look, Inprojal Rojal timers are ideal for both new installations and upgrading older systems such as various DUOMATIC models or the Memory Switch. These ROJAL time clocks are designed for easy installation with their plug-and-play system and appropriate connections. The replacement process is quick and does not require any new wiring. All that is required is to remove the old clock from the current, wired mounting and insert the new ROJAL M or S. Models such as the Duomatic N, S, SD or the Memory Switch 7013 can be effortlessly replaced by simply inserting a Rojal M or S.
- Supply voltage 230 V
- maximum switching current 3 Ampere
- temperature range 0°C to +45°C
- motor running time 2.5 min.
- energy consumption 0.5 Watt
- power reserve up to 72 hours
- protection rating: IP 40
- colour Ultra-white

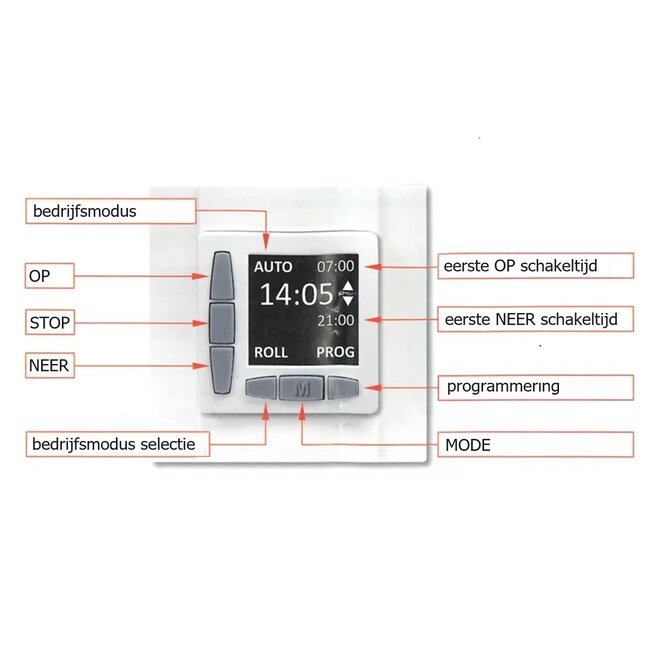

- 1.7-inch display showing important information
- large and easy-to-operate Softtouch keys
- very simple programming
- daily programme (one UP and one DOWN time programmable)
- permanent display of switching times on the display
- automatic summer/winter time changeover
- 3 operating modes: manual, automatic or holiday/random
- Touch operation possible (inclined positioning of louvre slats)
- power reserve in case of power failure up to 72 hours
- reset/factory settings possible via a button
- colour ultra white
- separate installation housing with connection terminals enables easy installation
- Rojal time switches are compatible with several older Rojal time switches
