Time clock with oa day/week programme, adjustable motor time, ventilation setting, winter/summer time and and connection for an optional sun/twilight sensor. Read more.

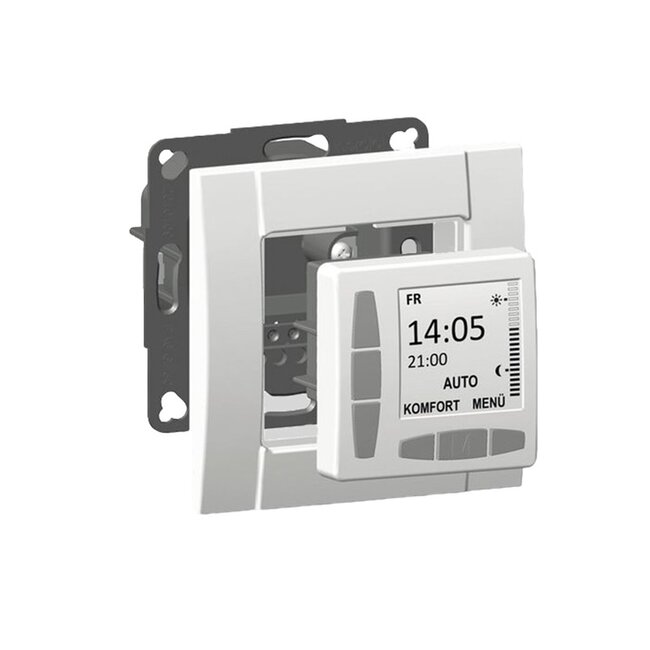

The Inprojal Rojal timers, with their comfortable and contemporary design, are not only suitable for new installations but are also a perfect replacement for several older DUOMATIC models or the Memory Switch. This is because ROJAL timers feature a plug-and-play design and compatible terminal configuration. Replacement is quick and easy without the need for new wiring. Simply remove the old clock from its existing, wired housing and insert the new ROJAL M or S. Models such as the Duomatic N, S, SD or the Memory Switch 7013 can be easily replaced by simply plugging in the Rojal M or S.
- Supply voltage 230 V
- maximum switching current 3 Ampere
- temperature range 0°C to +45°C
- motor running time adjustable from 0 to 180 seconds
- energy consumption 1 Watt
- power reserve up to 72 hours
- protection rating: IP 40
- colour Ultra-white
- Ultra-white colour
- 1.7-inch display showing important information
- backlit display with 7 colour schemes
- large and easy-to-operate Softtouch keys
- very simple programming
- daily and weekly programme (one UP and one DOWN time programmable)
- permanent display of switching times on the display
- sun or twilight sensor possible / function can be switched on and off
- When a sensor is connected, the current light values and set values are displayed.
- limit values set for sun and twilight when sensor is used are shown on the display
- automatic summer/winter time changeover (can be deactivated)
- 3 operating modes: manual, automatic or holiday/random
- Touch operation possible (inclined positioning of blinds slats)
- automatic turning function for blinds (0 to 5 sec.)
- adjustable comfort position (intermediate position / partial lowering)
