Timer roll-off guard TA-5-RD

This protection is produced to customer order and cannot be returned.

A roll-off protection functions as a normal bearing, on the other side of the roller shutter shaft than where the tube motor is mounted. If something inside or on the tube motor fails, the Roller shutter will unwind at high speed, the roll-off protection intervenes and will block the Axle/Shaft, bringing the Roller shutter to a stop.

- torque 1943Nm
- blocking torque 10336 Nm
- torque (rpm) 12 rpm
- shaft diameter Ø 60 or 65 mm

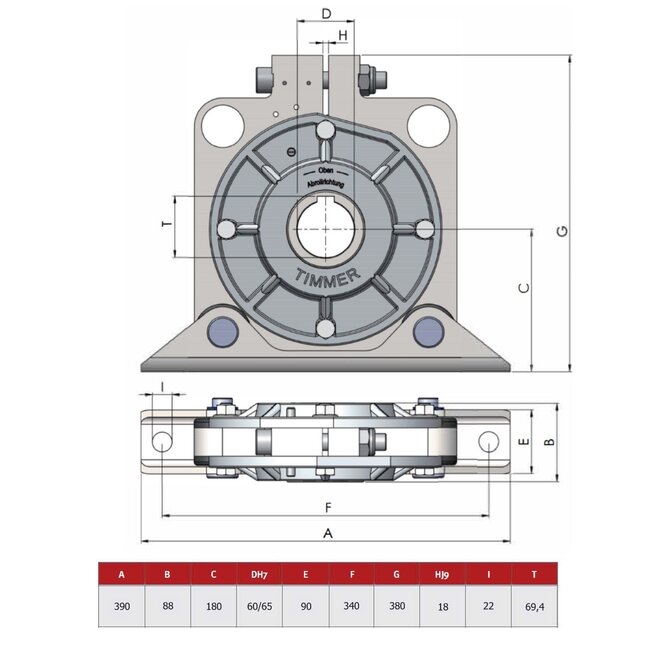

- fixing hole spacing 340 mm
- weight 37 kg
