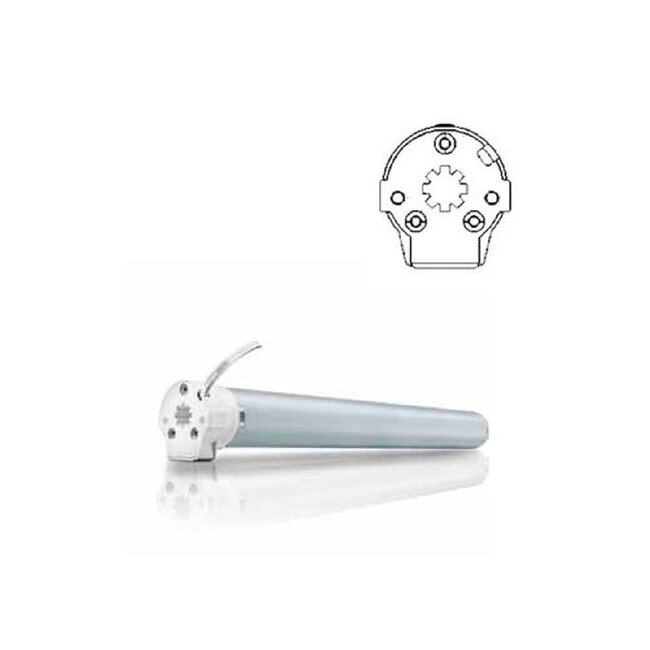

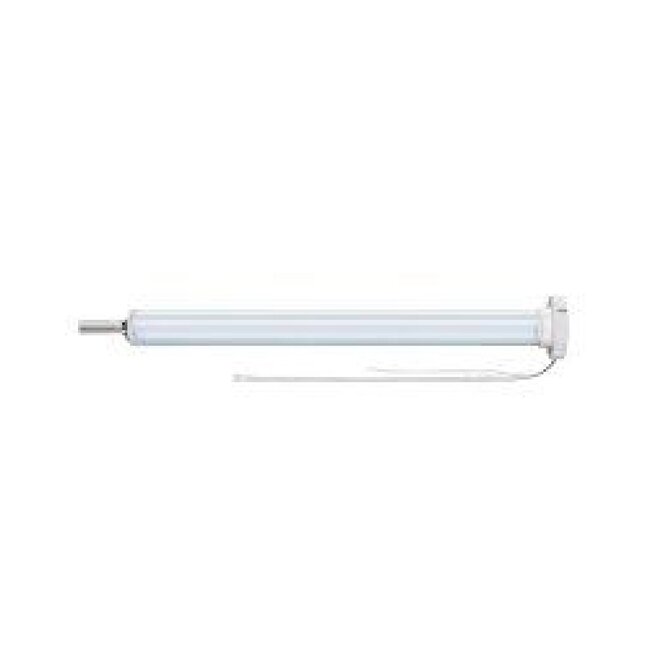

Somfy Roll Up 28 WT 24VDC tubular motor

- power supply 24V DC (RGE 8)
- nominal torque 0.8 Nm
- speed 30 rpm
- protection index IP 30
- diameter 28 mm
- length unpacked 293 mm

- a stronger replacement for the LT28 1000040 (1000039 Cam)
- higher torque for wider application +15% compared to LT28

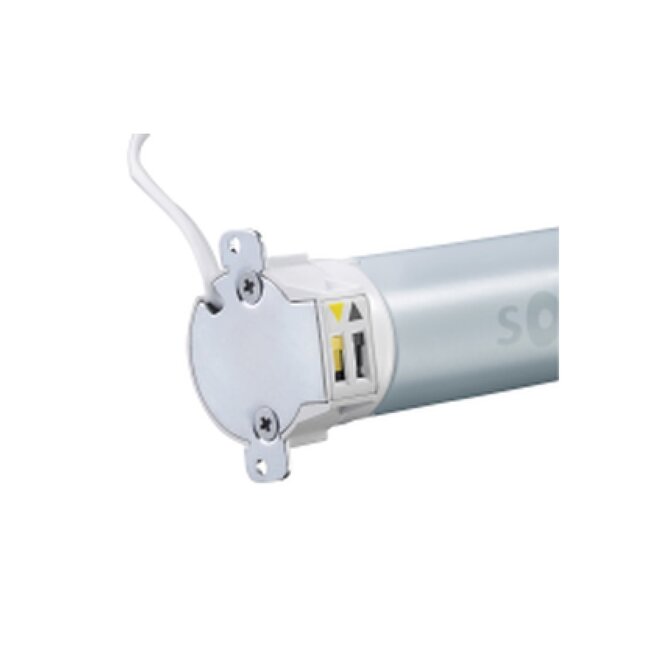

- end positions easily adjusted with switches on motor head
- 30cm supply wire with JST plug and extension cable of 220cm
- available for different mounting
- with Pin (1002832)

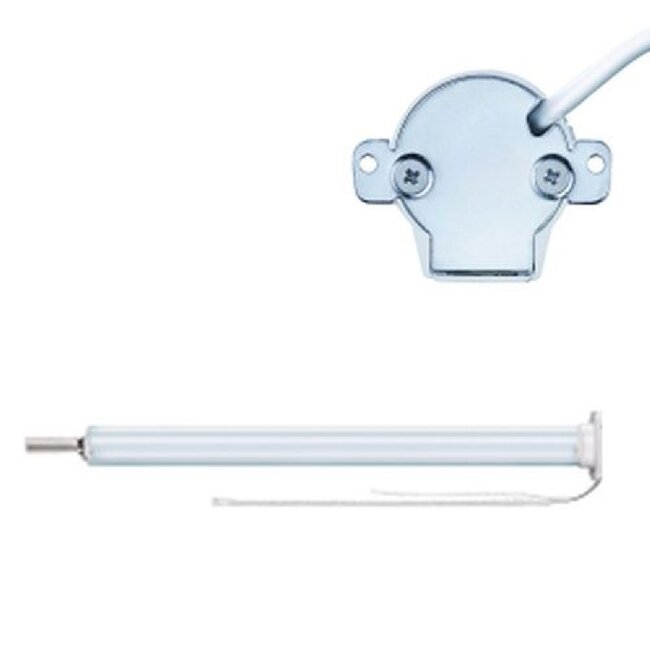

- mounting plate (ears) (1002833)
- star cup (1002834)
- order carrier separately, ref 9018478 for standard tube 28mm
- same adaptations as Roll up 28 RTS
