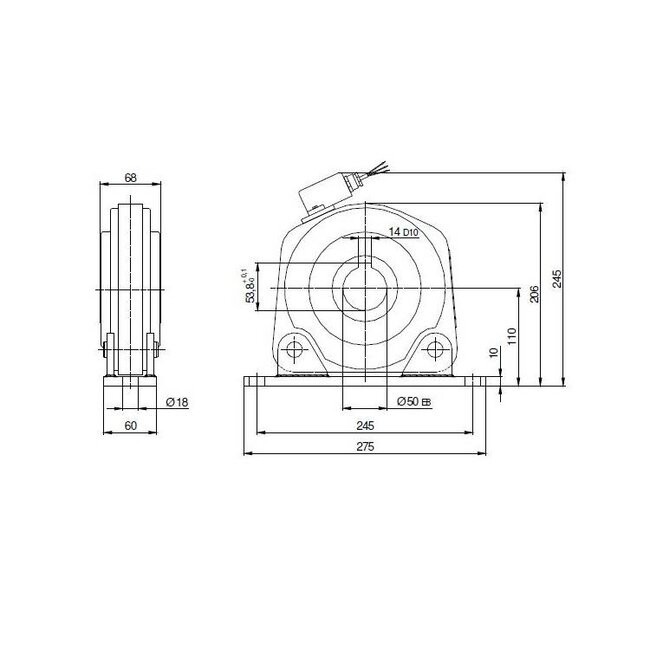

GMF Unwind protection FV 110 and FV 110 E

A roll-off protection functions like a normal bearing, on the other side of the roller shutter shaft than where the tube motor is mounted. If something in or on the tube motor fails, the Roller shutter will unwind at high speed, the roll-off protection intervenes and will block the Axle/Shaft, bringing the Roller shutter to a stop.

- Rollover protection PV 110 is without electrical safety contact
- roll-down protection FV 110 E is with electrical safety contact
- maximum torque 1135 Nm
- blocking torque 2906 Nm
- torque (rpm) 15 rpm
- shaft diameter Ø 50 mm
- fixing hole spacing 245 mm
- weight 11 kg

This roll-off safety device FV 110 has been tested and inspected by the TÜV SÜD industry service and received the corresponding certification. They thus comply with European standards DIN EN 12604 / DIN EN 12605
(Issued Aug. 2000 ) and GS - BE - 04 (Issued Jan. 2001).
The roll-off safety guards have a damping system that considerably reduces the catching moment.
considerably.
