GMF Unwind protection FV 360 and FV 360 E

A roll-off protection functions like a normal bearing, on the other side of the roller shutter shaft than where the tube motor is mounted. If something in or on the tubular motor fails, the roller shutter will unwind at high speed, the roll-off protection intervenes and will block the Axle/Shaft, bringing the roller shutter to a stop.

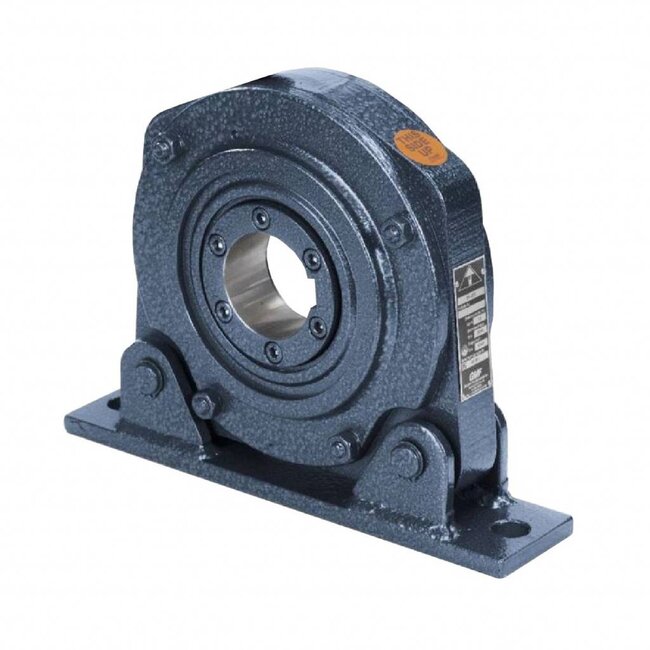

- Rollover protection PV 360 is without electrical safety contact

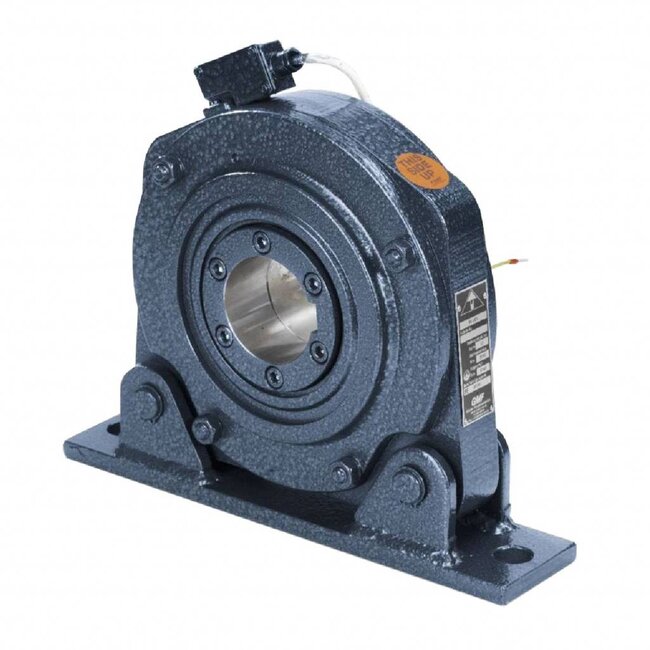

- roll-down protection FV 360 E is with electrical safety contact
- maximum torque 3579 Nm
- blocking torque 7695 Nm
- torque (rpm) 9 rpm

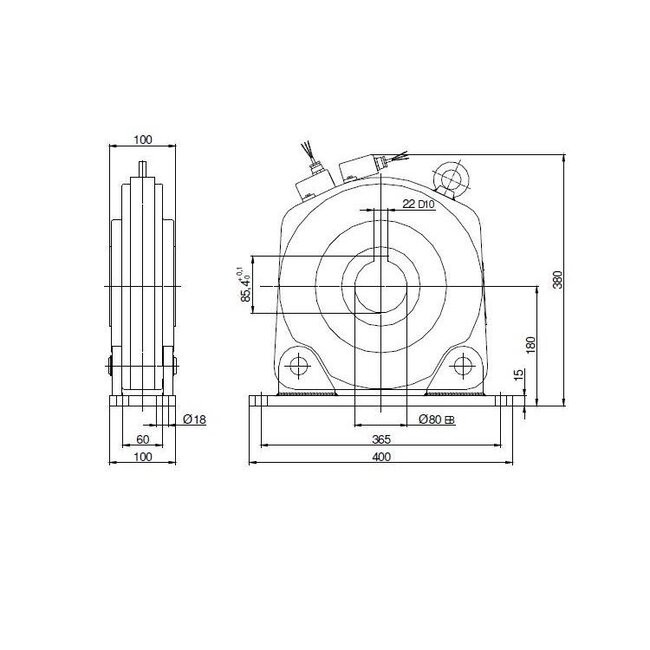

- shaft diameter Ø 80 mm
- fixing hole spacing 365 mm
- weight 40 kg

This roll-off guard FV 360 has been tested and inspected by the TÜV SÜD industry service and received the corresponding certification. They thus comply with European standards DIN EN 12604 / DIN EN 12605
(Issued Aug. 2000 ) and GS - BE - 04 (Issued Jan. 2001).
The roll-off safety guards have a damping system that considerably reduces the catching moment.
considerably.
