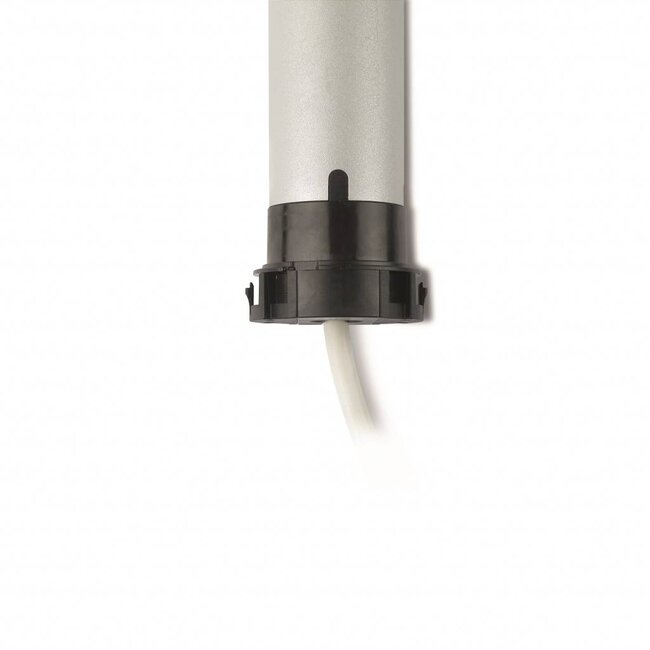

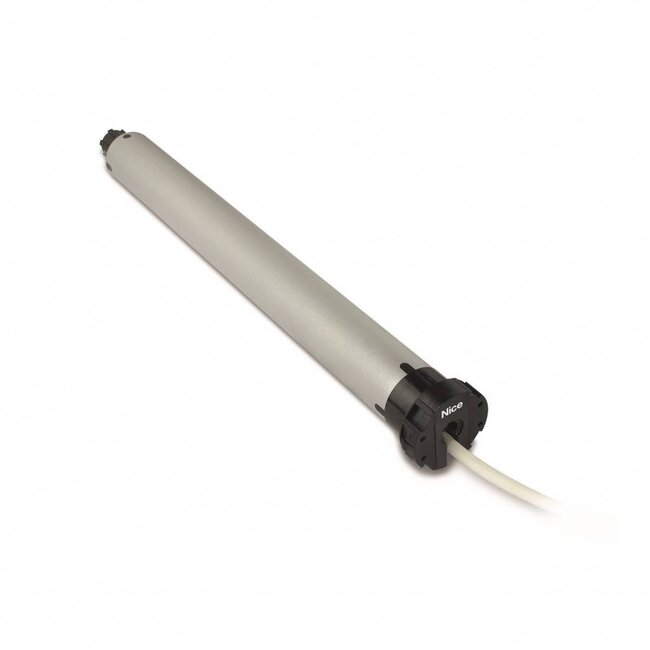

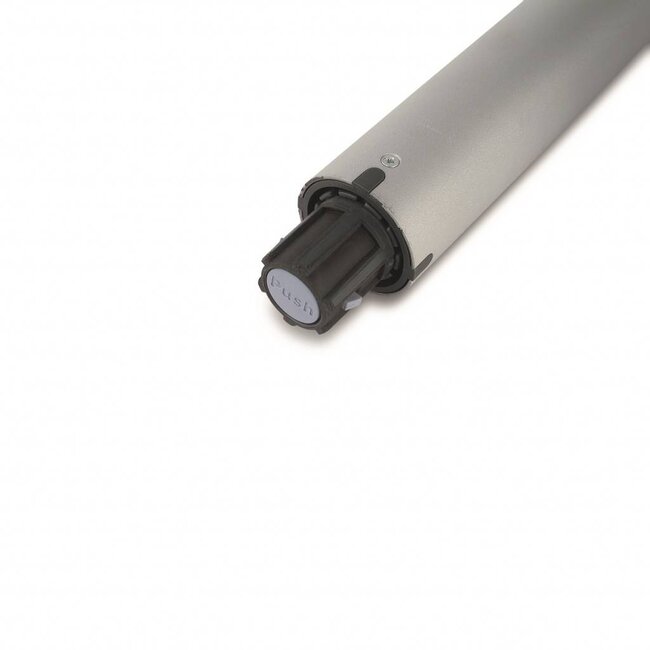

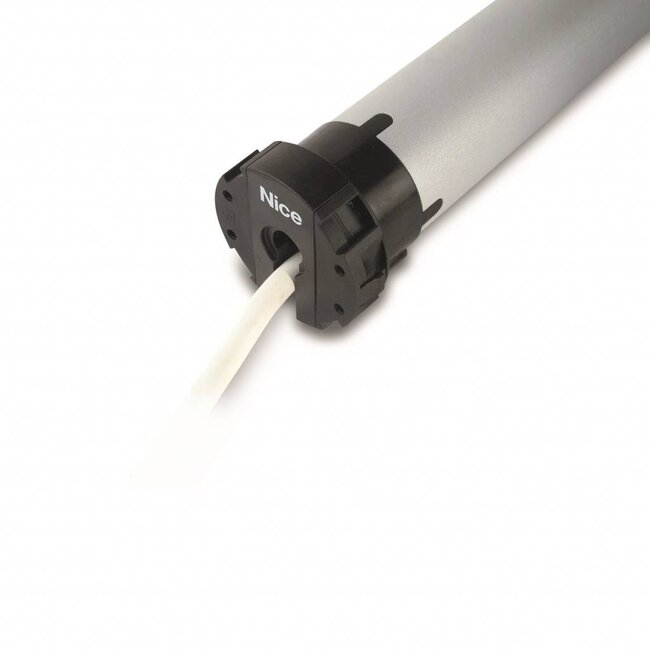

Nice Era Mat MA tubular motor with electronic limit switch adjustment, integrated receiver and TTBus technology

Easy adjustment of the limit switch using push-button adjustment and via the hand-held transmitter or the external programming units O-View TT and TTPRO
If an error is made during adjustment, programming starts again from the previous level without reprogramming all settings programmed up to that point.
Thanks to Nice TTBus 3-wire technology, the tubular motor can be controlled by low voltage, simple and intuitive wired connection to climate sensors without an external control box or Handheld transmitter.
The tube motor can be connected in parallel without an additional control box.
Maximum precision in the final adjustment in automatic and semi-automatic mode, automatically adjusting the final adjustment when the system stretches or contracts. This technology guarantees precise adjustment and constant optimal closing force, even at high temperatures.
The hindrance detection force is adjustable and protects the Roller shutter motor from damage in case of freezing.
Tube motor particularly suitable for narrow and small roller shutters, motors from 8 Nm with a length of 426 mm, up to larger systems with the 50 Nm and 12 rpm.

- successor of the ForMaxA and NeoMatMA series
- suitable for roller shutters
- electronic final adjustment and integrated receiver
- tubular motor is fitted with obstacle detection
- simple setting of an intermediate position
- Nice M series tubular motor with a diameter of Ø 45 mm
- Motor support and adapter set not included in delivery
- tube motor 230 V/50 Hz
- speed 12 rpm and 17 rpm
- available in 8 to 50 Nm
- 6-core white cable with a length of 2.5 metres
- tubular motor fits in tube with a minimum inner diameter of 50 mm
- not suitable for continuous use

Type Nice Era Mat MA tubular motors
- Nice Era Mat MA 8 Nm - 17 rpm
- Nice Era Mat MA 15 Nm - 17 rpm
- Nice Era Mat MA 30 Nm - 17 rpm
- Nice Era Mat MA 40 Nm - 12 rpm
- Nice Era Mat MA 50 Nm - 12 rpm

Need a new tubular motor for old type starting with XM and ending with 2
- XM150002 - Free Max 8 --> Nice Era Mat MA 8/17
- XM280002 - Free Max 15 --> Nice Era Mat MA 15/17
- XM560002 - Free Max 30 --> Nice Era Mat MA 30/17
- XM560002 - Free Max 40 --> Nice Era Mat MA 40/12
- XM560002 - Free Max 50 --> Nice Era Mat MA 50/12

Need a new tubular motor for old type starting with XM and ending with 3A
- XM090003A - For Max A 5 --> Nice Era Mat MA 8/17
- XM150003A - For Max A 8 --> Nice Era Mat MA 8/17
- XM280003A - For Max A 15 --> Nice Era Mat MA 15/17
- XM560003A - For Max A 30 --> Nice Era Mat MA 30/17
- XM750003A - For Max A 40 --> Nice Era Mat MA 40/12
- XM930003A - For Max A 50 --> Nice Era Mat MA 50/12

Need a new tubular motor for old type starting with NM and ending with the letters MA
- NM15000MA - Neo Mat MA 8/16 --> Nice Era Mat MA 8/17
- NM19000MA - Neo Mat MA 10/30 --> Nice Era Mat MA 15/17
- NM28000MA - Neo Mat MA 15/16 --> Nice Era Mat MA 15/17
- NM33000MA - Neo Mat MA 17/30 --> Nice Era Mat MA 30/17
- NM46000MA - Neo Mat MA 25/16 --> Nice Era Mat MA 30/17
- NM56000MA - Neo Mat MA 30/16 --> Nice Era Mat MA 30/17
- NM65000MA - Neo Mat MA 35/12 --> Nice Era Mat MA 40/12
- NM90000MA - Neo Mat MA 45/12 --> Nice Era Mat MA 50/12
- NM93000MA - Neo Mat MA 50/12 --> Nice Era Mat MA 50/12

When replacing a Nice tube motor whose reference starts with NM, it is necessary to also replace your motor support and adapter set.
