Nice Era Mat SA tubular motor with electronic limit switch adjustment, integrated receiver and TTBus technology

Easy adjustment of the limit switch using push-button adjustment and via the hand-held transmitter or the external programming units O-View TT and TTPRO
If an error is made during adjustment, programming starts again from the previous level without reprogramming all settings programmed up to that point.
Thanks to Nice TTBus 3-wire technology, the tubular motor can be controlled by low voltage, simple and intuitive wired connection to climate sensors without an external control box or Handheld transmitter.
The tube motor can be connected in parallel without an additional control box.
Maximum precision in the final adjustment in automatic and semi-automatic mode, automatically adjusting the final adjustment when the system stretches or contracts. This technology guarantees precise adjustment and constant optimal closing force, even at high temperatures.
The hindrance detection force is adjustable and protects the Roller shutter motor from damage in the event of freezing.
Tubular motor particularly suitable for small Roller shutters, motors of 6 and 10 Nm with a length of 402 mm.

- suitable for roller shutters
- electronic final adjustment and integrated receiver
- tubular motor is equipped with obstacle detection
- simple setting of an intermediate position

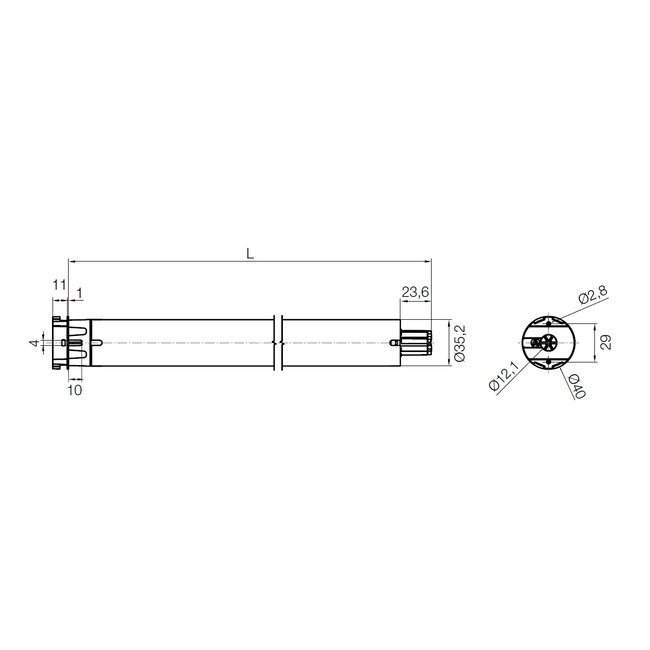

- Nice S series tubular motor with a diameter of Ø 35 mm
- Motor support and adapter set not included in delivery
- tube motor 230 V/50 Hz
- speed 11 rpm
- available in 6 and 10 Nm
- 3-core white cable with a length of 2.5 metres
- tubular motor fits in tube with a minimum inner diameter of 40 mm
- not suitable for continuous use

Type Nice Era Mat SA tubular motors
- Nice Era Mat SA 6 Nm - 11 rpm
- Nice Era Mat SA 10 Nm - 11 rpm
