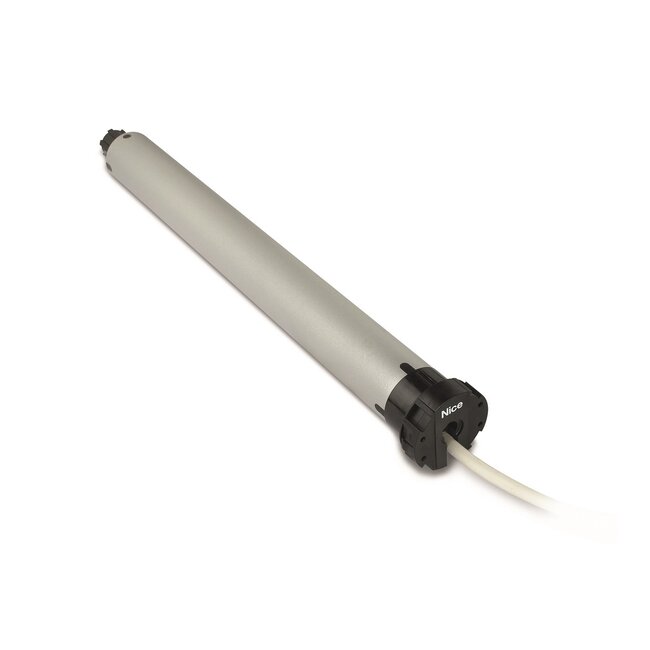

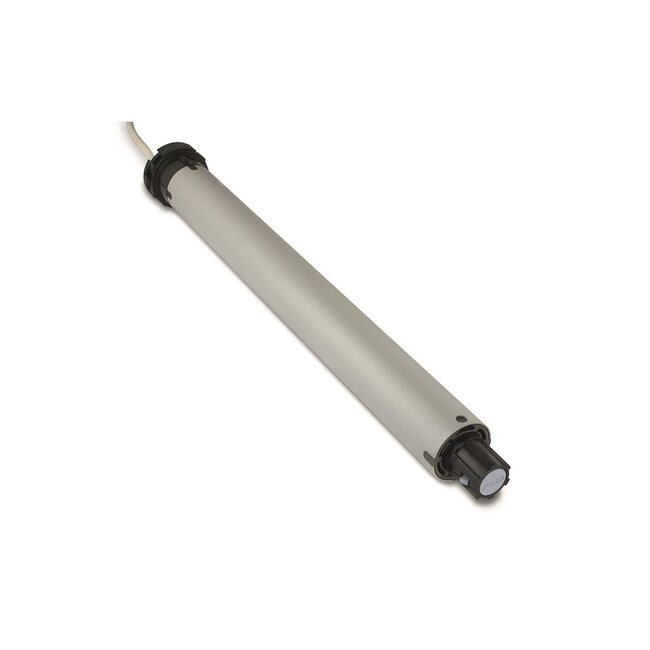

Nice Era Star MA tubular motor with electronic limit switches and obstacle detection

Simple electronic limit switch adjustment possible in three ways, manual, semi-automatic or automatic. During adjustment, the roller shutter motor provides feedback through roller shutter movement. The Nice Era Star MA tubular motor is equipped with intelligent obstacle detection in both the entire up and down direction. Thanks to hindrance detection, the motor is protected in case of freezing, without damaging the motor or the roller shutter. Sufficient resistance against burglary when rigid connections are used.
Tubular motor particularly suitable for narrow and small roller shutters, motors from 8 Nm with a length of 426 mm, up to larger systems with the 50 Nm and 12 rpm.

- successor of the Nice To-Max Pro series
- suitable for roller shutters
- electronic final adjustment
- tubular motor is fitted with obstacle detection

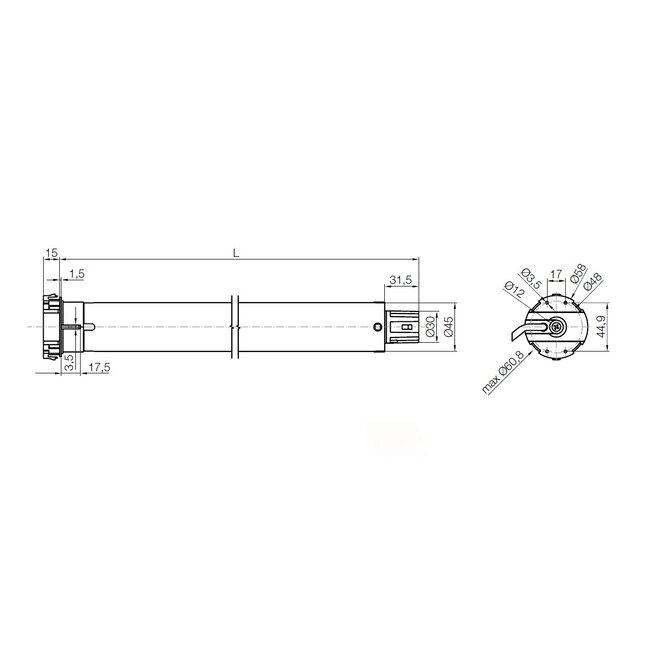

- Nice M series tubular motor with a diameter of Ø 45 mm
- supplied without motor support and adapter set
- tube motor 230 V/50 Hz
- speed 12 rpm and 17 rpm
- available in 8 to 50 Nm

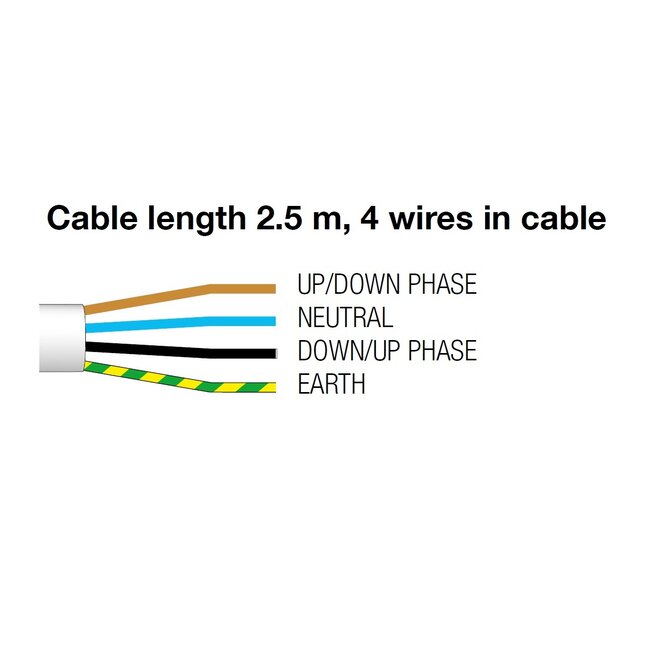

- 4-core white cable with a length of 2.5 metres
- tubular motor fits in tubes with a minimum inner diameter of 50 mm
- not suitable for continuous use

Type Nice Era Mat MA tubular motors
- Nice Era Star MA 8 Nm - 17 rpm
- Nice Era Star MA 15 Nm - 17 rpm
- Nice Era Star MA 30 Nm - 17 rpm
- Nice Era Star MA 40 Nm - 12 rpm
- Nice Era Star MA 50 Nm - 12 rpm

Need a new tube motor for old type starting with XM and ending with 1A:
- XM090001A - To Max A 5 --> Nice Era Star MA 8/17
- XM150001A - To Max A 8 --> Nice Era Star MA 8/17
- XM280001A - To Max A 15 --> Nice Era Star MA 15/17
- XM560001A - To Max A 30 --> Nice Era Star MA 30/17
- XM750001A - To Max A 40 --> Nice Era Star MA 40/17
- XM930001A - To Max A 50 --> Nice Era Star MA 50/17

Need a new tube motor for old type starting with NM and ending with the letters SA
- NM15000SA - Neo Star MA 8/16 --> Nice Era Star MA 8/17
- NM28000SA - Neo Star MA 15/16 --> Nice Era Star MA 15/17
- NM46000SA - Neo Star MA 25/16 --> Nice Era Star MA 30/17
- NM56000SA - Neo Star MA 30/16 --> Nice Era Star MA 30/17
- NM65000SA - Neo Star MA 35/12 --> Nice Era Star MA 40/12
- NM90000SA - Neo Star MA 45/12 --> Nice Era Star MA 50/12
- NM93000SA - Neo Star MA 50/12 --> Nice Era Star MA 50/12

When replacing a Nice tube motor whose reference starts with NM, it is necessary to also replace your motor support and adapter set.
