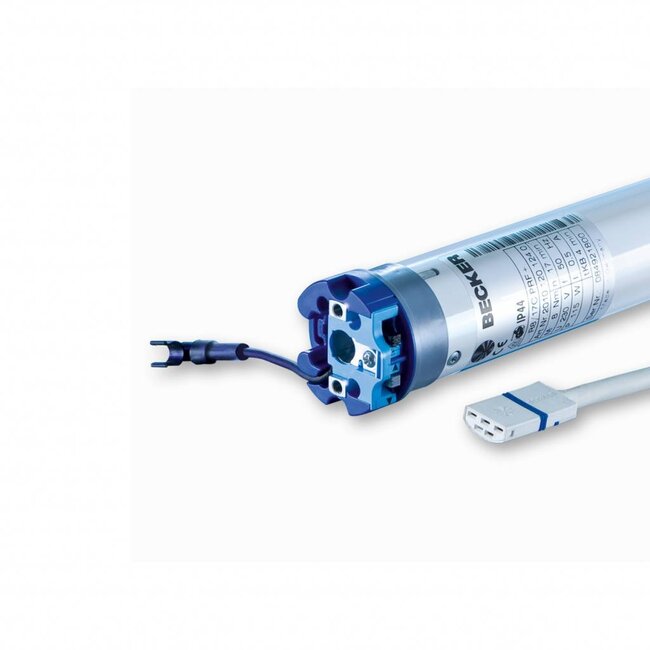

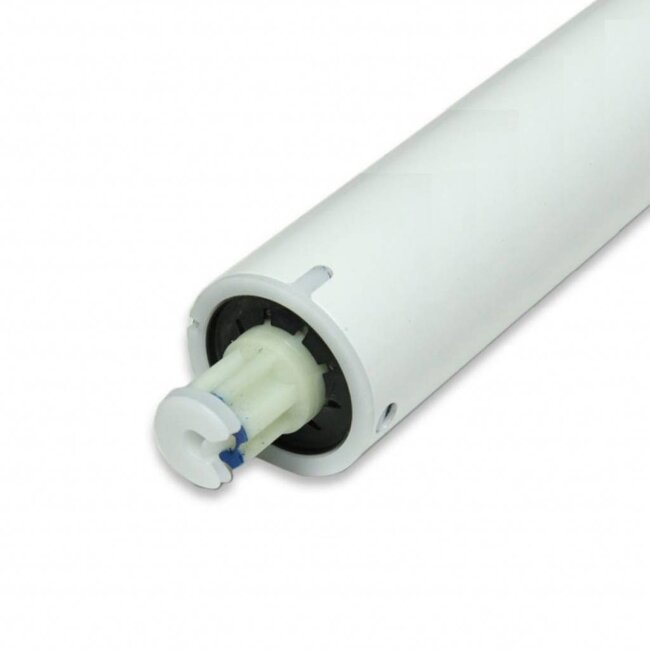

Becker tube motor R..-..-C01 with electronic limit switches and receiver

The classic Becker cordless roller shutter motor with integrated Centronic receiver, long range, wide control possibilities. Tried and tested for years, established in many buildings.

- Tubular motor of the Becker R..-..-C01 series
- supplied without motor support and adapter set
- suitable for drive shafts from Ø 50 mm
- replacement for the R..-..RF(+) & R..-..PRF(+) & R..-..C PRF+ & R..-..C PROF+ series
- available in 8 to 40 Nm
- speed 17 rpm
- integrated radio receiver, compatible with the Centronic control programme
- automatic recognition of end positions when using flexible suspension springs or rigid connection
- sensitive obstacle detection in DOWN direction with automatic reversal
- obstacle detection in UP direction (anti-freeze protection)
- top freeze protection can be additionally activated with automatic roller shutter armour length compensation
- automatic increase of the contact pressure in case of anti-lift-up protection
- motor head can be rewound
- intelligent installation management enables corrections of end positions corrections
- End Position Status Indicator (ESI) signals missing end positions
- simple programming of the end positions with or without fixed stops
- programming of 2 freely selectable intermediate positions possible
- individual, group and central control possible up to 16 transmitters
- soft stop at the top
- dynamic force adaptation in case of roller shutter changes
