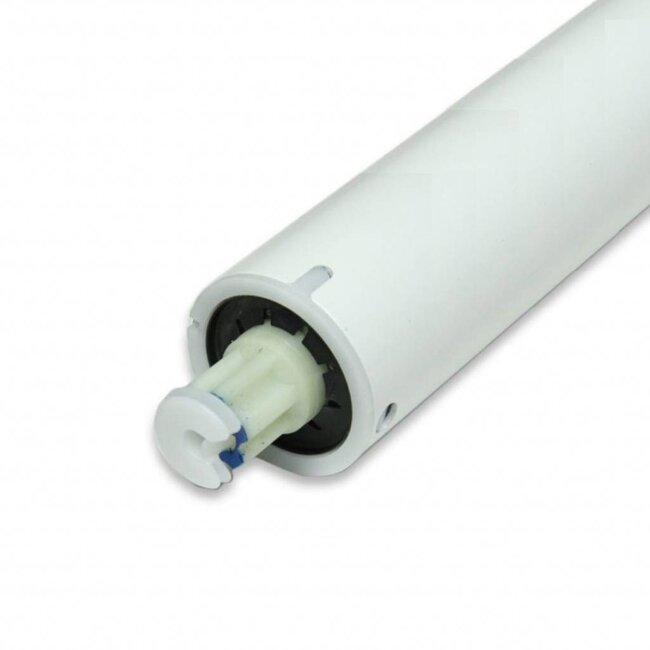

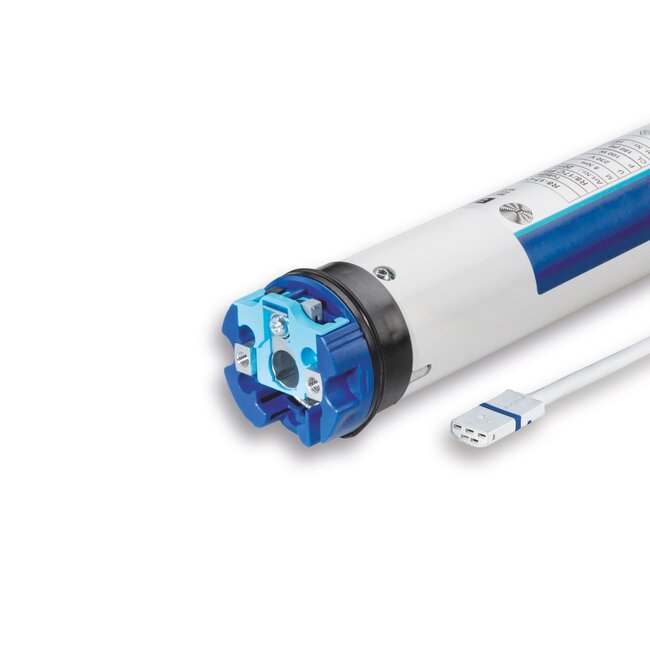

Becker roller shutter motor R..-..C01 PLUS - bi-directional receiver

Bidirectional wireless roller shutter motor with integrated CentronicPlus receiver and precise position and status feedback. Increased range and transmission reliability thanks to mesh technology. Can be operated with modern handheld transmitters with multi-coloured status LEDs.

- Tubular motor of the Becker R..-..-C01 Plus series
- supplied without motor support and adapter set
- suitable for drive shafts from Ø 50 mm
- available in 8 to 40 Nm
- speed 17 rpm
- integrated bi-directional receiver, compatible with the Centronic PLUS control programme
- mesh technology ensures powerful networking of all systems
- dynamic torque adjustment, the Motor automatically and continuously adjusts the required torque
- automatic final adjustment when using flexible suspension springs or rigid shaft connections
- motors can be switched in parallel
- sensitive obstacle detection in DOWN direction with automatic reversal
- blockage detection in UP direction in case of freezing or torque increase
- top freeze protection can be additionally activated with automatic compensation of shutter armour length
- automatic increase of the pressure force in the case of upward extension
- intelligent installation management enables corrections of end positions corrections
- end position status indicator (ESI) signals missing end positions
- simple programming of the end positions with or without fixed stops
- Control possible with push-button pulse
- Motor can be operated with both Cenbtronic and Centronic PLUS transmitters
- the drive transmits position, blocking and other status information to a Centronic PLUS transmitter
- compatible with sun/wind/rain sensors for maximum convenience
- two freely selectable intermediate positions can be programmed
- individual, group and central control possible up to 16 transmitters
- soft-stop at the top
- integrated Timer can be activated via MemoControl transmitter
- dynamic force adjustment in case of roller shutter changes
