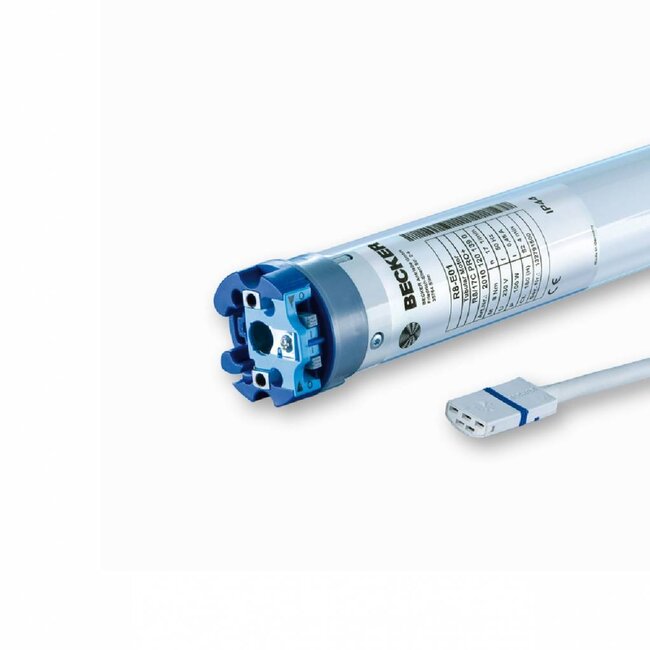

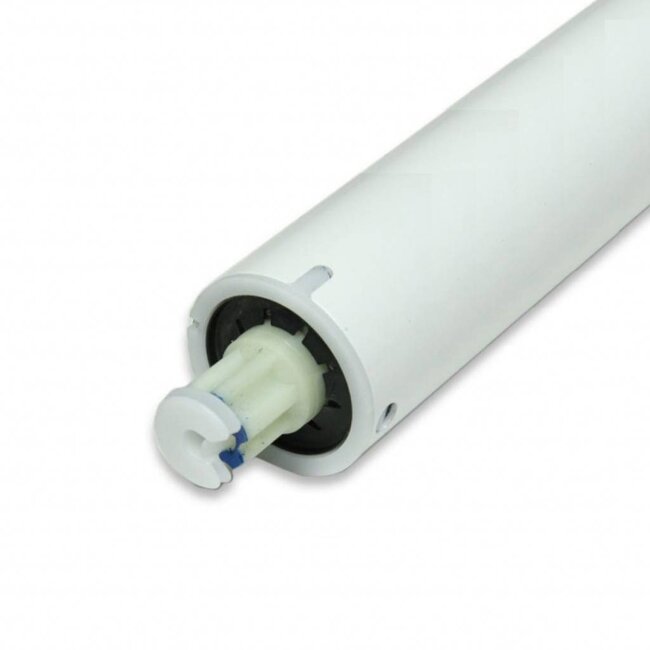

Becker tube motor with electronic limit switches for operating Roller shutters Read more.
Top-class roller shutter drive, from installation to daily use leaves nothing to be desired. The tube motor reverses when it encounters an obstacle and protects the Roller shutter if it freezes. Flexible connection cable to connect. Easy to install without special adjustment cable.
- Tubular motor of the Becker R..-..-E01 series
- supplied without motor support and adapter set
- suitable for drive shafts from Ø 50 mm
- replacement of the series R..-..R(+) & R..-..RP(+)
- available in 8 to 40 Nm
- speed 17 rpm
- electronic final adjustment
- automatic recognition of end positions when using flexible suspension springs or rigid connection
- sensitive obstacle detection in DOWN direction with automatic reversal
- blocking detection in UP direction (anti-freeze protection)
- top freeze protection can be additionally activated with automatic roller shutter armour length compensation
- automatic increase of pressure force in case of upward extension
- fly screen function
- intelligent installation management enables corrections of end positions corrections
- End position Status Indicator (ESI) signals missing end positions
- simple programming of the end positions with or without fixed stops
- end position setting via switch on motor head possible without special setting set
- setting of end positions using a standard control element, e.g. rotary switch
- motor head rewindable
- soft stop at the top
- dynamic force adjustment in case of roller shutter changes
