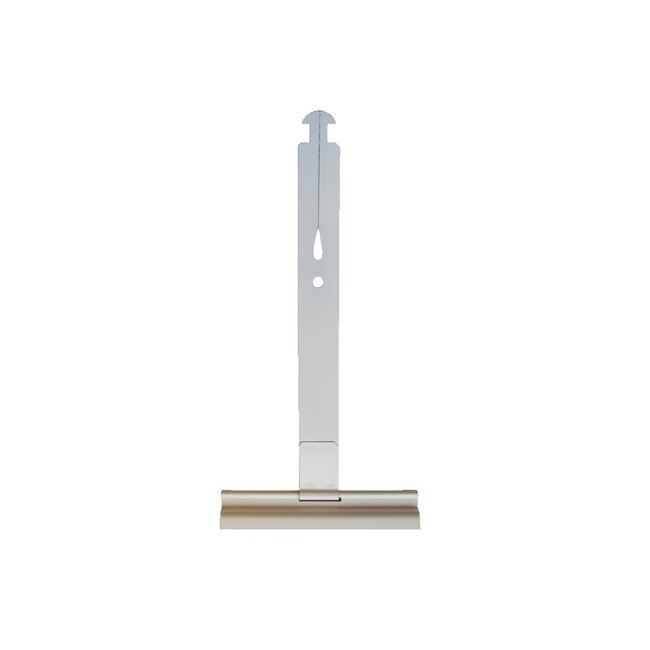

Selve suspension spring with split suspension mini roller shutter

- this suspension spring is also called insert spring, roller shutter holder, mini spring or safety spring
- strip and profile powder-coated to prevent damage to the profiles
- length 174 mm
- length profile = 100 mm

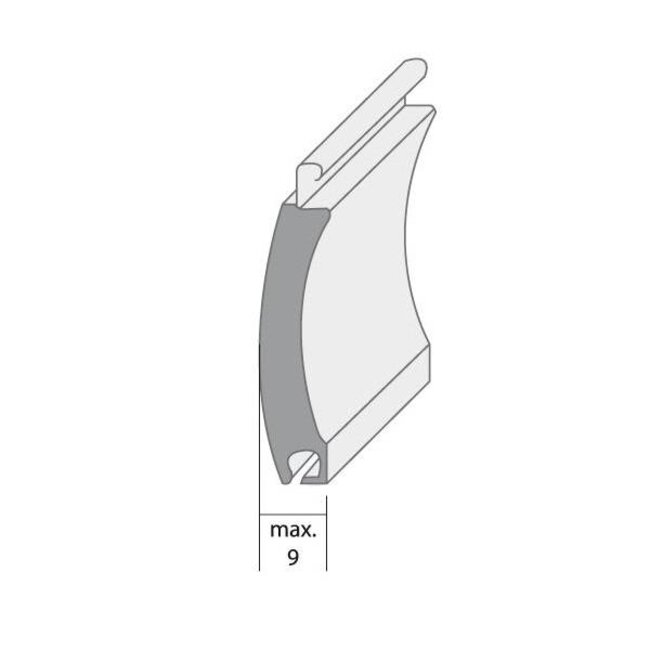

- suitable for mini profiles with a thickness of 7.5 - 9 mm
- spring has a soft coating for extra protection
- fixing via split system or pop rivet

The suspension springs are slid onto the roller shutter's first profile and hooked into the Axle/Shaft's 4-sided holes or screwed to the shaft.

We recommend spacing the suspension springs 30-50 cm apart.

It is always advisable to replace all roller shutter suspension springs to ensure the most even weight distribution possible.

The suspension springs press the roller shutter to the ground when closed and therefore increase the roller shutter's thermal and sound insulation.
