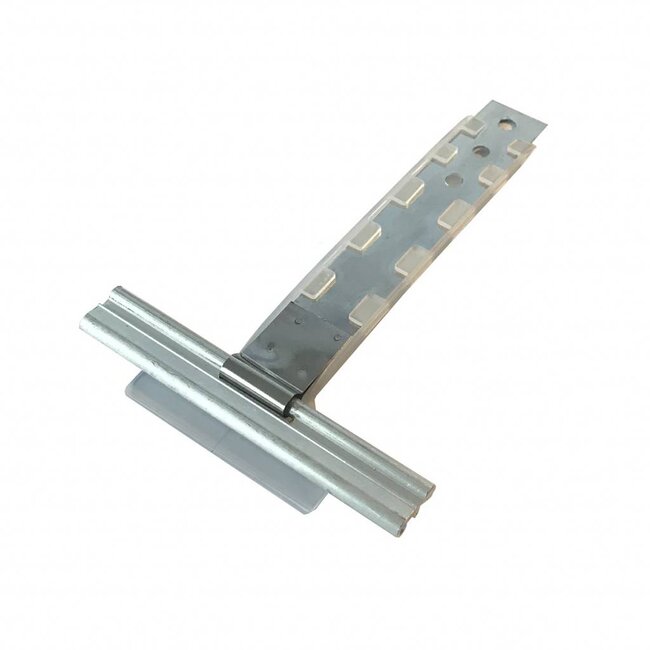

Suspension spring RE1000

- this suspension spring is also called insert spring, roller shutter holder, mini spring or safety spring
- strip with rubber flap to prevent damage to the profiles
- length strip = 130 mm
- length profile = 100 mm

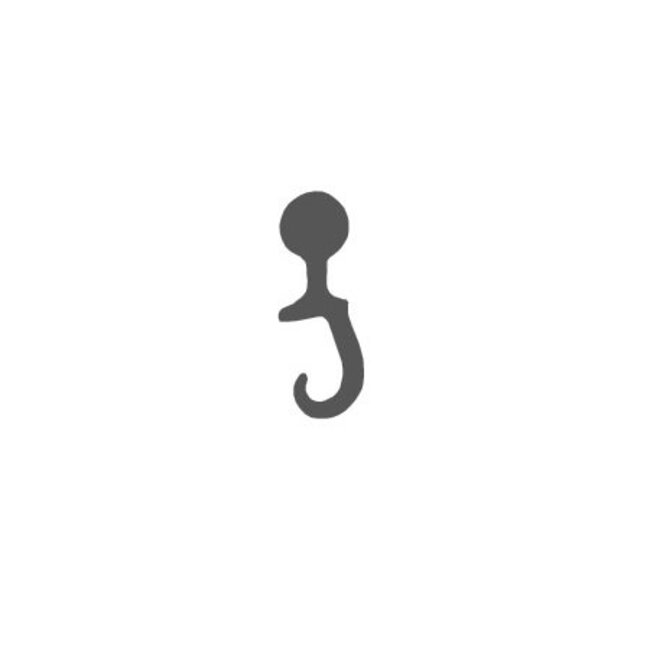

- suitable for RE1000 profile
- attachment by rivet

The suspension springs are pushed onto the first profile of the Roller shutter and hooked into the 4-sided holes of the Axle/Shaft or screwed to the Axle/Shaft.

We recommend spacing the suspension springs 30-50 cm apart.

It is always advisable to replace all roller shutter suspension springs to ensure the most even weight distribution possible.

The suspension springs press the roller shutter to the ground when closed and therefore increase the roller shutter's thermal and sound insulation.
