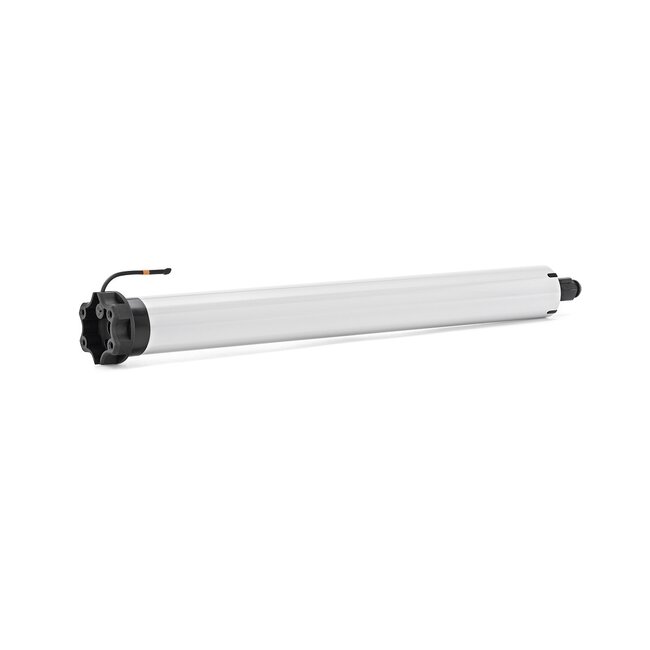

Elero Rolmotion/D+ M-868 SH tubular motor

The new super-quiet Elero Rolmotion tube motor with Soft Start and Soft Stop and a self-learning final adjustment is similar to the Somfy RS100 io tube motor, this whisper-quiet tube motor with a bi-directional receiver works according to a Mesh principle. The advantage of a Mesh principle is that when a roller shutter motor is out of range of the remote control, the other motors that are within range pass on the control signals, thus extending the range of the network. This Elero RolMotion/D+ M-868 SH tubular motor has a StarHead motor head that has been used by Somfy for 20 years. When this tubular motor replaces a Somfy tubular motor, the motor support does not need to be replaced. This tubular motor is available in 6, 10 or 20 Nm. The roller shutter motor measures itself how much force it needs, so when a tubular motor is used that is slightly too strong, this will not have a negative influence on the obstacle detection and the protection against freezing.

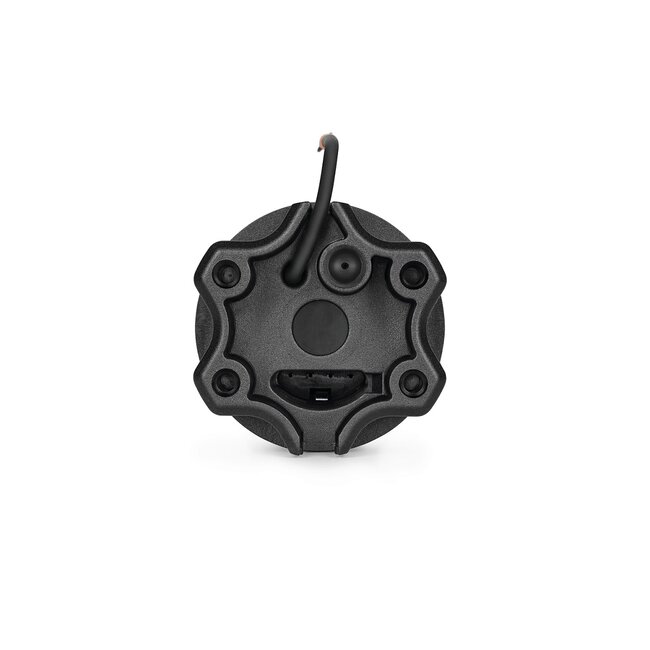

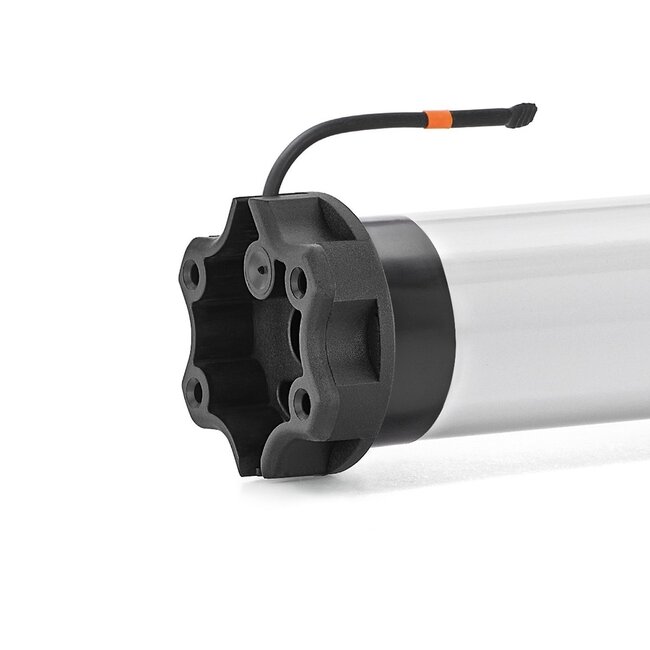

- tubular motor has a StarHead (Somfy) motor head
- equipped with an integrated bi-directional receiver
- 3-metre motor cable with motor plug
- smart power measurement
- two regulated speeds (standard or whisper mode)
- whisper mode is activated by holding down the Up or Down button longer
- long motor running time of 10 minutes
- obstacle detection when opening and closing
- protection against freezing
- self-learning final adjustment
- noiseless Soft Start and Soft Stop function
- Roller shutter must have rigid joints and a fixed upper and lower stop
- plug & play tubular motor

Type Elero Rolmotion/D+ M 868 SH tube motors:
- Elero Rolmotion/D+ M6 868 SH - 6 Nm - 14 rpm - 92 Watt - length 466 mm
- Elero Rolmotion/D+ M10 868 SH - 10 Nm - 14 rpm - 115 Watt - length 466 mm
- Elero Rolmotion/D+ M20 868 SH - 20 Nm - 14 rpm - 184 Watt - length 526 mm
