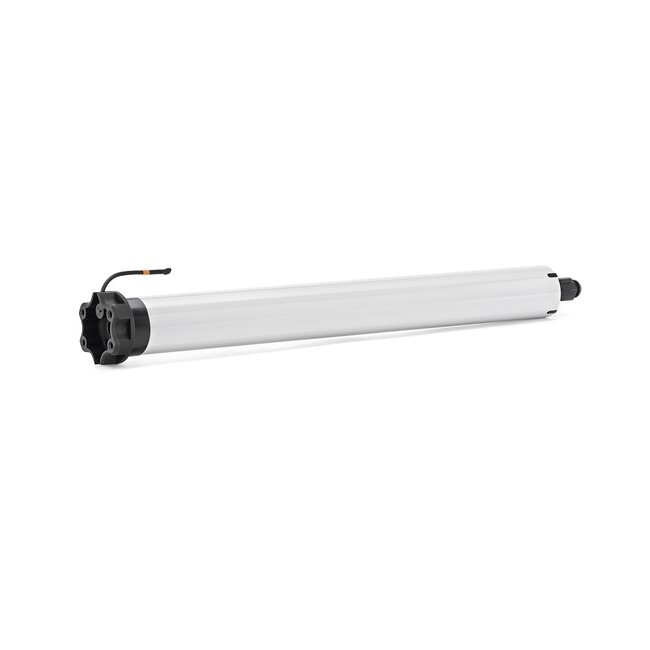

Elero RolMotion M-868 SH tubular motor with receiver

The new super-quiet Elero Rolmotion tube motor with a soft brake is similar to the Somfy RS100 io tube motor, this whisper-quiet tube motor with a bi-directional receiver works according to a Mesh principle. The advantage of a Mesh principle is that when a roller shutter motor is hanging outside the range of the remote control, the other motors that are within the range pass on the control signals, thus extending the range of the network. This Elero RolMotion SH tubular motor has a StarHead motor head that has been used by Somfy for 20 years. When this tubular motor is used to replace a Somfy tubular motor, the motor support does not need to be replaced. This tubular motor is available in 6, 10 or 20 Nm. The roller shutter motor measures itself how much force it needs, so when a tubular motor is used that is slightly too strong, this will not have a negative influence on the obstacle detection and the protection against freezing.

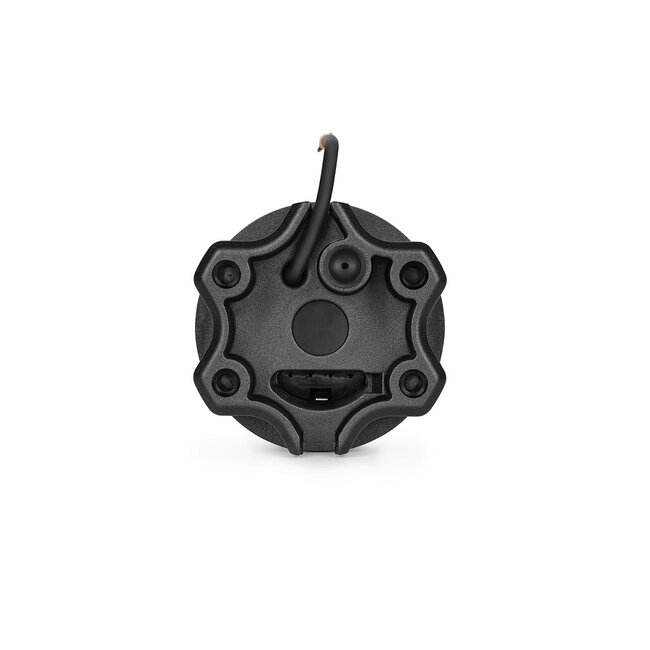

- tubular motor has a StarHead (Somfy) motor head
- Motor is supplied without motor support and adapter set
- equipped with integrated bi-directional receiver
- 3 metre motor cable with motor plug
- smart power measurement
- two regulated speeds (standard or whisper mode)
- whisper mode is activated by holding up or down button longer
- long motor running time of 10 minutes
- obstacle detection when opening and closing
- protection against freezing
- electronic end adjustment with soft stop
- end positions adjustable via mounting cable or Handheld transmitter
- noiseless Soft Start and Soft Stop function
- adjustable ventilation and intermediate positions

Type Elero Rolmotion M 868 SH tube motors:
- Elero Rolmotion M6 868 SH - 6 Nm - 14 rpm - 92 Watt - length 466 mm
- Elero Rolmotion M10 868 SH - 10 Nm - 14 rpm - 115 Watt - length 466 mm
- Elero Rolmotion M20 868 SH - 20 Nm - 14 rpm - 184 Watt - length 526 mm
