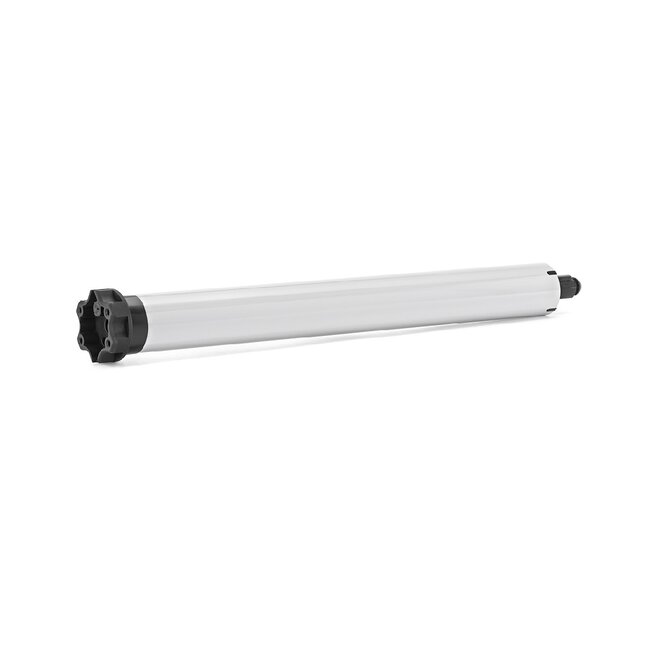

Elero RolMotion M SH super silent tubular motor

The new super-quiet Elero Rolmotion tubular motor with a soft brake is similar to the Somfy RS100 io tubular motor, but without a receiver, so Control with a Switch.
This Elero RolMotion SH tube motor has a StarHead motor head which has been used by Somfy for 20 years. When this tubular motor is used to replace a Somfy tubular motor, the motor support does not have to be replaced. This tubular motor is available in 6, 10 or 20 Nm. The roller shutter motor measures itself how much force it needs, so when a tubular motor is used that is slightly too strong, this will not have a negative influence on the obstacle detection and the protection against freezing.

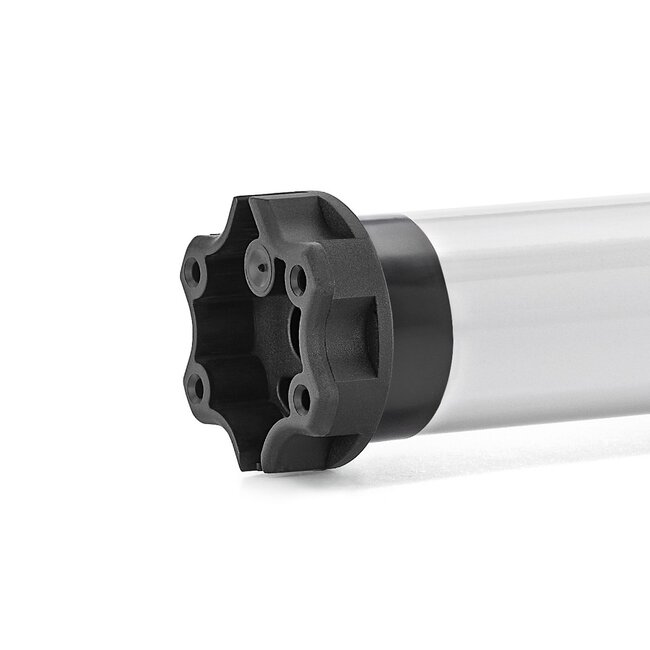

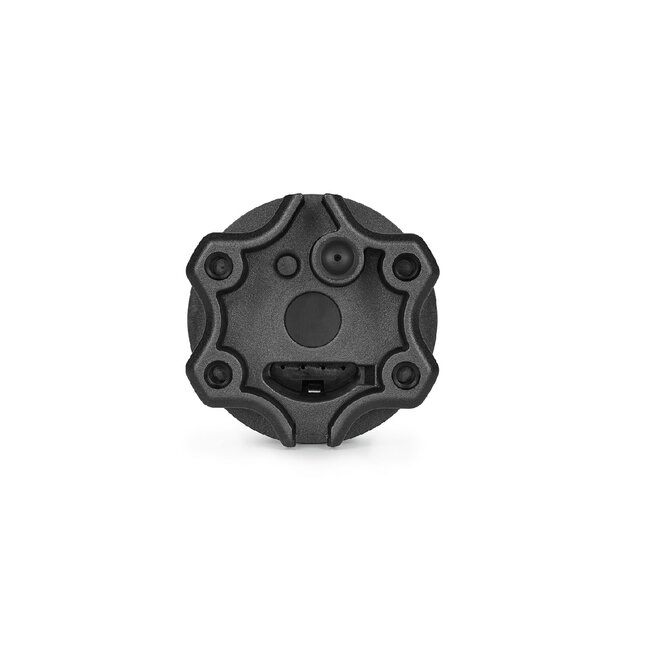

- tubular motor has a StarHead (Somfy) motor head
- Motor is supplied without motor support and adapter set
- 3 metre motor cable with motor plug
- smart power measurement
- two regulated speeds (standard or whisper mode)
- long motor run time of 10 minutes
- obstacle detection on opening and closing
- protection against freezing
- electronic end adjustment with soft stop
- end positions adjustable via mounting cable or adjustment cable
- noiseless Soft Start and Soft Stop function
- adjustable ventilation and intermediate positions

Type Elero Rolmotion M SH tube motors:

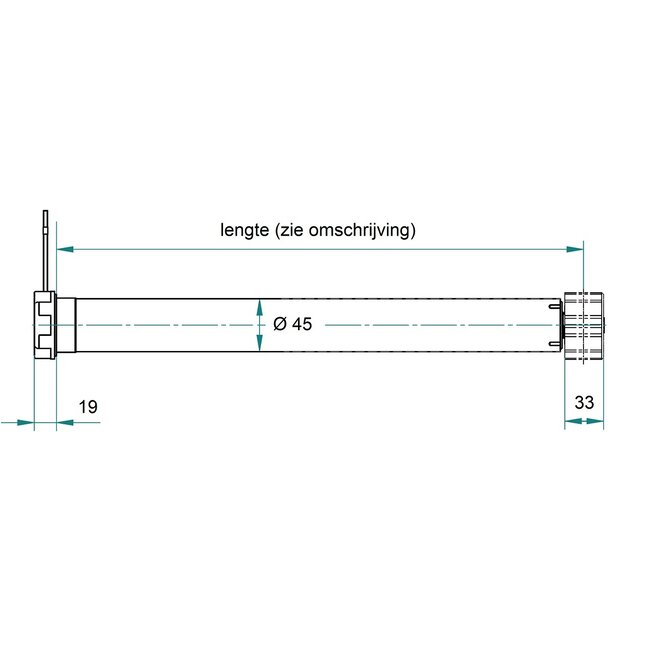

- Elero Rolmotion M6 SH - 6 Nm - 14 rpm - 92 Watt - length 449 mm
- Elero Rolmotion M10 SH - 10 Nm - 14 rpm - 115 Watt - length 449 mm
- Elero Rolmotion M20 SH - 20 Nm - 14 rpm - 184 Watt - length 510 mm
