RolSolar M-868 DC solar tube motor set

This set consists of a motor, solar panel, power cable and battery, you still need to order an adapter set, Motor support and Transmitter.

The solar-powered tube motor is a particularly durable solution for automating your Roller shutters and blinds. RolSolar-868 DC tube motors are self-sufficient, powered by a battery and a solar panel. This makes the system ideally suited for the subsequent automation of roller shutters and blinds. Control is by handheld transmitter or via the Elero Centero Home app with smartphone and tablet.

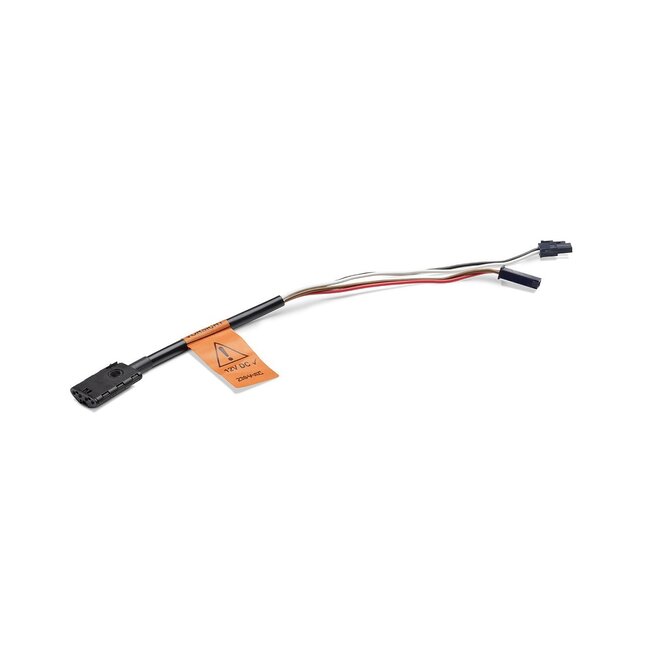

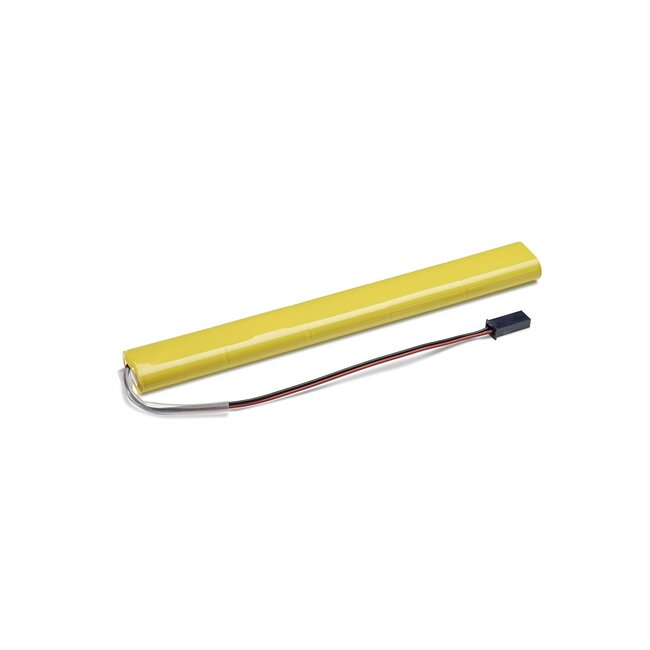

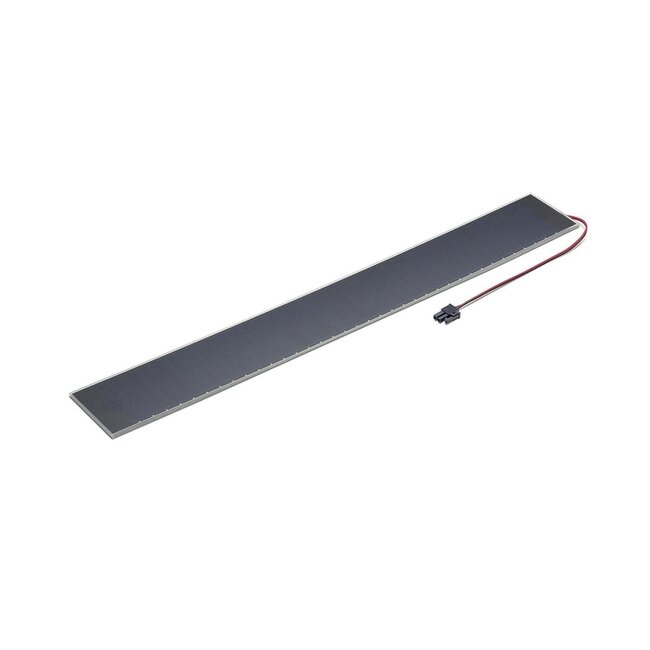

- Including tube motor, solar panel, power cable and battery

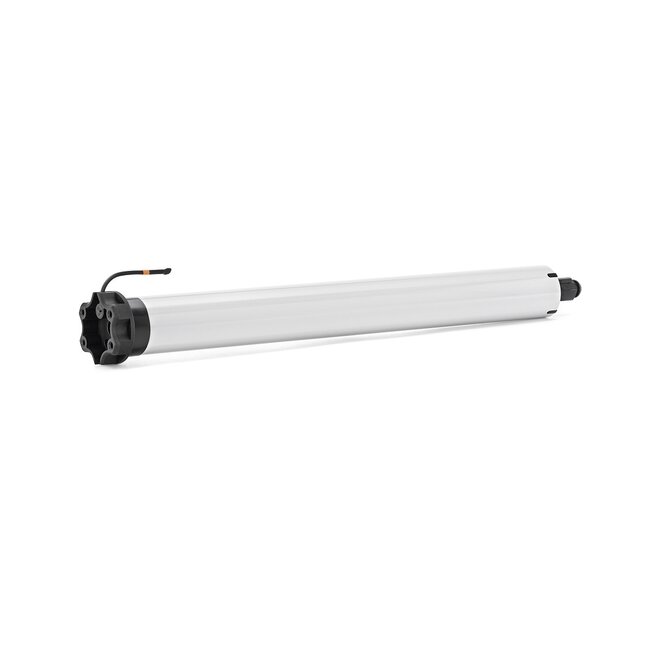

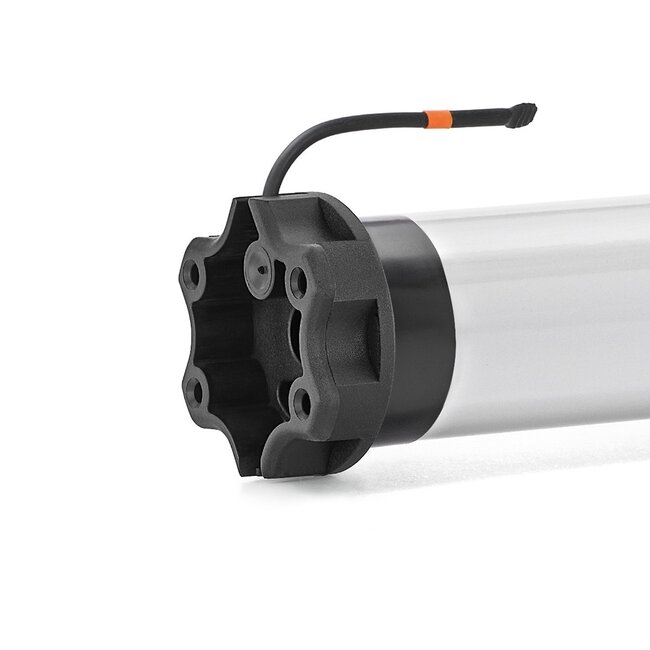

- tubular motor 12 Volt DC
- speed 16 rpm
- available in 10 to 20 Nm
- limit switch range 40 rpm
- protection class IP44
- operating temperature -20 to +60 (°C)
- plug-in connection cable 0.27 metres
- tubular motor fits into tube with a minimum diameter of Ø 50 mm
- suitable for blinds and roller shutters
- self-sufficient drive system (no cabling to the mains required)
- Motor support and adapter set not included in delivery
- suitable for Axle/Shaft with minimum diameter of Ø 50 mm
- electronic final adjustment with soft switch-off
- integrated 868 MHz bi-directional radio receiver
- end positions can be set via the handheld transmitter
- intelligent force measurement
- low-noise soft brake
- sun protection up/down
- not suitable for continuous operation

- Elero RolSolar M-868 10 SH - 10 Nm - 16 rpm - 48 Watt - length 466 mm
- Elero RolSolar M-868 20 SH - 20 Nm - 16 rpm - 72 Watt - length 491 mm
