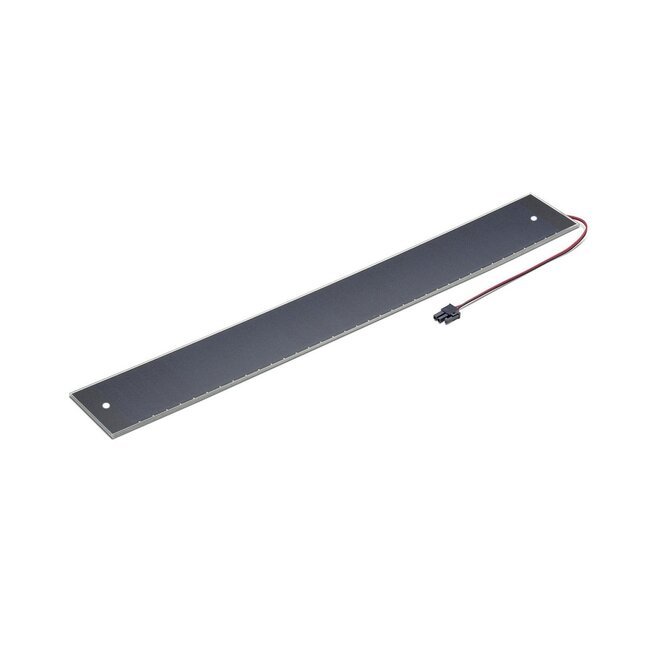

Elero RolSolar solar panel with 2 mounting holes

- very thin solar panel for powering the Elero RolSolar tube motors
- power 3.8 W
- protection class IP64
- available in two versions
- mounting with standard mounting holes, 470x60 mm
- mounting with adhesive strip, 455×60 mm
- position the panel so that it receives as much direct sunlight as possible
- can be placed left or right

Mounting instructions

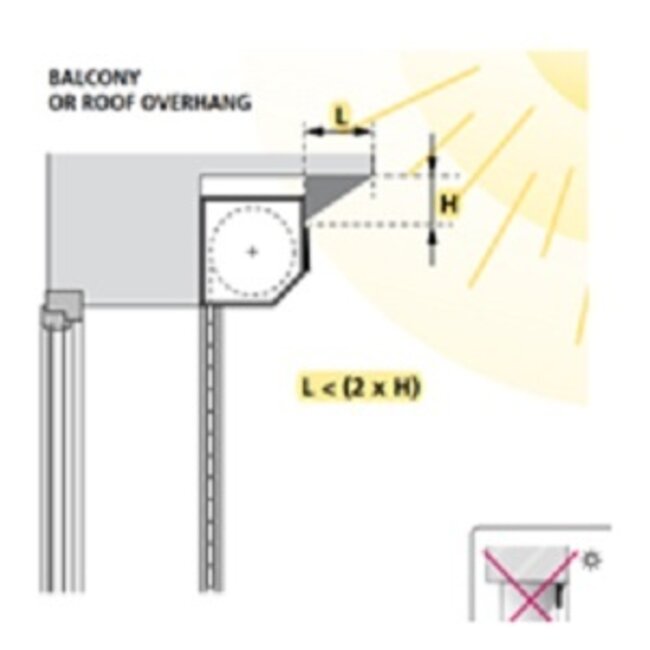

- roof overhangs or similar constructions, ensure that the solar module is facing unobstructed towards the sky. We recommend placing your solar module at a distance from the roof that is at least twice as large as this overhang.

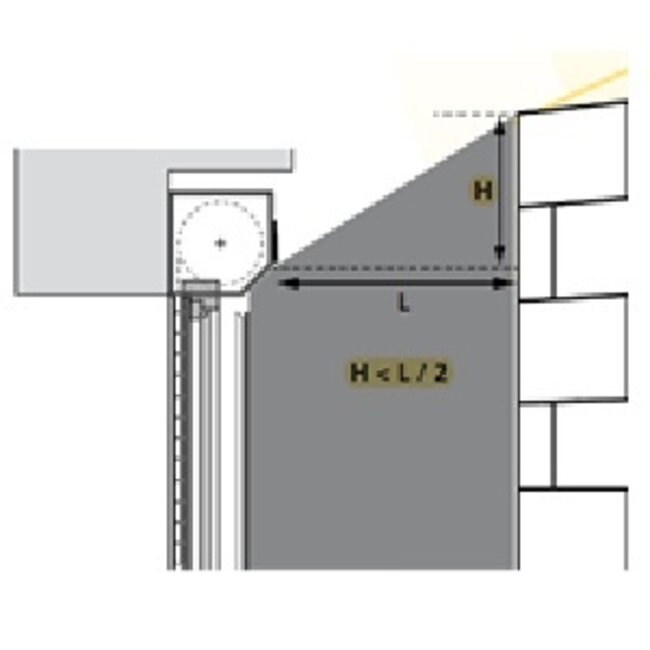

- obstacles opposite the solar panel, obstacles located directly in front of the solar panel, reduce the efficiency of the system. For adequate charging performance, we recommend a minimum distance according to the illustration opposite.

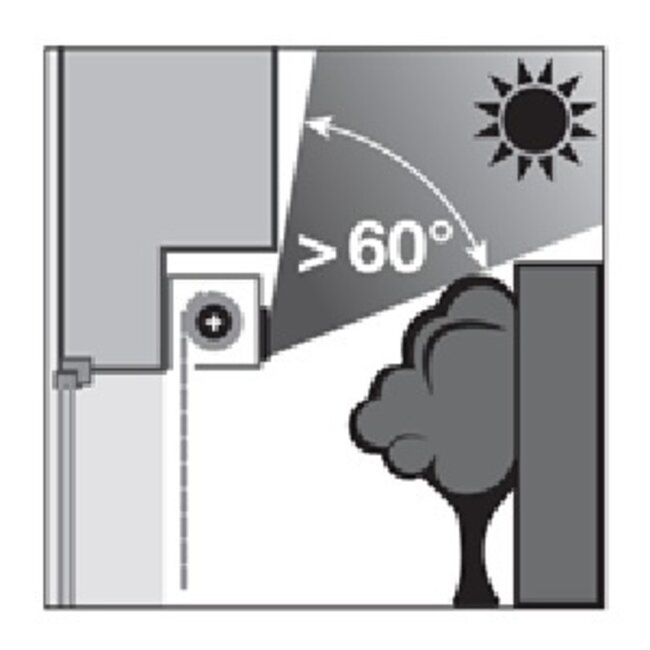

- limited sky view, obstacles and overhangs often combine. In this case, ensure that the clear view angle to the sky is at least 60°.
