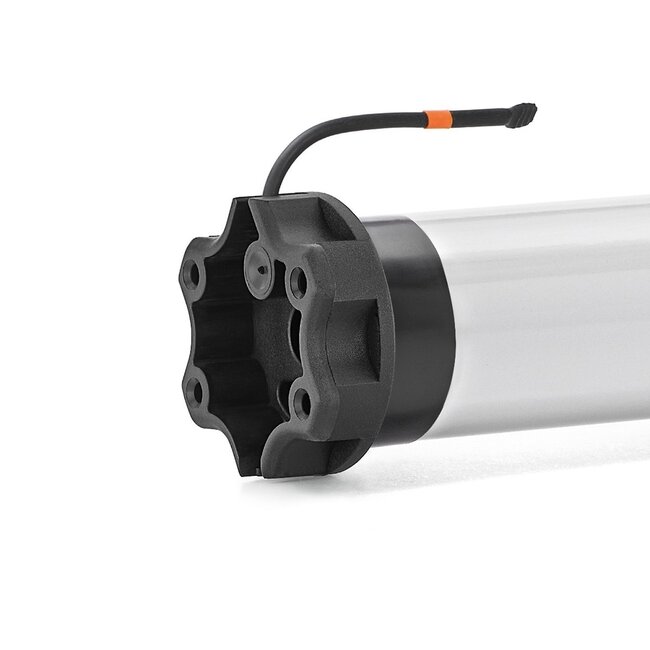

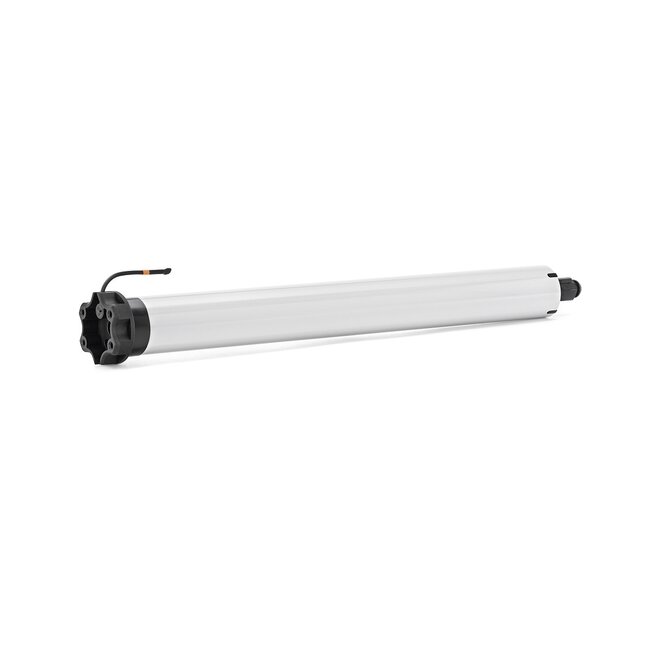

Elero RolTop M-868 tube motor with receiver

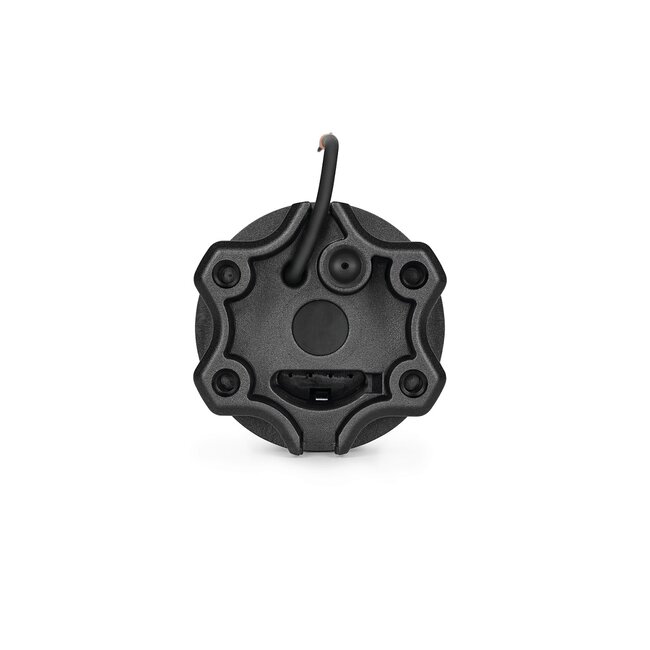

With a diameter of 45 mm and a length starting at 449 mm, the tube motor of the RolTop M series is suitable for roller shutters, roller blinds and blinds. These drives are available from 10 to 50 Nm and 14 rpm. The tubular motor is equipped with an integrated radio receiver. Drives of up to 20 Nm have a soft brake and are suitable for low-noise movement of the blinds. All drives can be installed and adjusted in a time-saving and simple manner. These SH series tubular motors (motor bearing with star-shaped head) fit motor bearings from various other manufacturers, among others.

- suitable for blinds and roller shutters
- supplied without motor support and adapter set

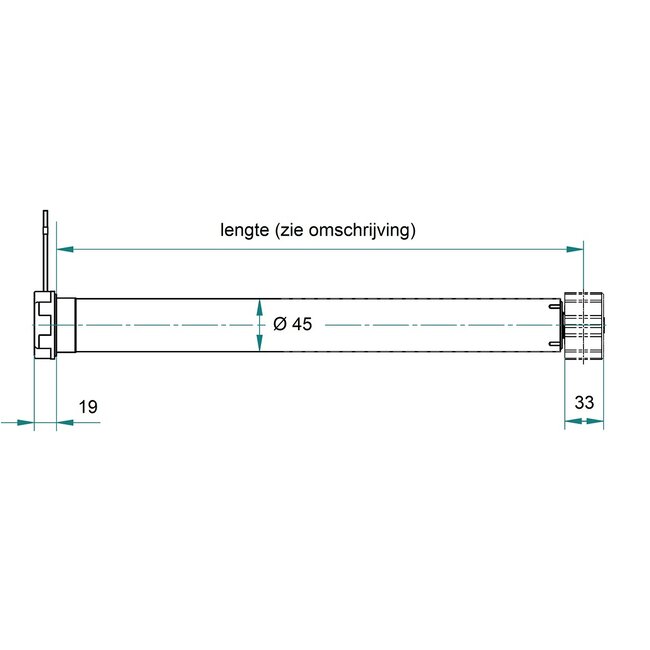

- tubular motor with a diameter of Ø 45
- electronic final adjustment with soft shut-off
- integrated 868 MHz bi-directional radio receiver
- intelligent power measurement
- tubular motor 230 V/50 Hz
- speed 14 rpm
- available in 10 to 50 Nm
- limit switch range 40 rpm
- protection class IP44
- 3-core white cable with a length of 2 metres
- tubular motor fits in tubes with a minimum diameter of Ø 50 mm
- sun protection up/down and free passage
- relief at end positions can be activated
- end positions can be set via the Handheld transmitter
- parallel switching possible
- not suitable for continuous use

Different types of RolTop M-868 SH tube motors
- Elero RolTop M-868 10 SH - 10 Nm - 14 rpm - 140 Watt - length 449 mm
- Elero RolTop M-868 20 SH - 20 Nm - 14 rpm - 200 Watt - length 509 mm
- Elero RolTop M-868 30 SH - 30 Nm - 14 rpm - 200 Watt - length 499 mm
- Elero RolTop M-868 40 SH - 40 Nm - 14 rpm - 270 Watt - length 529 mm
- Elero RolTop M-868 50 SH - 50 Nm - 14 rpm - 300 Watt - length 529 mm
- Elero RolTop M-868 10 K SH - 10 Nm - 14 rpm - 140 Watt - length 374 mm
