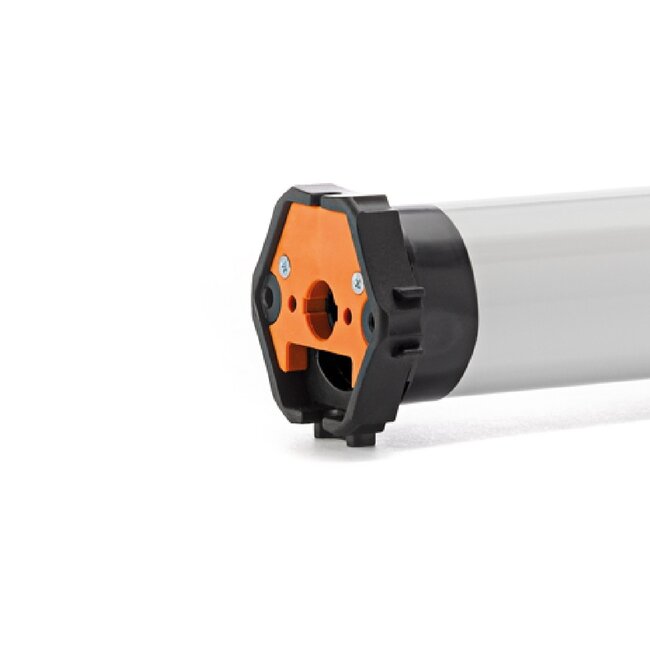

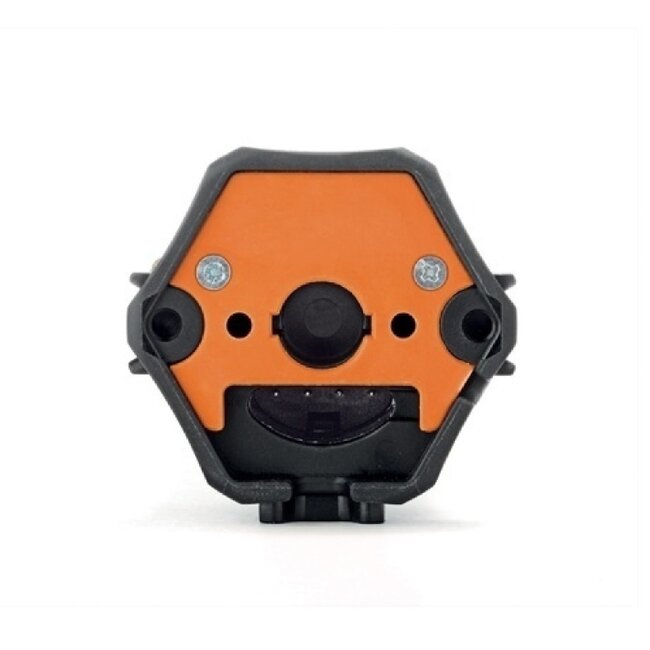

Elero RolTop M tube motor for Roller shutters

Elero RolTop is a cabled tube motor with an electronic final adjustment that must be set using an adjustment cable that must be ordered separately. Simple Control via a Switch or effortless integration into a home automation system with external control modules. Adapter plate allows you to reuse the already installed motor support of an old Elero T9.

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- available with a speed of 14, 23 and 35 rpm
- available in 6 to 50 Nm
- successor of Elero T9 tubular motor (include adapter plate)
- precise electronic adjustment
- Motor can only be adjusted with an optional adjustment cable
- Motor has soft-stop function
- up to 20 Nm motors are equipped with a soft brake
- intelligent force measurement
- fits in tubes with a minimum inner diameter of 50 mm
- supplied as standard with a white 4-wire (VVF) cable, length 2 metres
- not suitable for continuous use

download the manual of the Elero RolTop tube motor here

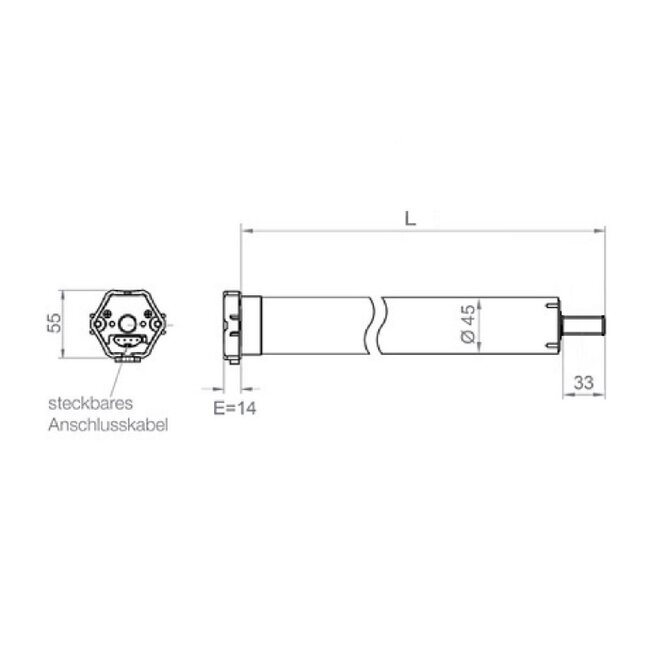

Type Elero RolTop M tube motor
- RolTop M6 - 6 Nm - 14 rpm - length 445 mm - 118 Watt
- Rololtop M10 - 10 Nm - 14 rpm - length 466 mm - 140 Watt
- Roller top M20 - 20 Nm - 14 rpm - length 526 mm - 200 Watt
- Roller top M30 - 30 Nm - 14 rpm - length 516 mm - 200 Watt
- Roller top M40 - 40 Nm - 14 rpm - length 546 mm - 270 Watt
- Roller top M50 - 50 Nm - 14 rpm - length 546 mm - 300 Watt

- Roller top M6/35 - 6 Nm - 35 rpm - length 526 mm - 200 Watt
- Roller top M7/23 - 7 Nm - 23 rpm - length 466 mm - 140 Watt
- Roller top M9/35 - 9 Nm - 35 rpm - length 466 mm - 140 Watt
- Roller top M12/23 - 12 Nm - 23 rpm - length 526 mm - 200 Watt
