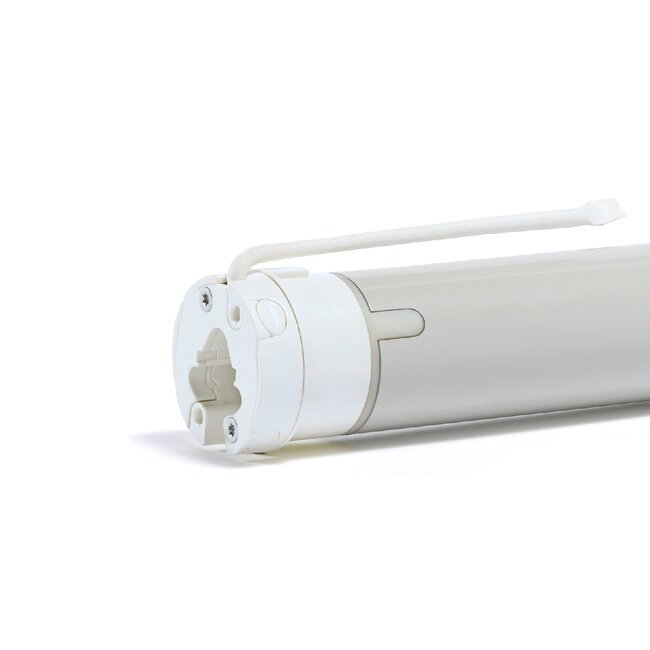

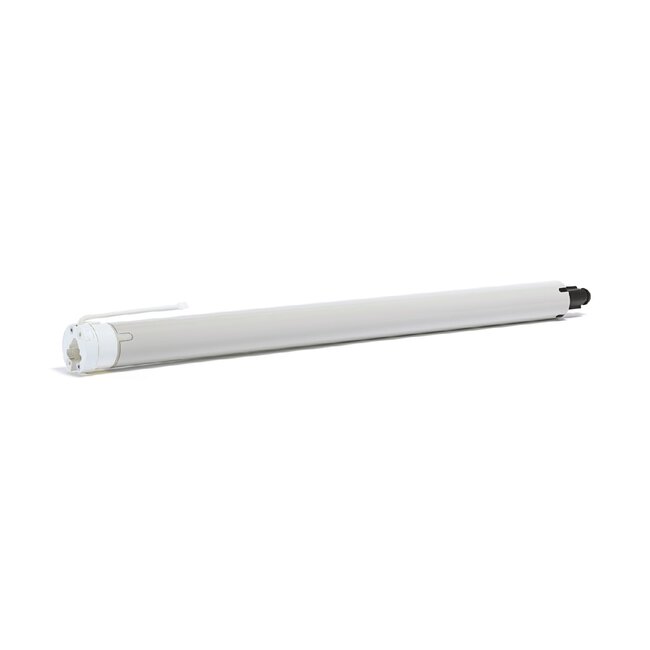

Elero RolTop S-868 tubular motor with receiver

With a diameter of 35 mm, the tube motor of the RolTop S series is suitable for roller shutters, roller blinds and blinds. These drives are available from 3 to 12 Nm and 17 and 30 rpm. The tubular motor is equipped with an integrated radio receiver.

- suitable for blinds and roller shutters
- supplied without motor support and adapter set
- tubular motor with a diameter of Ø 35 mm
- electronic final adjustment
- integrated 868 MHz bi-directional radio receiver
- tubular motor 230 V/50 Hz
- rotation speed 17 and 30 rpm
- available in 5, 8 and 12 Nm
- limit switch range 40 rpm
- protection class IP44
- 3-core white cable with a length of 2 metres
- tubular motor fits into tube with a minimum diameter of Ø 40 mm
- end positions can be set via the Handheld transmitter
- not suitable for continuous use

Different types of RolTop S-868 tube motors
- Elero RolTop S-868 5 - 5 Nm - 30 rpm - 175 Watt - length 545 mm
- Elero RolTop S-868 8 - 8 Nm - 17 rpm - 175 Watt - length 545 mm
- Elero RolTop S-868 12 - 12 Nm - 17 rpm - 175 Watt - length 545 mm
