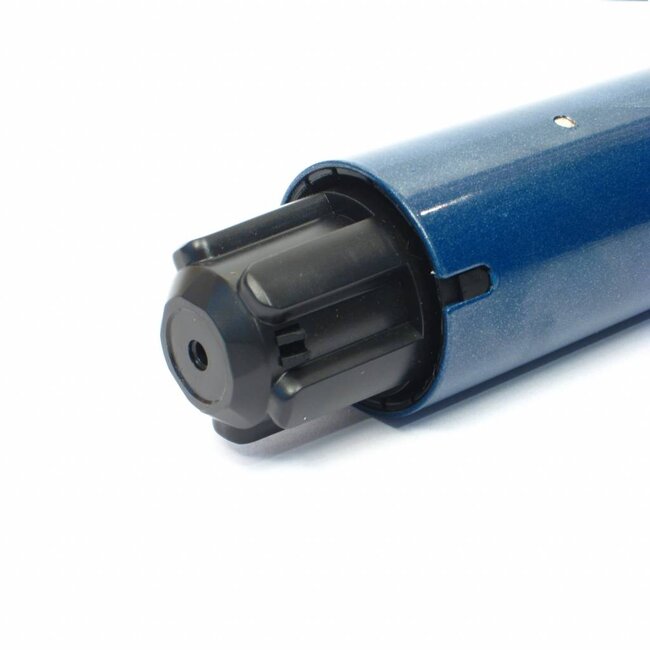

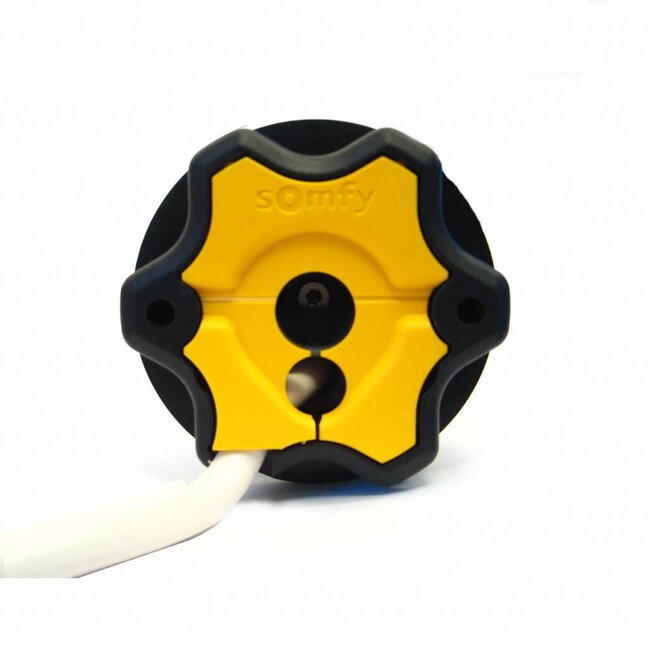

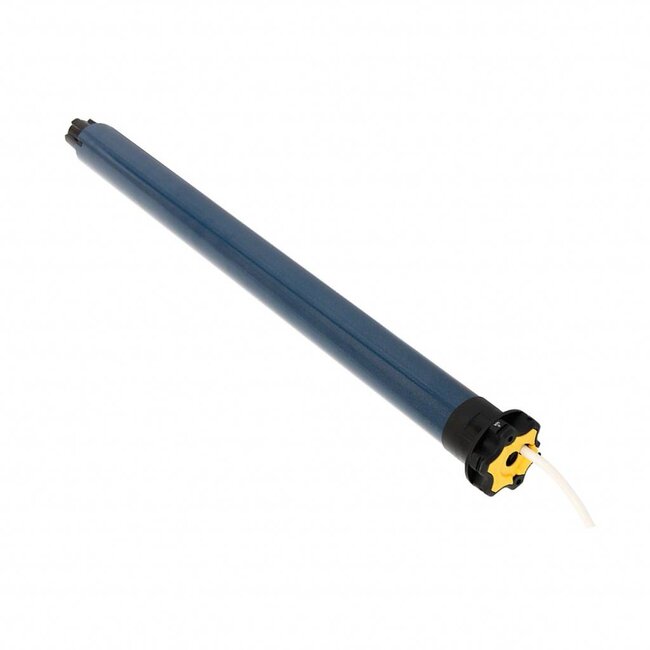

Somfy S&SO RS100 io whisper-quiet roller shutter motor

Somfy S&SO RS100 io is the revolutionary motor for Roller shutters. Has exceptional acoustic comfort. It makes the roller shutter move smoothly and controlled. With rigid connections and adaptive obstacle detection, it ensures preventive operation and a longer life for the roller shutter and Motor.

- Supplied without motor support and adapter set
- tube motor 230 V/50 Hz, with built-in high-frequency Somfy io receiver
- one of the quietest roller shutter motors on the market
- available in 6 to 20 Nm
- equipped with soft start and soft stop to increase the life span of roller shutter and tubular motor
- RS100 tube motor no longer needs an earth wire thanks to the double insulation of the motor
- settings can be activated and/or adjusted via the Set & Go io tool
- the hindrance detection stops the roller shutter on an obstacle or when the roller shutter is frozen at the bottom.
is frozen solid
- in combination with rigid joints, the Roller shutter withstands a lifting force of 100 kg
- transmission range approximately 20 metres through 2 concrete walls
- simple wireless adjustment using remote control
- possibility of combination with wireless timer (Chronis io or Nina Timer io)
- automatic intermediate position pre-programmed as standard to the daylight mode
- one S&SO RS100 io tubular motor can be operated wirelessly with a maximum of 9 1-way
Controls and an infinite number of 2-way controls
- cannot be used with relay boxes, standard switches and standard controllers
- controllable with all Somfy io-commandments and io-controllers

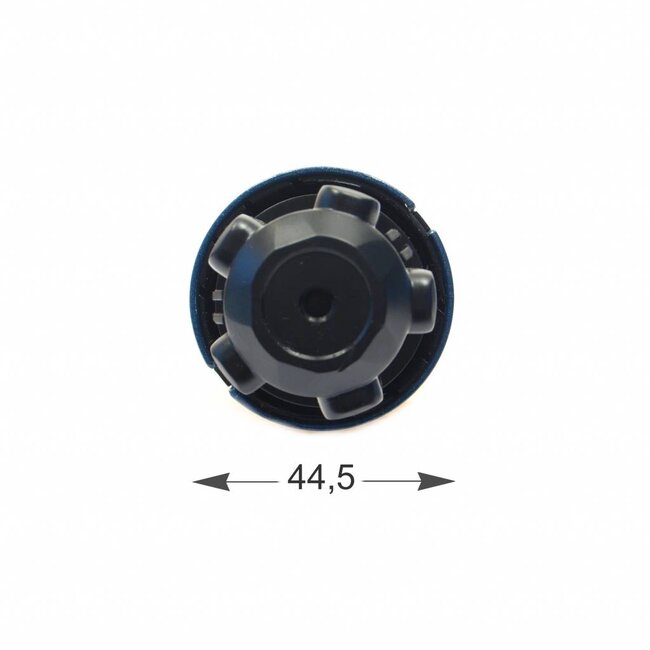

- fits into a tube with a minimum inside diameter of 47 mm
- final adjustment capacity: 136 revolutions. Operating time limited to 3 min
- supplied as standard with a white 2-wire (VVF) cable, length 5 m. Axial and radial
cord outlet
- not suitable for continuous use
- with the Smoove RS100 io wall transmitter, the Motor can be operated in 'silent' mode
- silent mode speed adjustable between 6 and 10 rpm
- normal speed adjustable between 12 and 17 rpm
- class II motors without earth wire

Somfy S&SO RS100 io tubular motor is available in the following models
- RS100 io 6/17 - 6 Nm - 17 rpm - length 470 mm
- RS100 io 10/17 - 10 Nm - 17 rpm - length 484 mm
- RS100 io 15/17 - 15 Nm - 17 rpm - length 527 mm
- RS100 io 20/17 - 20 Nm - 17 rpm - length 544 mm

-- download the manual of the RS100 io tube motor here --

io-homecontrol® - the intelligent solution for maximum home comfort
io-homecontrol® controls the entire house, i.e. not only Roller shutters, blinds and garage doors, but also the front door, skylights, windows, heating, lighting and ventilation. The 2-way radio technology informs the user, is operationally reliable and becomes the new standard on the market.

Somfy io-homecontrol® tubular motors
These motors have all the advantages of existing RTS motors + the benefits offered by io-homecontrol. An extensive range of motors will be available in 2017. These motors can be controlled by any io-homecontrol® 1-way or 2-way control. We recommend programming a local control (1-way) per motor. On the 2-way remote controls or in the app, the consumer receives feedback on whether the requested command was executed or other information that makes it easy for him to understand the operation.

Frequency and safety
2-way io-homecontrol® products can communicate on 3 different frequencies between 868 and 870 MHz. If the frequency used is not free, it is automatically switched to another frequency. The 1-way products only communicate on the 868 MHz frequency. Power failure does not affect stored data.

Flexibility
The 1-way remote controls are designed to control one Motor. The 2-way controls are group or central controls where the consumer receives feedback via an LED, via pictograms, via text or via sound. Sun and wind sensors operate the products automatically. Automatic operation can be easily blocked using the Smoove 1 A/M io, a Situo 5 VAR A/M io or in the app.
