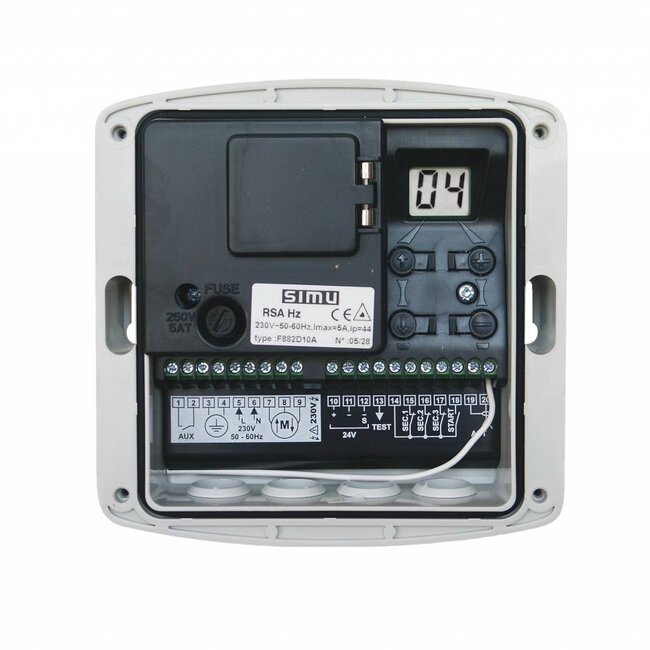

Simu RSA Hz PRO roller shutter controller

This control box is no longer available, there is also no alternative from Simu, you could order the Tedsen MO713 roller shutter control as an alternative.

- control 230V 1-phase tubular motor with integrated limit switches.
- suitable Simu T8, T8 DMI, T8S & T8S DMI
- integrated receiver for Simu Hz handheld transmitters
- frequency 433.42 MHz
- dimensions 150x150x40 mm
- protection class IP55
- control of a signal lamp and/or ambient lighting
- control of 3 security accessories: one or two photocells (indoor/outdoor) and
a bottom rail safety device
- 6 Drive functions: automatic, semi-automatic, sequential, sequential with
delay time, 3-key control (up, stop and down) and forced
control by means of keyboard buttons
- quick and easy configuration via digital display and control and selection keypad
- simple connection of cables to terminals, 4 cable outlets
- strong housing
- built-in cycle counter

-- download the installation manual for the RSA Hz controller here --
