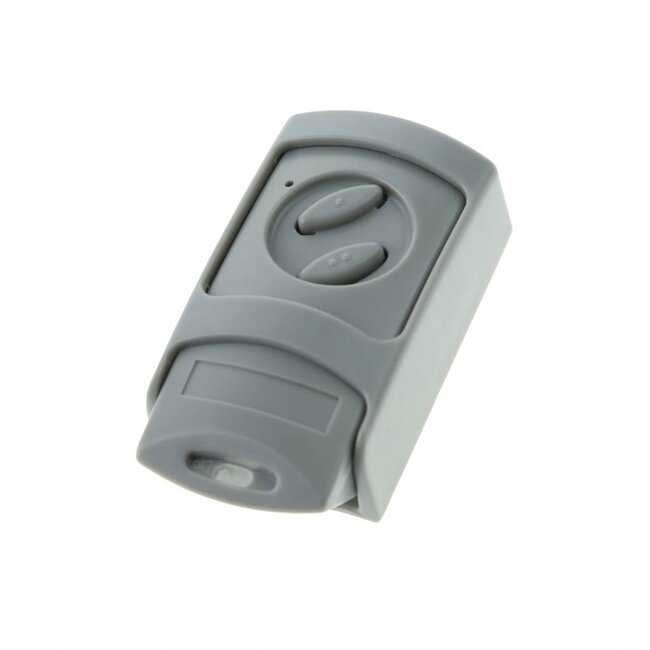

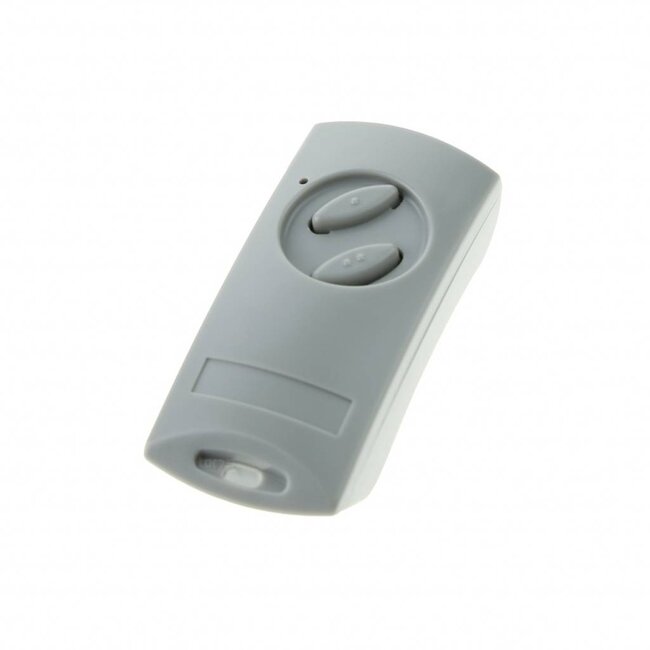

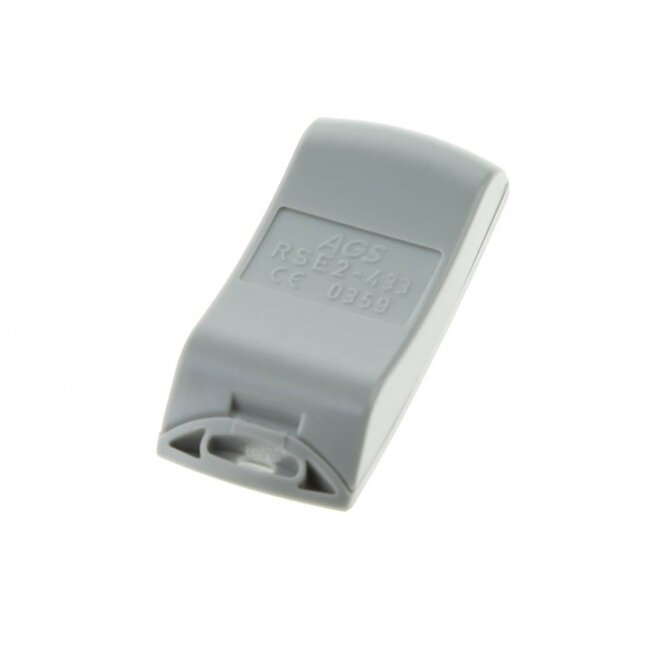

Hormann EcoStar RSE2 handheld transmitter
- frequency 433.92 MHz
- suitable for all Hörmann EcoStar operators with frequency 433.92 MHz
- Dimensions 28x62x17 mm (wxhxd)
- 2 channels
- housing and push buttons in grey

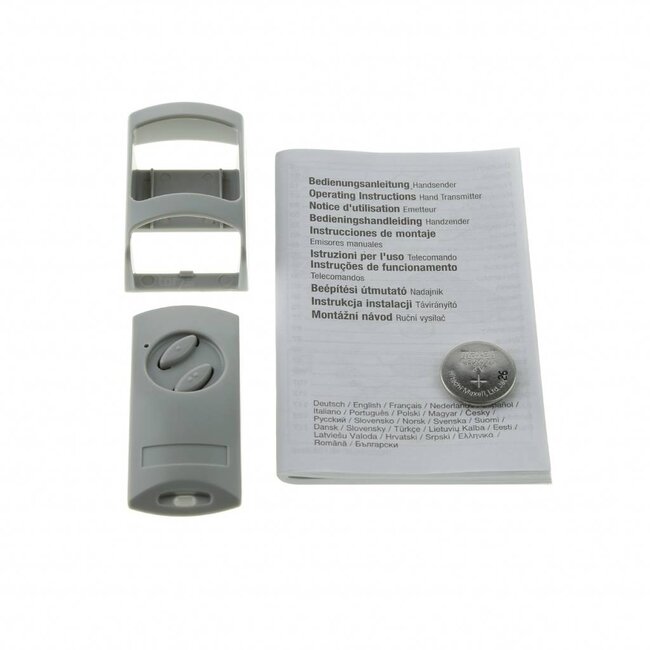

- including battery 3 Volt, type CR2025

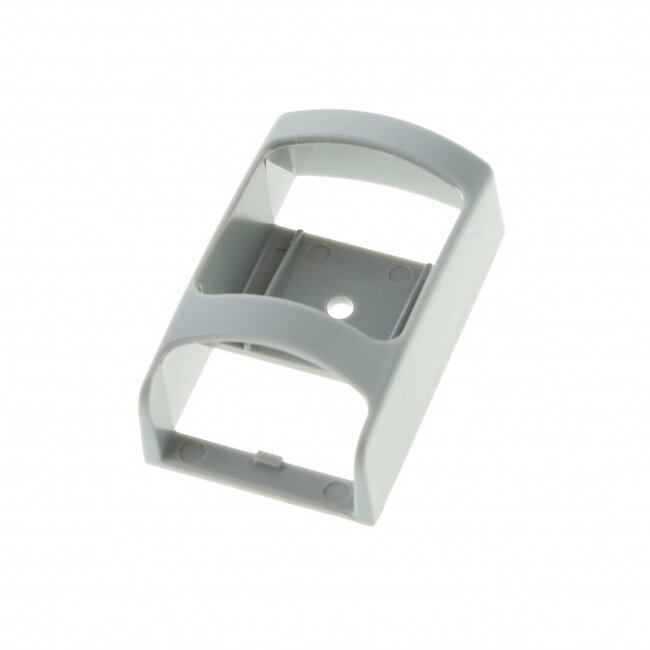

- including handy wall holder
- self-learning rolling code for EcoStar and Liftronic
- range up to 20 metres (depending on local conditions)
- transmitter must be learned in the receiver
General information on button colours and frequencies for Hörmann handheld transmitters
Hörmann remote controls with green buttons, unlike remote controls with other button colours, can be delivered in different frequency ranges. This mainly led to country-specific differences, where a frequency was usually used more in a European country. The Hörmann HSM4 remote control with 27.445 MHz was mainly used in the Netherlands, with 27.015 MHz was mainly used in France, while in Germany, for example, the frequency 26.975 MHz was more focused on. In Belgium, Denmark, the UK and Austria, the 26.995 MHz frequency was more likely to be used. Therefore, when choosing the right remote control, pay attention not only to the button colour, but also check the frequency range carefully
- blue buttons --> frequency 868.3 MHz (latest version)
- grey buttons --> frequency 40,685 MHz (previous version)
- green buttons --> frequency 27.455 MHz (mainly the Netherlands)
- green buttons --> frequency 27,015 MHz (mainly France)
- green buttons --> frequency 26,975 MHz (mainly Germany)
- Ecostar --> frequency 433.92 MHz
Handheld transmitter EcoStar RSE2
The EcoStar RSE2 handheld transmitter is only suitable for the Hörmann EcoStar 433.92 MHz garage door operator with RollingCode (RC). Remote control is not compatible with other door operators. Remote control makes opening and closing the garage door a comfortable affair, as it works by pressing a button with a range of 20 metres. The prerequisite for this transmission distance is a trouble-free radio connection. Sources of interference such as walls or power cables can affect the transmission power.
A battery is included so that the EcoStar RSE2 Handheld transmitter is ready for use immediately after simple installation. Control via two buttons is simple and clear. The transmitter is easy to learn thanks to the user-friendly user manual. The dimensions of 28 x 62 x 17 mm make the EcoStar RSE 2 a practical mini transmitter that fits in any pocket.
Important note:
Hörmann handheld transmitters are not compatible with other handheld transmitters. Hörmann handheld transmitters only work on Hörmann garage door operators!
