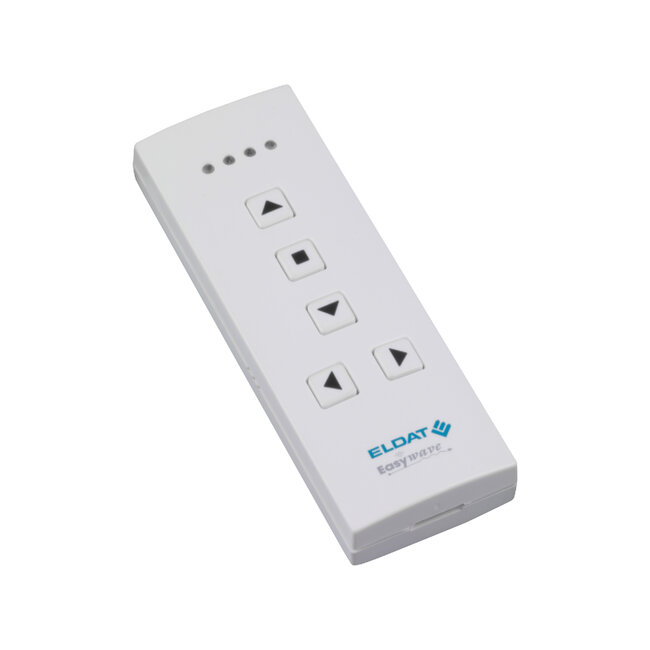

Eldat RT32 Easywave - 4-channel handheld transmitter

- also suitable for controlling blinds or roller shutters with Altron RS or RR tubular motors
- 4-channel handheld transmitter
- frequency 868.3 MHz

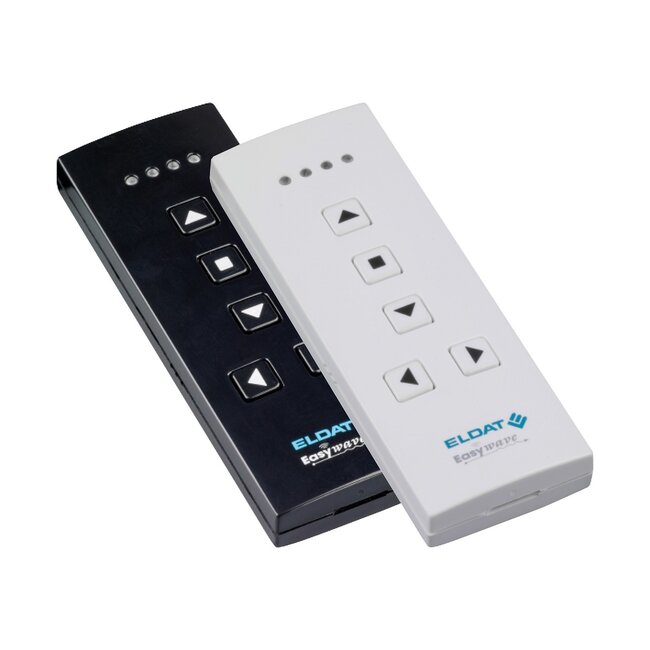

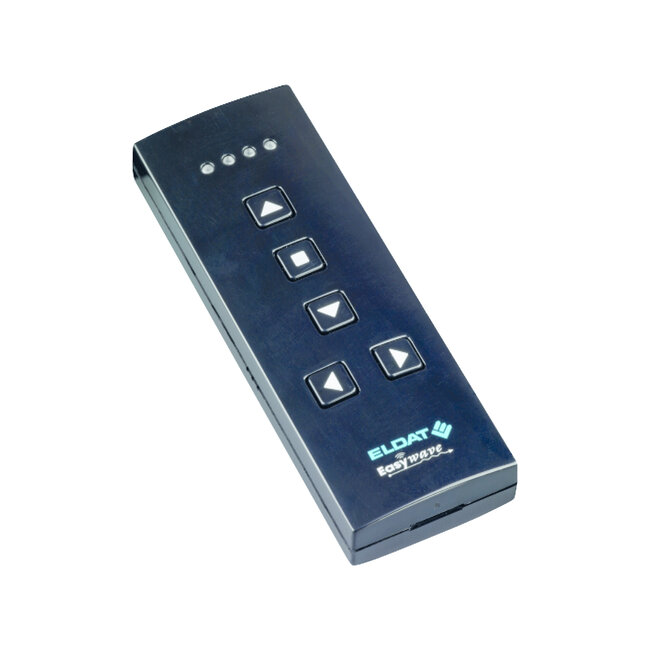

- available in white or black
- Supplied with wall holder and battery
- dimensions 37x108x12 mm (wxhxd)

Programming extra Eldat Easywave handheld transmitter on Altron Radio Black tubular motor
- hold down the STOP button of an already programmed Transmitter
until the Motor confirms this by briefly running up and down
- within 5 seconds, briefly press the UP button and then briefly
the DOWN button of the transmitter already programmed, the Motor
confirms with a brief up and down movement
- briefly press the UP button of the new Transmitter within 5 seconds,
then the motor confirms that the new transmitter is
with a short up and down movement

Programming additional Eldat handheld transmitter on Altron tubular motors prior to 2005
- keep the UP button of the new transmitter pressed until the Motor
confirms with a short up and down movement
- within 5 seconds, press the OP button of the already programmed transmitter 3 times
transmitter and then once on the OP button of the new transmitter, the motor
confirms with a short up and down movement
- the new transmitter is programmed
