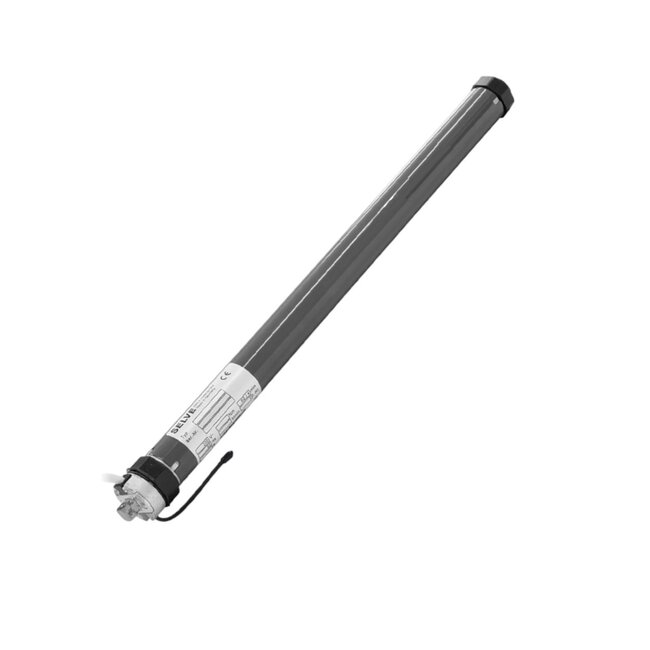

Selve SE Plus RC, type 1 tubular motor

Selve SE Plus RC tubular motor the excellent product properties of all SE tubular motors find their continuation in the radio-controlled variations of these motors. These motors are perfectly matched to SELVE's intronic system and show convincing advantages.

- Supplied without motor support and adapter set
- power supply 230 V 50 Hz
- available in 7 and 10 Nm
- speed 20 rpm at 7 Nm and 15 rpm at 10 Nm
- suitable for axle/Shaft from Ø 40 mm
- simple adjustment of the drive via the five-axis connection
or by handheld transmitter without opening the shutter box
- secure radio connection via 868 MHz
- simple set-up of group and central controls with the possibility of
possibility of retrofitting
- patented group separation
- automatic direction of rotation
- Built-in in the familiar way
- upward overload protection in case of excessive torques
- parallel connection of several SELVE electronics motors without additional
switching elements possible
- simple adaptation to all conventional roller shutter tubes through a perfect
adapter system
- Line-related control possible in parallel with radio control (e.g.
additional Switch, BUS connection)
- freely selectable function for setting end points
- no upper stop present --> position switch-off
- top stop present --> soft run-up under the shutter box with automatic release
- no readjustment of Roller shutter required after expansion
