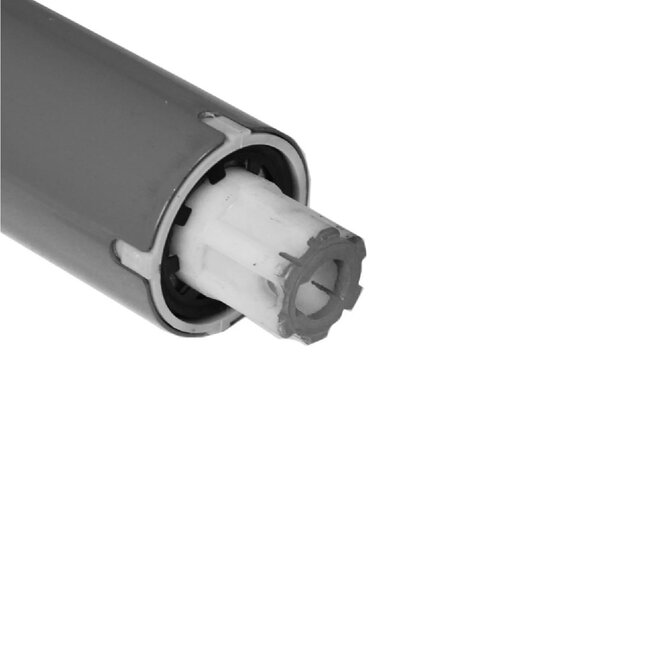

Selve SE Plus, type 1 tubular motor

Selve SE Plus tube motor, precision, flexibility, mounting convenience. These and other qualities characterise the SELVE electronic motors for roller shutter and sun protection systems. Especially the versatile range of Selve motors with electronic final adjustment is highly praised by professionals. The high level of comfort can already be found in the basic models.

- Supplied without motor support and adapter set
- power supply 230 Volt 50 Hz
- available in 7 and 10 Nm
- speed 20 rpm at 7 Nm and 15 rpm at 10 Nm
- suitable for axle/Shaft from Ø 40 mm
- simple adjustment of the drive via the four-wire connecting cable without having to open the
shutter box
- Built-in as usual
- overload protection in upward direction in case of excessive torques
- parallel connection of several SELVE electronics motors possible without additional switching elements
- simple adaptation to all conventional roller shutter tubes through a perfect adapter system
- automatic rotation direction allocation
- freely selectable function for setting the end points:
- no upper stop present --> position switch-off
- upper stop present --> soft start under the shutter box with automatic relaxation
- no readjustment of Roller shutter required after expansion
