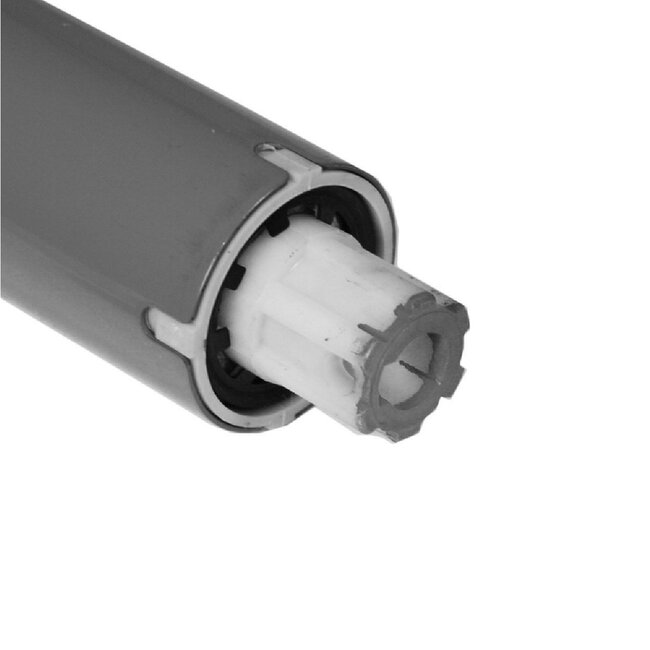

Selve SE Plus tubular motor, type 2

Selve SE Plus tube motor, precision, flexibility, mounting comfort. These and other qualities characterise the SELVE electronic motors for roller shutter and awning systems. Especially the versatile range of Selve motors with electronic final adjustment is highly praised by professionals. The high level of comfort is already to be found in the basic models.

The Selve tube motors are now in a new grey colour, since the end of 2019 the tube motor is no longer coated in the familiar colour green, but in grey.

- Supplied without motor support and adapter set
- power supply 230 Volt 50 Hz
- available in 7 to 50 Nm
- speed 17 rpm (7 to 40 Nm) and 12 rpm (50 Nm)
- suitable for axle/Shaft from Ø 50 mm
- simple adjustment of the drive via the four-row connecting cable without having to open the
shutter box
- Built-in as usual
- overload protection in upward direction in case of excessive torques
- parallel connection of several SELVE electronics motors possible without additional switching elements
- simple adaptation to all conventional roller shutter tubes through a perfect adapter system
- automatic rotation direction allocation
- freely selectable function for setting the end points:
- no upper stop present --> position switch-off
- upper stop present --> soft start under the shutter box with automatic relaxation
- no readjustment of Roller shutter required after expansion
