Selve SE Pro RC, type 2 tubular motor

The Roller shutter is ideally protected by using a Selve SE Pro RC tubular motor. When installing for the first time, you determine whether, when moving upwards, the roller shutter is always operated gently against the stop or is switched off at the set end points. The end switch-off of the tubular motor is set using the Handheld transmitter. These motors operate on all Selve, Itronic i-r, Iveo and Commeo radio protocols .

- This tubular motor was supplied for a period as Selve SE Pro COM
- successor of the Selve SEL Plus RC and Selve SES RC
- integrated receiver with a frequency of 868 MHz
- suitable for the Itronic i-r, Iveo and Commeo protocol
- supplied without motor support and adapter set
- power supply 230 Volt 50 Hz
- available in 7 to 50 Nm
- speed 17 rpm (7 to 40 Nm) and 12 rpm (50 Nm)
- suitable for axle/Shaft from Ø 50 mm
- obstacle detection in downward direction with overhaul (brief free running)
- simple drive adjustment via handheld transmitter
- protection in upward direction in case of overload, e.g. due to freezing
- simple adaptation to all conventional roller shutter tubes with the appropriate adapter set
- automatic rotation direction allocation
- adjustment of the end position in various ways
- no upper stop present
- position switch-off
- upper stop present:
- soft start under the shutter box with automatic relaxation
- no readjustment of Roller shutter required after expansion
- automatic end adjustment with handheld transmitter

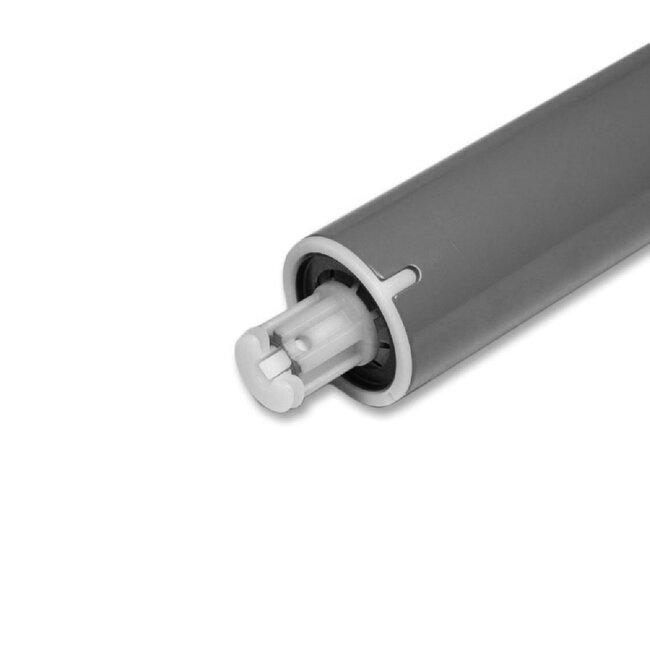

The Selve tube motors are now in a new grey colour, since the end of 2019 the tube motor is no longer coated in the familiar colour green, but in grey.
