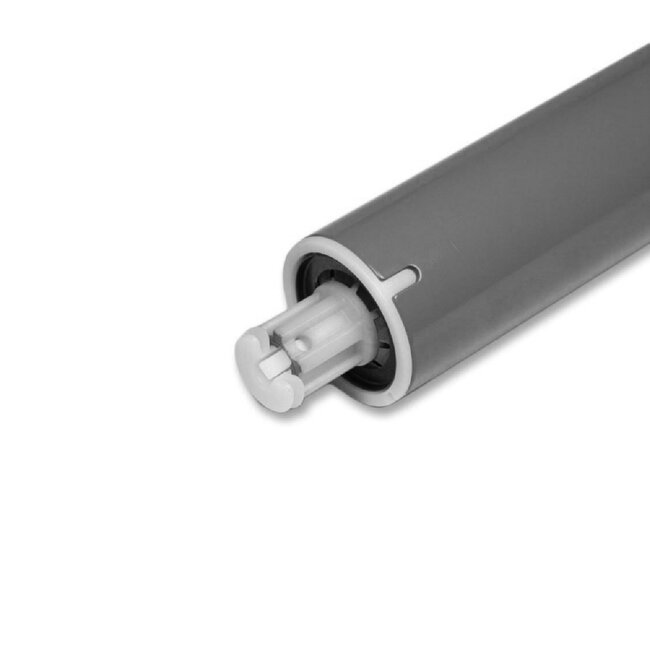

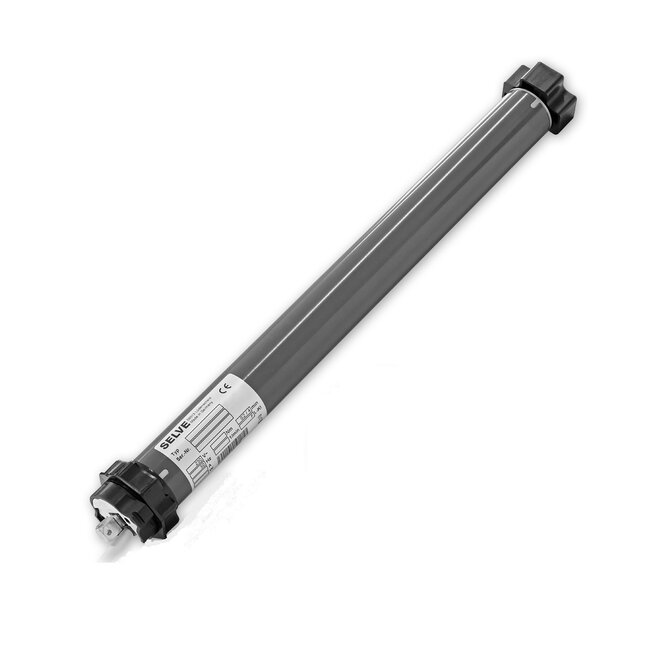

Selve SE Pro, type 2 tubular motor with overload protection in upward direction in case of excessive torque due to e.g. freezing for Roller shutters with a minimum shaft diameter of Ø 50 mm. Read more.
The Roller shutter is ideally protected by using a SE Pro roller shutter motor. On initial installation, you determine whether the motor always runs gently against the stop or is switched off at the set end points during upward movement. The final adjustment is made by pressing a button, even without an adjustment switch on initial installation. Can be used as a replacement for the SES Motor.
The Selve tube motors are now in a new grey colour, since the end of 2019 the tube motor is no longer coated in the familiar colour green, but in grey.
- this tube motor is the opvlger of the Selve SEL Plus and Selve SES
- Supplied without motor support and adapter set
- power supply 230 Volt 50 Hz
- available in 6 and 50 Nm
- speed 17 rpm (6 to 40 Nm) and 12 rpm (50 Nm)
- suitable for axle/Shaft from Ø 50 mm
- obstacle detection in downward direction with overhaul (short freewheel)
- simple adjustment of the drive via the four-wire connection with an adjustment cable
- simple assembly of group and central controls with the possibility
possibility of retrofitting
- overload protection in upstream direction in case of excessive torques due to
freezing, for example
- parallel connection of several SELVE electronics motors without additional
switching elements possible
- simple adaptation to all conventional roller shutter tubes through a perfect adapter system
- patented group separation
- automatic direction of rotation
- Built-in in the familiar way
- no upper stop present:
- position cut-off
- upper stop present:
- soft start-up under shutter box with automatic relaxation
- no readjustment of Roller shutter necessary after expansion
- automatic final adjustment at the push of a button
Selve SE Pro tubular motor is available in the following models
- SE Pro 2/6 - 6 Nm - 16 rpm - 88 Watt - length 399 mm
- SE Pro 2/7 - 7 Nm - 17 rpm - 95 Watt - length 505 mm
- SE Pro 2/10 - 10 Nm - 17 rpm - 124 Watt - length 505 mm
- SE Pro 2/15 - 15 Nm - 17 rpm - 152 Watt - length 530 mm
- SE Pro 2/20 - 20 Nm - 17 rpm - 172 Watt - length 545 mm
- SE Pro 2/30 - 30 Nm - 17 rpm - 220 Watt - length 565 mm
- SE Pro 2/40 - 40 Nm - 17 rpm - 345 W - length 566 mm
- SE Pro 2/50 - 50 Nm - 12 rpm - 345 Watt - length 564 mm
