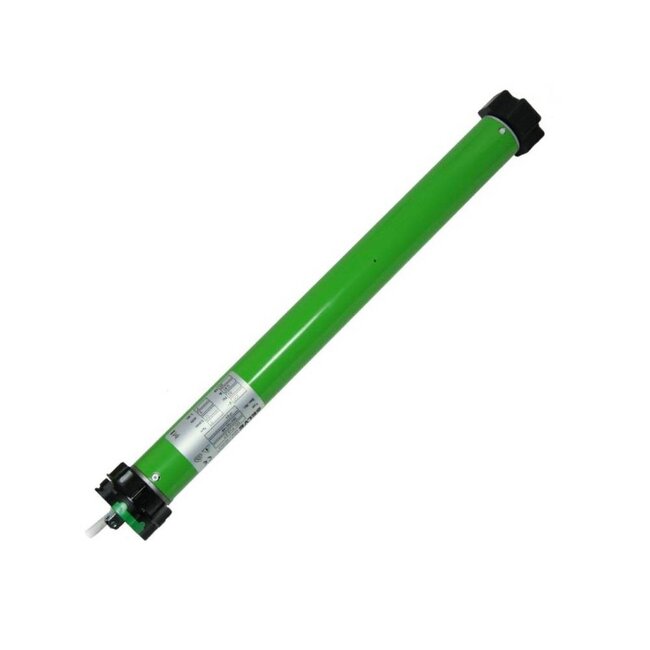

Selve SEL Plus RC, type 2 tubular motor

This tube motor was replaced by the Selve SE Pro RC in mid-2022

The Roller shutter is ideally protected by using a Selve SEL Plus RC tubular motor. When installing for the first time, you determine whether, when moving upwards, the roller shutter is always operated gently against the stop or is switched off at the set end points. The end switch-off is at the push of a button, even without an adjustment switch on initial installation.

- Supplied without motor support and adapter set
- power supply 230 Volt 50 Hz
- available in 7 to 50 Nm
- speed 17 rpm (7 to 40 Nm) and 12 rpm (50 Nm)
- suitable for axle/Shaft from Ø 50 mm
- obstacle detection in downward direction with overhaul (short freewheel)
- simple drive adjustment via the five-axis connection or
by handheld transmitter without opening the roller shutter box
- integrated receiver with a frequency of 868 MHz
- suitable for both Commeo and Iveo handheld transmitters (these transmitters cannot be
cannot be combined)
- simple set-up of group and central controls with the possibility of
possibility of retrofitting
- overload protection in upward direction in case of too high torques due to
freezing, for example
- parallel connection of several SELVE electronics motors without additional
switching elements possible
- simple adaptation to all conventional roller shutter tubes through a perfect adapter system
- patented group separation
- automatic direction of rotation
- Built-in in the familiar way
- Linear control possible in parallel with radio control (e.g. additional
Switch, BUS connection)

Freely selectable function for setting the end points:

- no upper stop present:
- position cut-off
- upper stop present:
- soft run-up under shutter box with automatic relaxation
- no readjustment of Roller shutter necessary after expansion
- automatic final adjustment at the touch of a button
