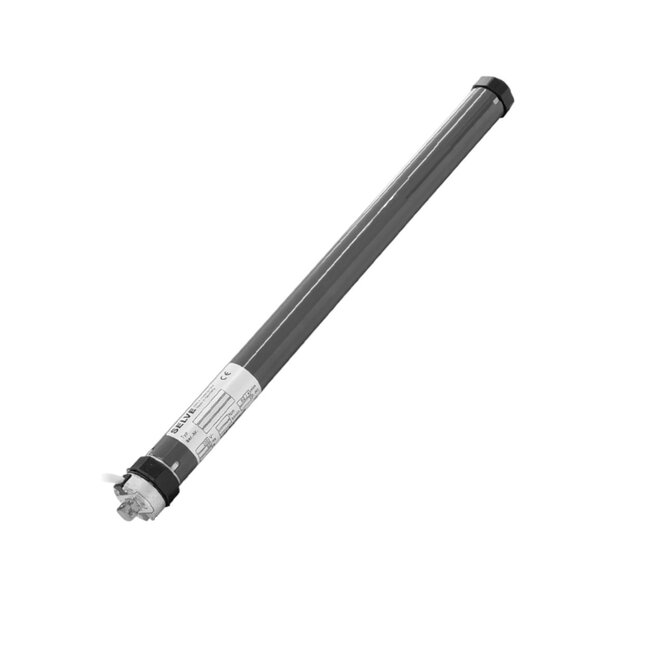

SEL Plus, type 1 tubular motor

Roller shutters are ideally protected by using a SEL-PLUS motor. When installing for the first time, you determine whether the roller shutter is always moved gently against the stop or is switched off at the set end points. The final adjustment is made by pressing a button, even without an adjustment switch on initial installation.

- Supplied without motor support and adapter set
- power supply 230 Volt 50 Hz
- available in 6 and 10 Nm
- speed 15 rpm
- suitable for axle/Shaft from Ø 40 mm
- obstacle detection in downward direction with overhaul (short freewheel)
- simple adjustment of the drive via the four-axis connection without
opening the shutter box
- simple assembly of group and central controls with the possibility of
possibility of retrofitting
- overload protection in upward direction in case of excessive torques due to
freezing, for example
- parallel connection of several SELVE electronics motors without additional
switching elements possible
- simple adaptation to all conventional roller shutter tubes through a perfect adapter system
- patented group separation
- automatic direction of rotation
- Built-in in the familiar way

freely selectable function for setting the end points:

- no upper stop present:
- position cut-off
- upper stop present:
- soft start-up under shutter box with automatic relaxation
- no readjustment of Roller shutter necessary after expansion
- automatic final adjustment at the touch of a button
