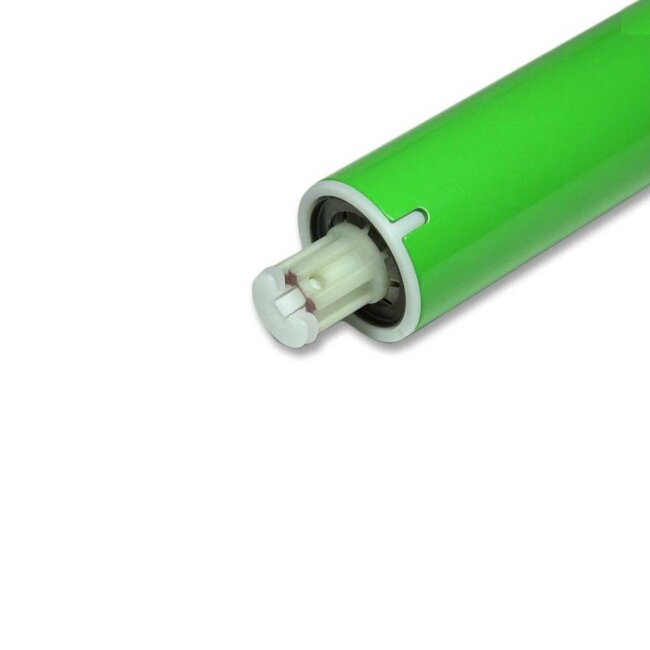

SEL Plus, type 2 tubular motor

This tube motor was replaced in mid-2022 by the Selve SE Pro

The Roller shutter is ideally protected by using a SEL-PLUS motor. When installing for the first time, you determine whether the roller shutter is always moved gently against the stop or is switched off at the set end points. The final adjustment is made at the push of a button, even without a setting switch on initial installation. Can be used as a replacement for the SES Motor.

- Supplied without motor support and adapter set
- power supply 230 Volt 50 Hz
- available in 6 and 50 Nm
- speed 17 rpm (6 to 40 Nm) and 12 rpm (50 Nm)
- suitable for axle/Shaft from Ø 50 mm
- obstacle detection in downward direction with overhaul (short freewheel)
- simple adjustment of the drive via the four-axis connection without
opening the roller shutter box
- simple assembly of group and central controls with the possibility of
possibility of retrofitting
- overload protection in upward direction in case of excessive torques due to
freezing, for example
- parallel connection of several SELVE electronics motors without additional
switching elements possible
- simple adaptation to all conventional roller shutter tubes through a perfect adapter system
- patented group separation
- automatic direction of rotation
- Built-in in the familiar way

freely selectable function for setting the end points:

- no upper stop present:
- position cut-off
- upper stop present:
- soft start-up under shutter box with automatic relaxation
- no readjustment of Roller shutter necessary after expansion
- automatic final adjustment at the touch of a button
