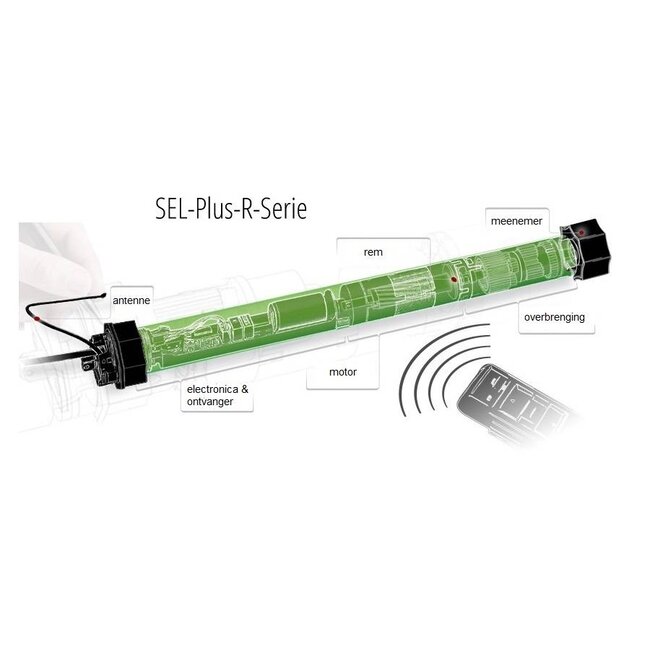

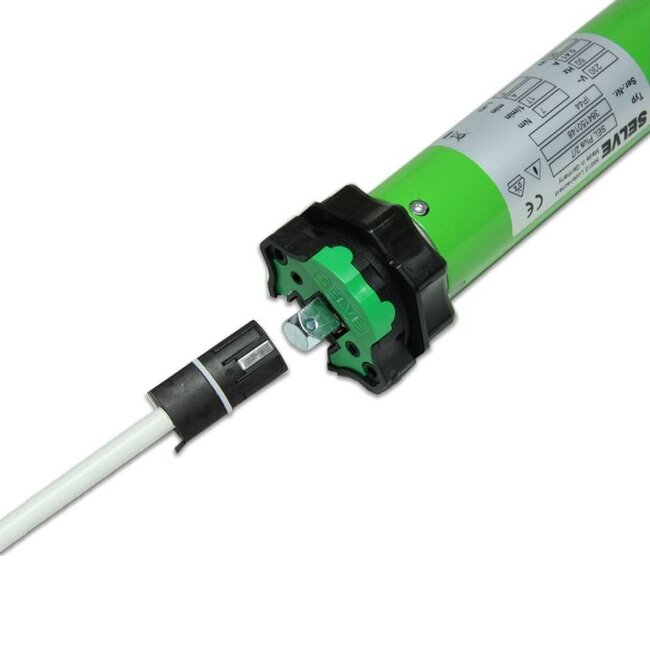

Selve SEM Plus RC, type 2 awning motor

If you set high quality standards for roller shutters, you don't want to compromise on sun protection. For such high demands, SELVE has developed its SEM tubular motors for shading fabric.

- Supplied without motor support and adapter set
- power supply 230 Volt 50 Hz
- available in 7 to 50 Nm
- speed 17 rpm (7 to 40 Nm) and 12 rpm (50 Nm)
- suitable for axle/Shaft from Ø 50 mm
- fabric stretch compensation eliminates the need for adjustment of awnings
- integrated receiver with a frequency of 868 MHz
- simple drive adjustment via the five-wire connection or via handheld transmitter
- soft start-up against the end stop
- suitable for both Commeo and Iveo handheld transmitters (these transmitters cannot be combined)
- simple assembly of group and central controls with the possibility of
- automatic direction of rotation
- parallel connection of several SELVE electronics motors possible without additional switching elements
- simple adaptation to all conventional shading tubes through a perfect adaptation system
- patented group separation
- Line-related control possible in parallel with radio control (e.g. additional Switch, BUS connection)
- Freely selectable function for setting the endpoints, with or without reversing (brief free running)
