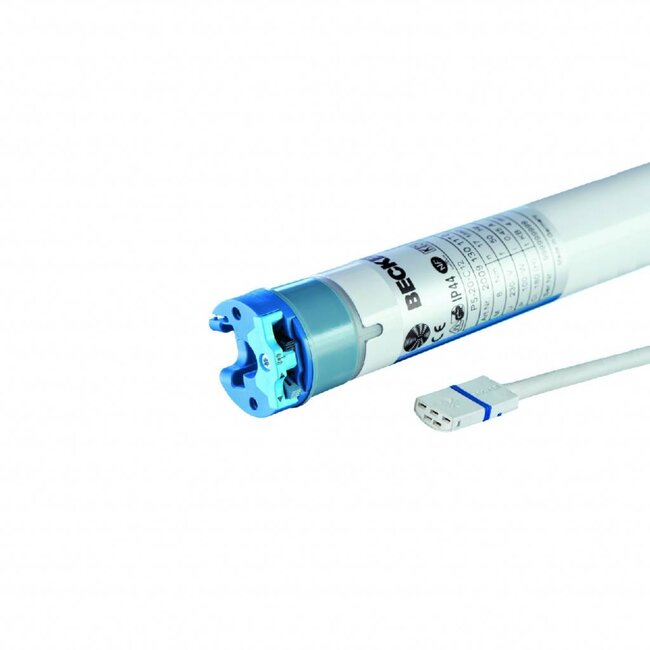

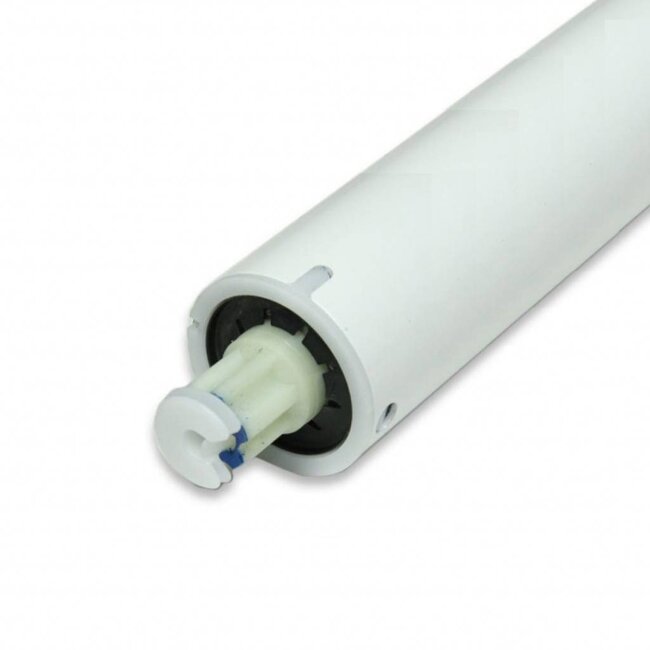

Becker awning motor P..-..-C12 with electronic limit switches and receiver

The classic Becker awning motor with integrated Centronic receiver for awnings and screens. Long range, wide control programme. Tried and tested for years, established in many buildings.

- Tubular motor of the Becker P..-..-C12 series
- supplied without motor support and adapter set
- replacement for the P..-..SF & P..-..PSF(+) series
- force 9 Nm (no other powers available in NL)
- speed 16 rpm
- suitable for drive shafts from Ø 38 mm
- electronic limit switch
- integrated radio receiver compatible with Centronic control programme
- simple setting of the end positions with Centronic hand or wall transmitter
- universal use in many sun protection applications with and without stopper
- blocking detection in UP direction
- automatic fabric length compensation
- end position status indicator (ESI) signals missing end positions
- programming of 2 freely selectable intermediate positions possible
- run-up to intermediate positions possible from any position
- dead-man operation during setting of the end positions
- individual, group and central control possible up to 16 transmitters
- soft stop at the top, optimum adjustment of closing force to protect the fabric
- motor head rewindable
