Home brand tubular motor TTGO TG ME motor set for hinged arm screens

Easily convert your manually operated drop-down or hinged arm screen into a sunshade with a tubular motor operated by a handheld transmitter.

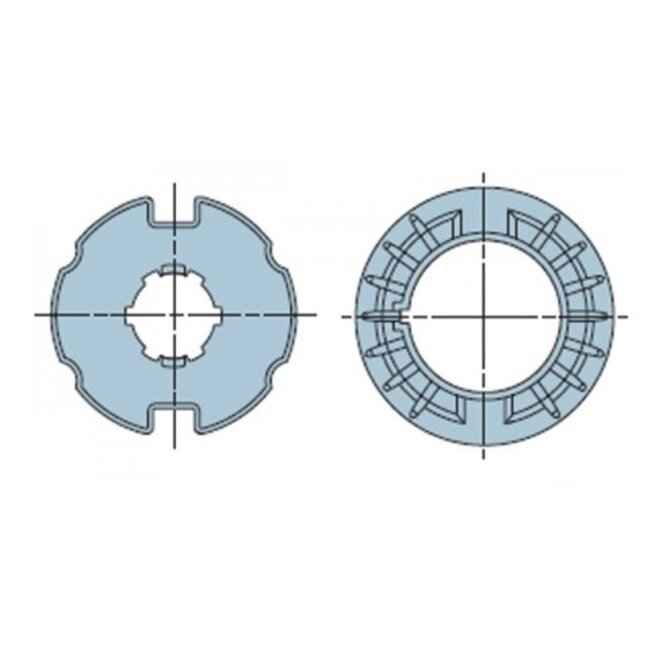

This set is supplied as standard with an adapter set Ø 78 mm suitable for the Ø 78 mm awning tube used with hinged awnings. As an alternative, you can choose a Ø 63 mm adapter set, which is often used with articulated blinds.

- including adapter set Ø 78 mm for an articulated sunshade

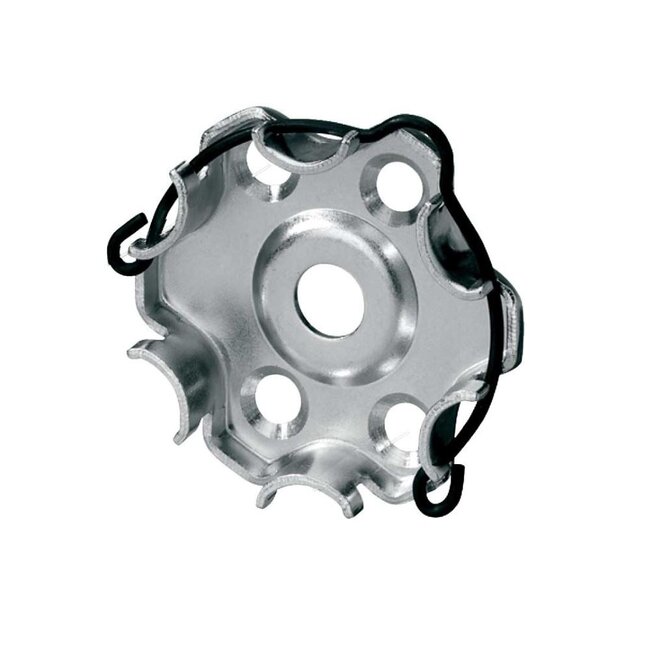

- including Starhead Motor support

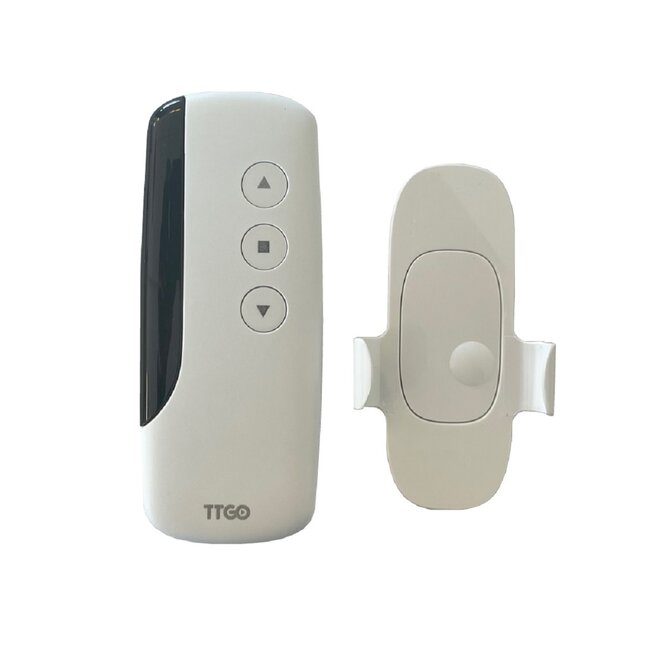

- including Handheld transmitter 1-channel

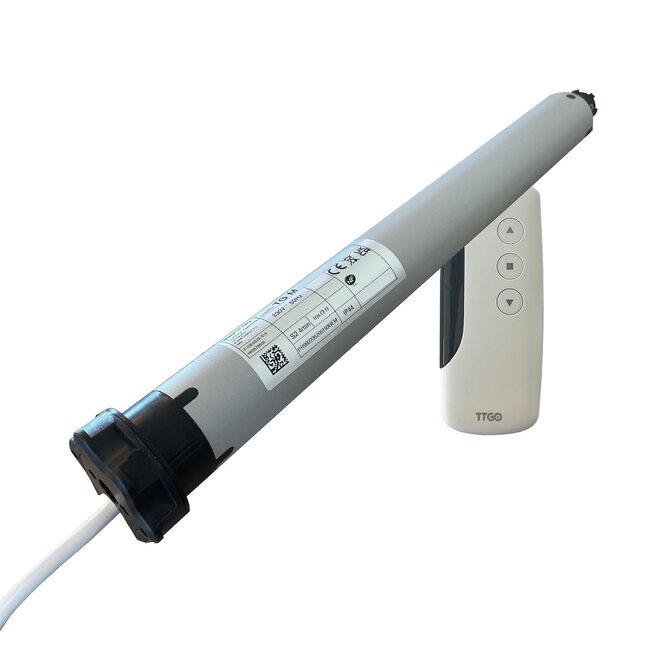

- Tubular motor 230 V/50 Hz with electronic final adjustment
- tubular motor has an integrated 433 MHz receiver
- 30 transmitters can be stored in memory
- speed 30 Nm motor 17 rpm
- speed 40 and 50 Nm motor 12 rpm
- capacity of the final adjustment 46 revolutions
- not suitable for continuous use
- suspension springs, axle prop and bearing can be ordered in addition at a competitive price

What power to choose for an awning
- extension 2 m --> ± 30 Nm
- extension 2.5 m --> ± 40 Nm
- a 3 m drop --> ± 50 Nm

For a drop-down screen, 30 Nm is more than sufficient in most cases.

Download here the manual for the TTGO TG ME tubular motor
