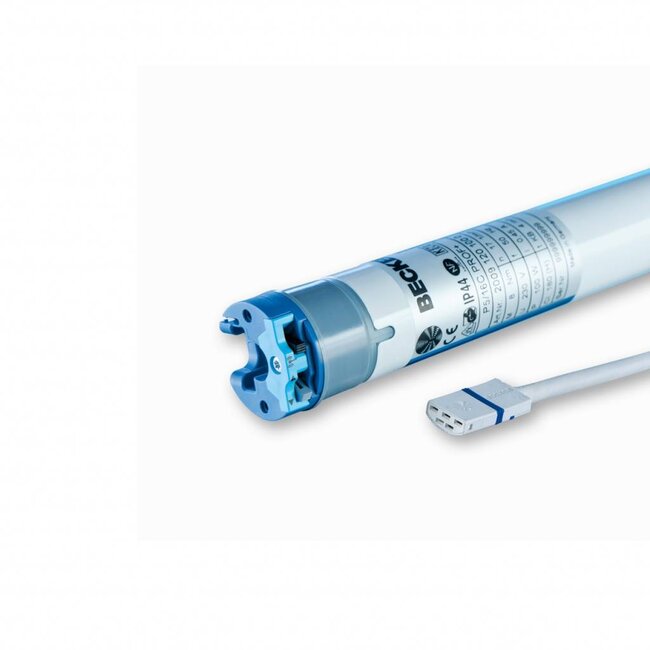

Becker tube motor P9-16-C01 with electronic limit switches and receiver

The classic Becker wireless roller shutter motor with integrated Centronic receiver, long range, wide control possibilities. Tried and tested for years, established in many buildings.

- Tubular motor of the Becker P..-..-C01 series
- supplied without motor support and adapter set
- replacement for the P../..PRF+ series
- force 9 Nm (no other powers available in NL)
- speed 16 rpm
- suitable for drive shafts from Ø 38 mm
- integrated radio receiver, compatible with the Centronic control programme
- automatic recognition of end positions
- sensitive obstacle detection in DOWN direction with automatic reversal
- blocking detection in UP direction (anti-freeze protection)
- automatic increase of pressure force in case of upward slide protection
- fly screen function
- motor head rewindable
- intelligent installation management enables corrections of end positions
- End position Status Indicator (ESI) signals missing end positions
- simple programming of the end positions with or without fixed stops
- programming of 2 freely selectable intermediate positions possible
- individual, group and central control possible up to 16 transmitters
- soft stop at the top
- dynamic force adjustment in case of roller shutter changes
