TTGO tubular motor TG ME motor set for Roller shutters

Simply convert your manual roller shutter into a roller shutter with a tubular motor operated by a Handheld transmitter.

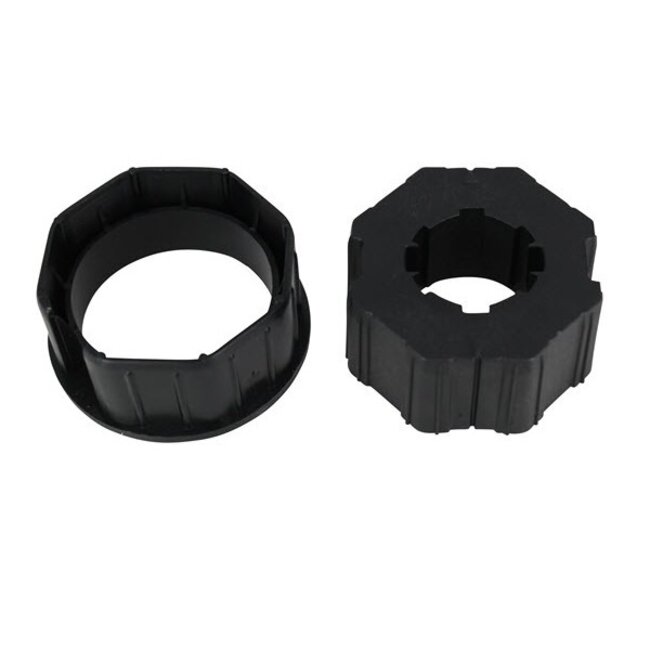

- including adapter set for 8 side 60 roller shutter box

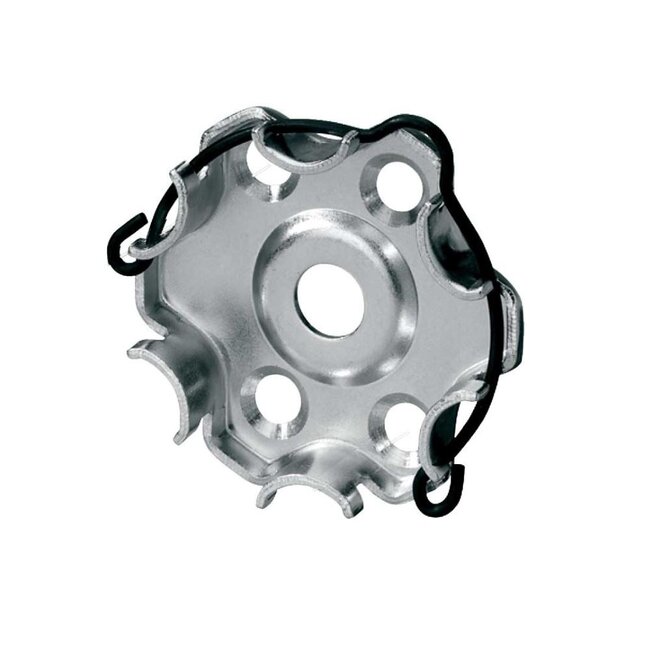

- including Motor support

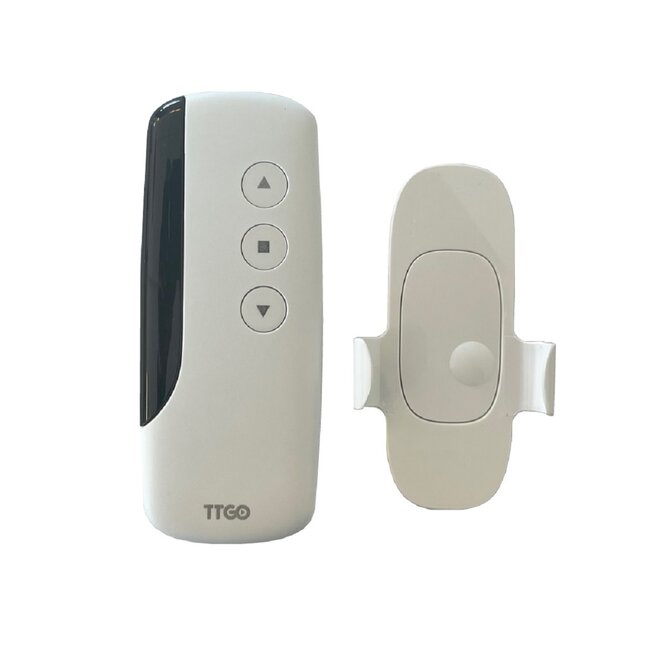

- including a 1-channel handheld transmitter

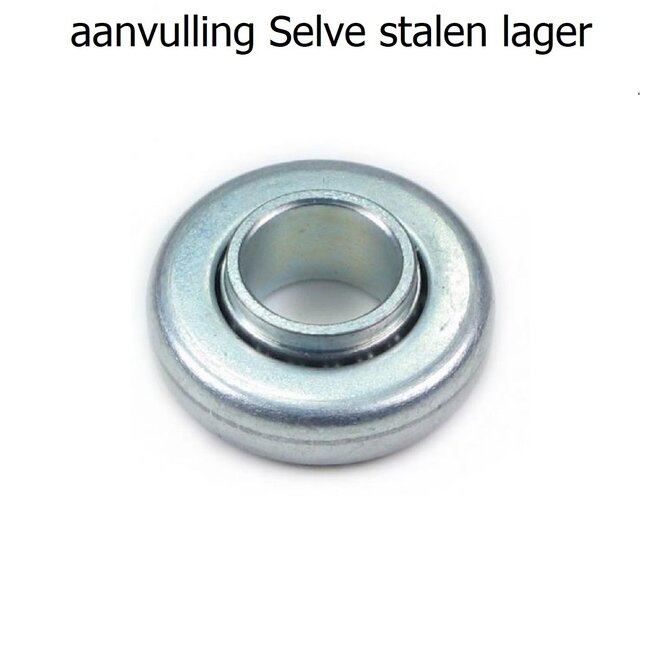

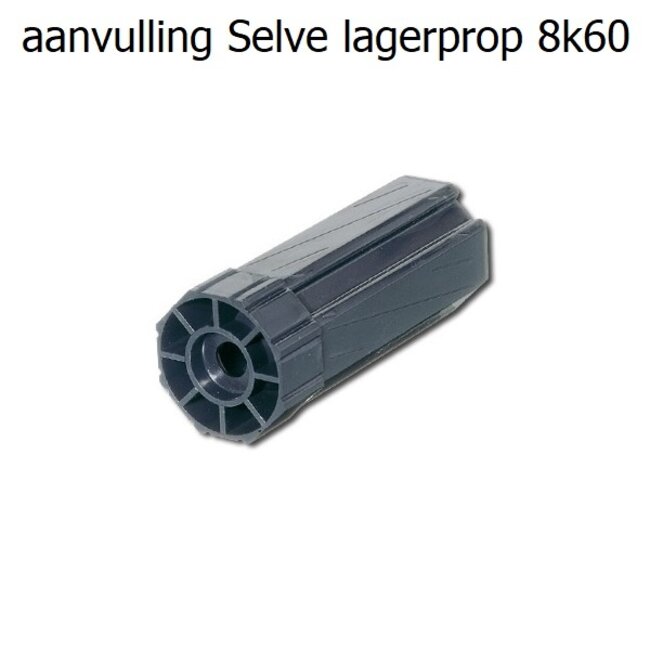

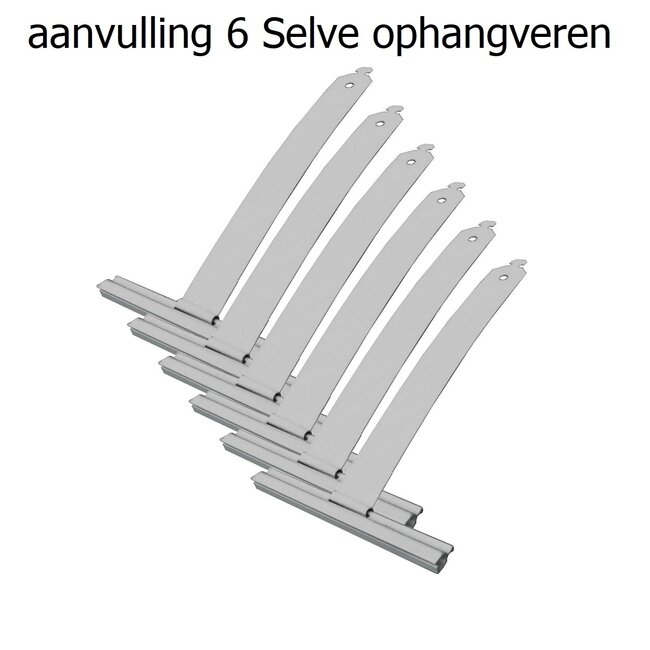

- as an extra a set of suspension springs, Axle prop and Bearing for a tight price

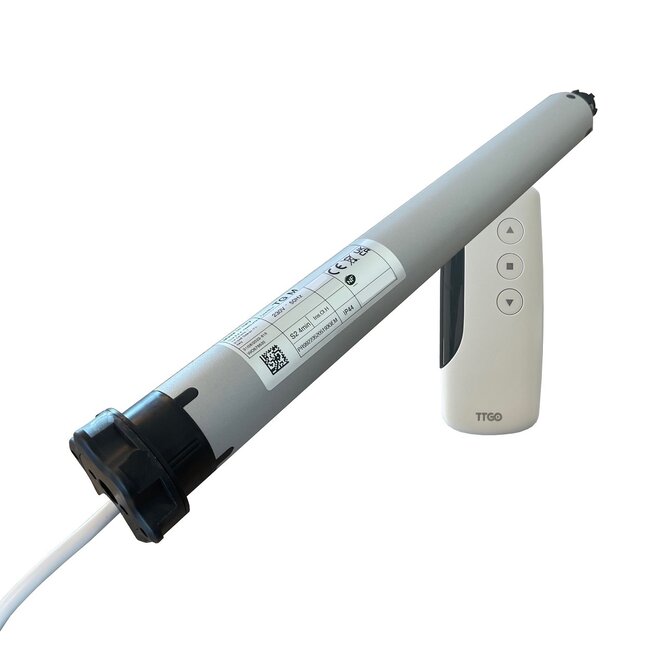

- tubular motor 230 V/50 Hz with electronic final adjustment
- tubular motor has an integrated 433 MHz receiver
- 30 transmitters can be stored in memory
- speed 12 and 17 rpm, depending on the force
- final adjustment capacity 46 revolutions
- not suitable for continuous use

Type TTGO tubular motors, for mini roller shutter with Axle/Shaft 8 side 60
- tubular motor 10 Nm - 17 rpm --> Roller shutter max 3 m2
- Tubular motor 18 Nm - 17 rpm --> Roller shutter max 5 m2
- tubular motor 30 Nm - 17 rpm --> roller shutter max 8 m2
- Tubular motor 40 Nm - 12 rpm --> roller shutter max 12 m2
- tubular motor 50 Nm - 12 rpm --> roller shutter max 15 m2

Download the manual of the TTGO TG ME tubular motor here
