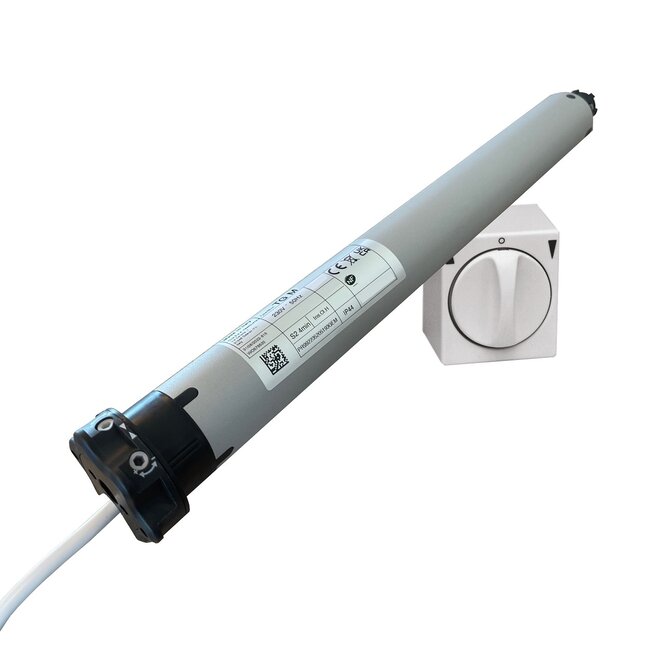

TTGO tubular motor TG M motor set for Roller shutters

Simply convert your manual roller shutter into a roller shutter with a tubular motor operated by a rotary switch.

- including adapter set for 8 side 60 roller shutter box

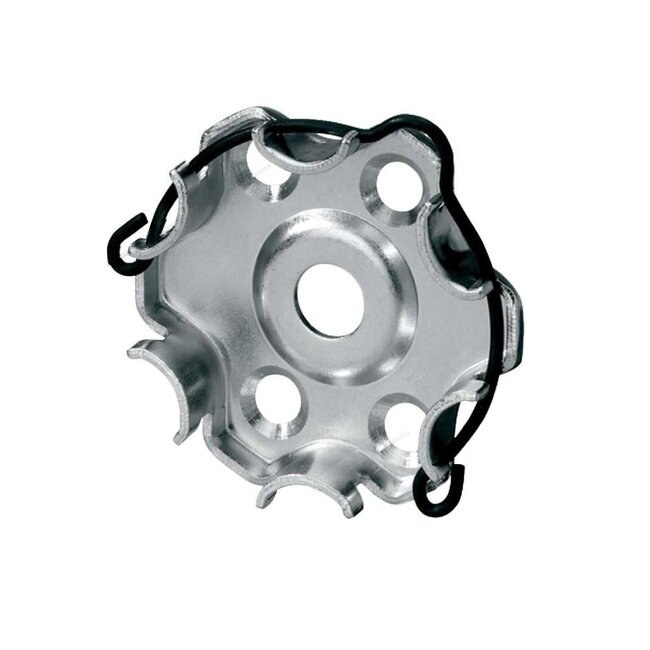

- including Motor support

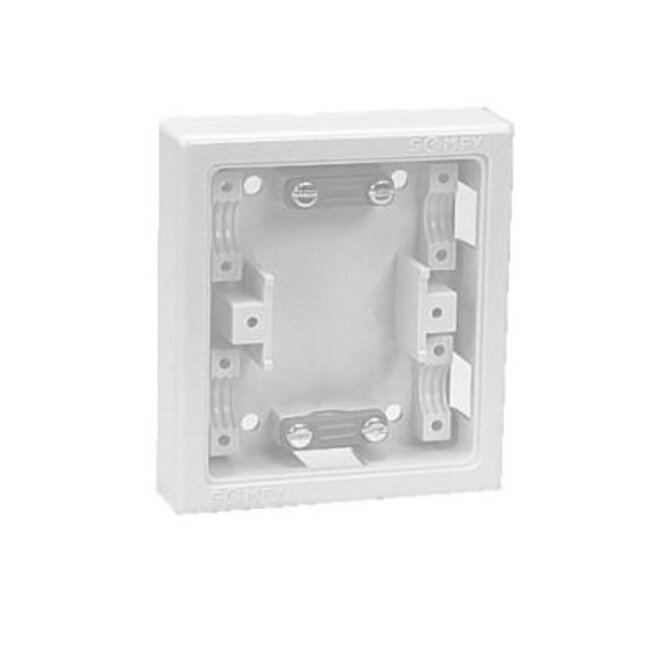

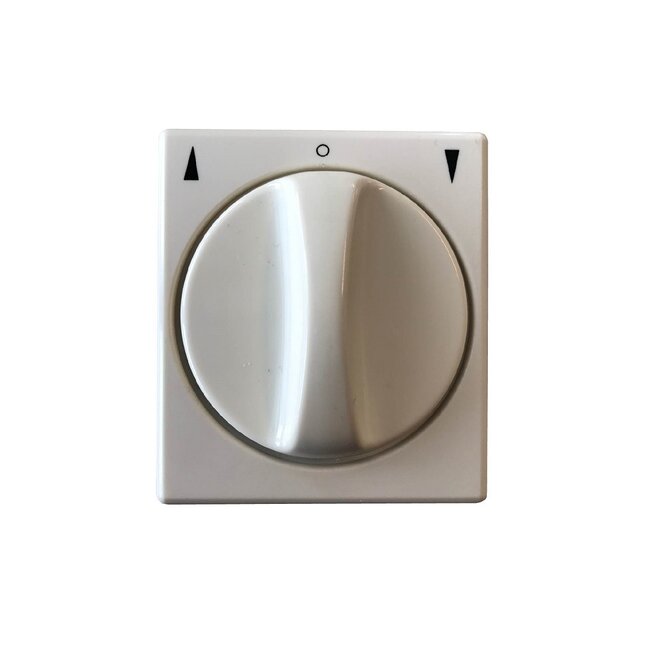

- including rotary switch with foot plate

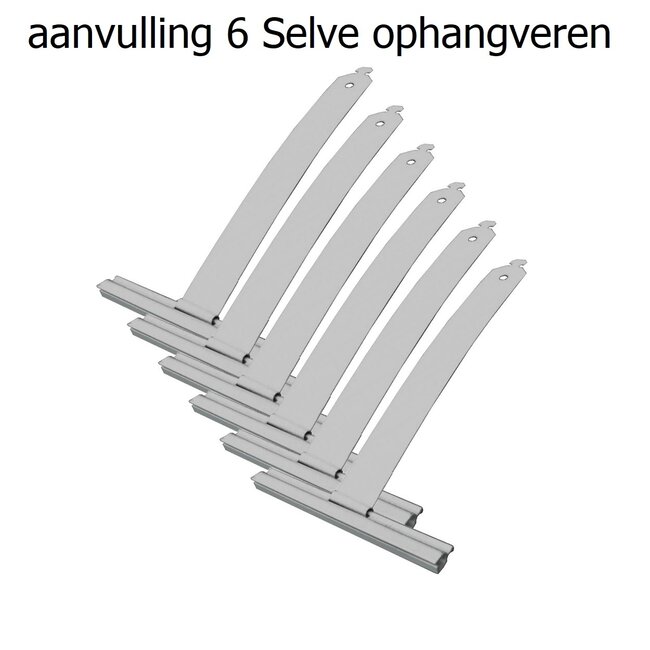

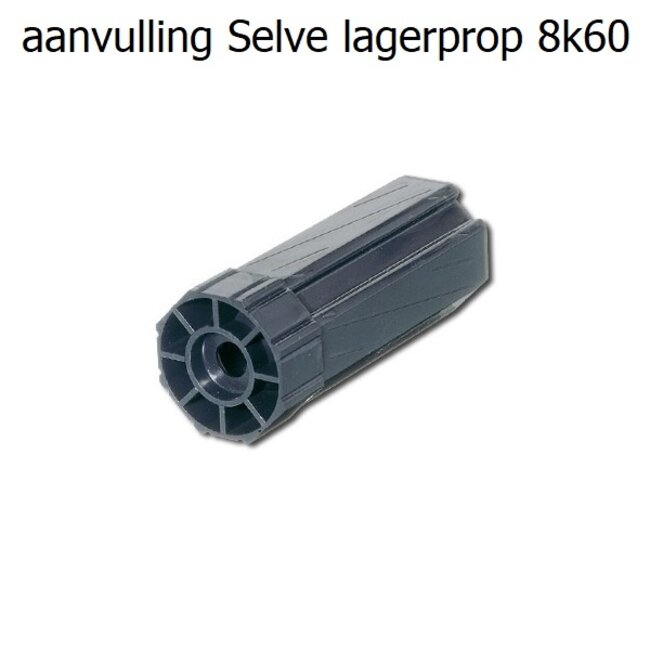

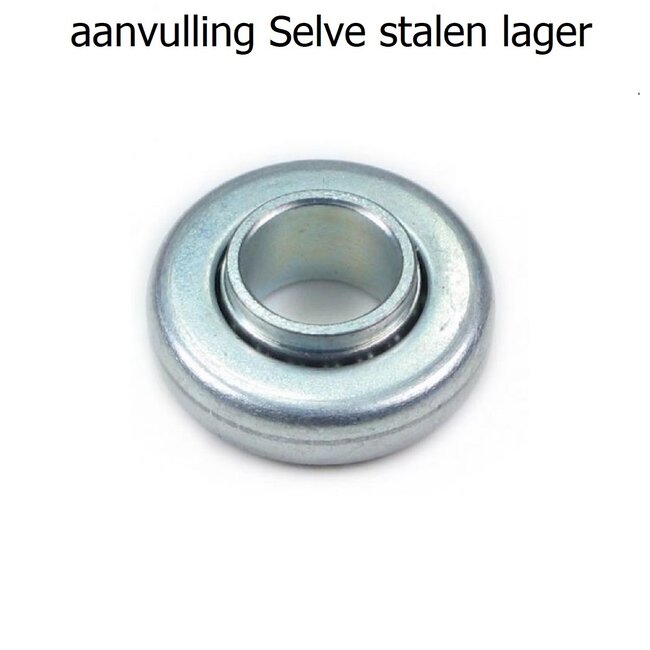

- as extra a set of suspension springs, Axle prop and Bearing for a tight price
- tubular motor 230 V/50 Hz with mechanical end adjustment
- 10, 18 and 30 Nm has a speed of 17 rpm
- 40 and 50 Nm has a speed of 12 rpm
- Motor length is 465 mm
- capacity of the final adjustment 46 revolutions
- not suitable for continuous use

Type TTGO tubular motors
- Tubular motor 10 Nm - 17 rpm --> Roller shutter max 3 m2
- Tubular motor 18 Nm - 17 rpm --> Roller shutter max 5 m2
- Tubular motor 30 Nm - 17 rpm --> roller shutter max 8 m2
- Tubular motor 40 Nm - 12 rpm --> roller shutter max 12 m2
- Tubular motor 50 Nm - 12 rpm --> roller shutter max 15 m2
