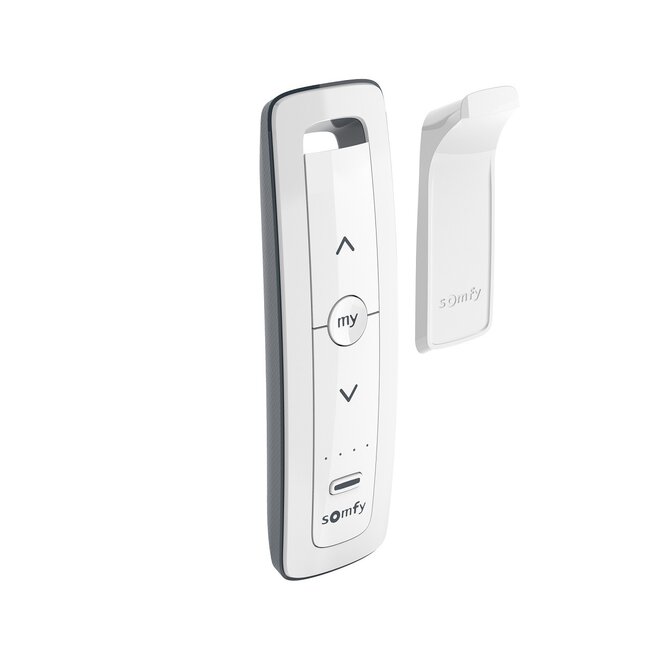

Somfy Situo 5 RTS Pure II handheld transmitter

Somfy Situo 5 RTS Pure remote control is the successor to the widely used Telis 4 RTS Handheld transmitter. It is suitable for all Somfy products equipped with RTS wireless technology. A Somfy Situo 5 RTS remote control is easy to program yourself. It is possible to operate several RTS products simultaneously, with one push of a button.

- applicable up to 5 systems with a Somfy RTS receiver
- replacement for the Somfy Telis 4 RTS - article 1810631
- frequency 433,42 MHz
- protection rating IP30
- easily programmable handheld transmitter
- pulse operation (one button press)

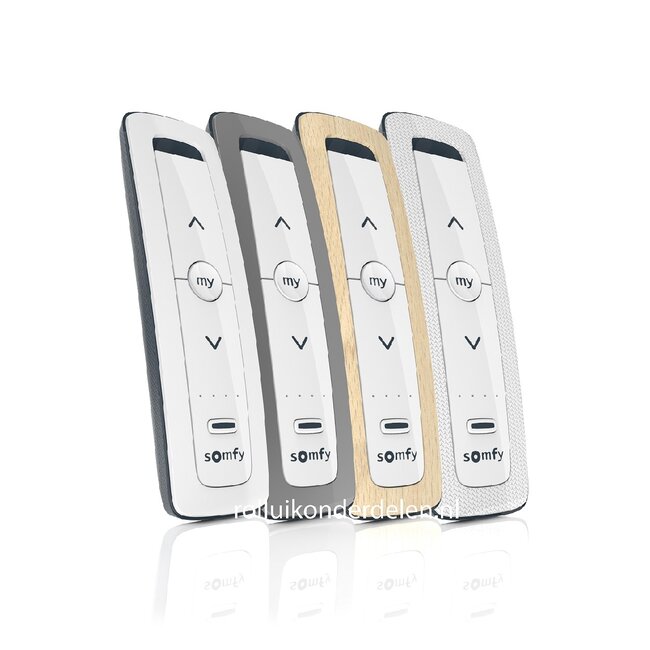

- available in 4 versions:

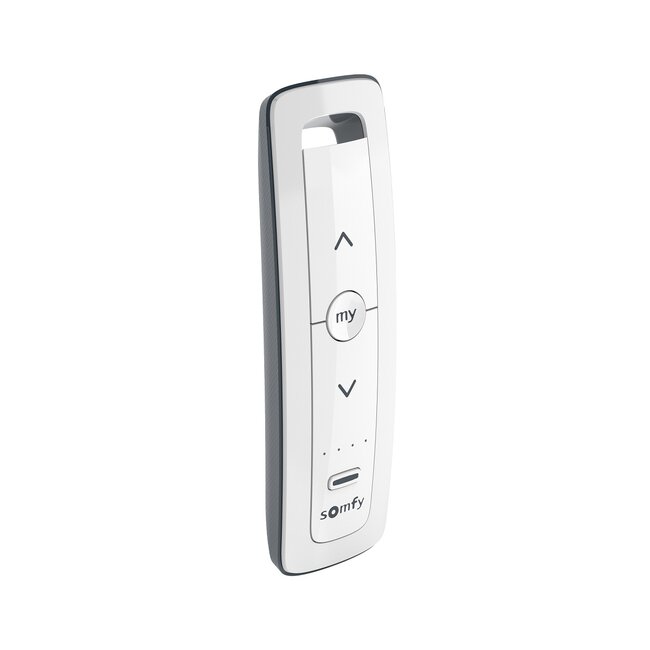

- Pure - white

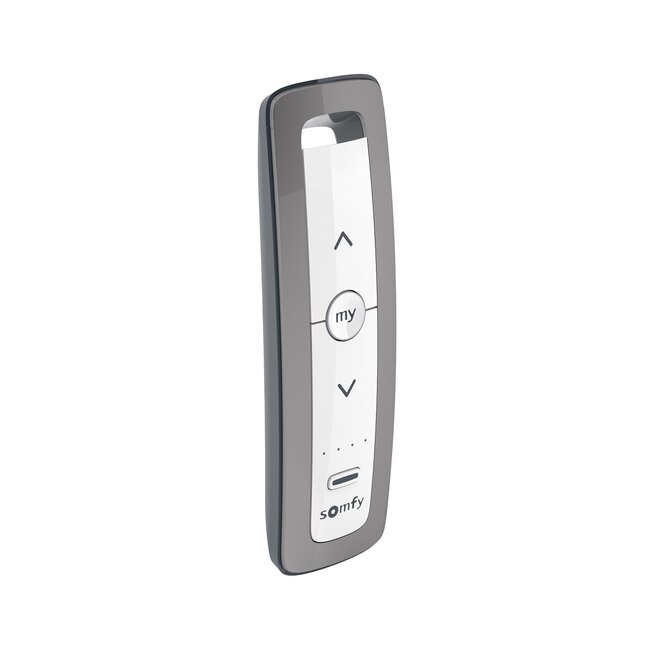

- Iron - metal colour

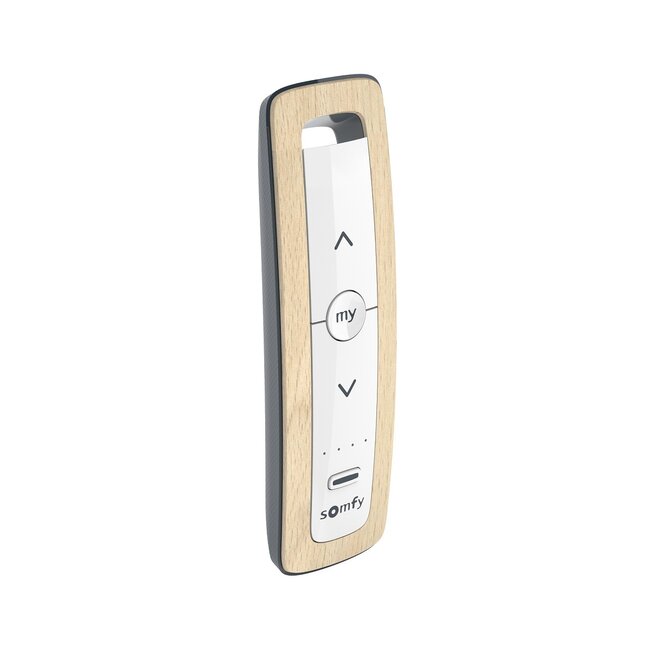

- Natural - wood colour

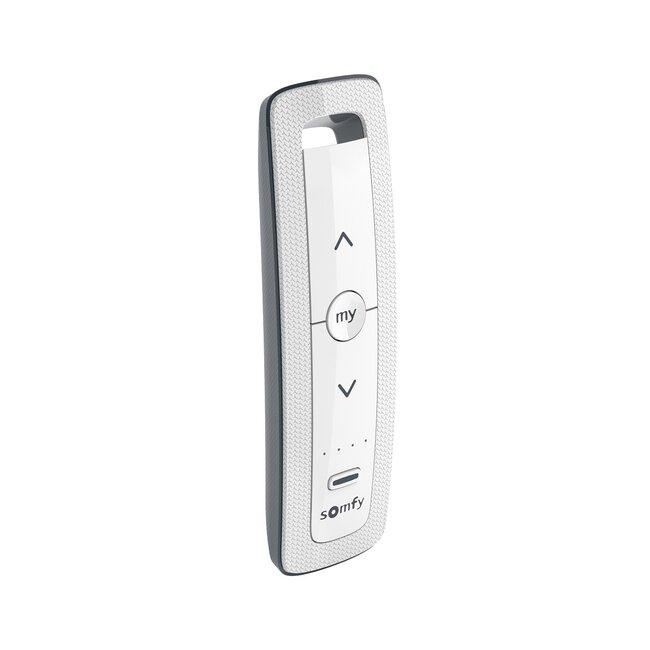

- Arctic - white with structure
- fixing via supplied wall button
- Handheld transmitter supplied with battery as standard

Setting an additional Somfy RTS transmitter using an already functioning transmitter
1. take an already programmed Somfy RTS Transmitter
2. set this transmitter to the correct channel
3. press the programming button on the back until the Roller shutter responds with a short movement.
4. Take the new Somfy RTS transmitter.
5. set this transmitter to the right channel
6. briefly press the programming button on the back until the roller shutter responds with a short movement.
7. repeat these steps with each channel
8. the new Somfy Situo 5 RTS Pure II transmitter is set up

Replacing a lost Somfy RTS transmitter
only one motor should be powered
1. set the Somfy Situo 5 RTS Transmitter to the correct channel
2. switch off the power supply for 2 seconds
3. switch on the power supply for 8 seconds
4. switch off the power supply again for 2 seconds
5. switch on the power supply again, the Motor responds with a short movement
6. briefly press the transmitter programming button, the Motor responds with a short movement
7. the first channel of the transmitter is set
8. repeat steps 1 to 7 for each channel

download a manual for setting up the transmitter here

1. If you have an already functioning Handheld transmitter you can use it to register the new transmitter, download manual how to do this here.
- Adding an additional Somfy RTS transmitter

2. If you do not have an old Handheld transmitter, the motor will have to be reset to the factory setting, after which you can reset the tube motor and register a new transmitter in the process.
- Reset motor to factory settings
- Reset the Somfy RTS tube motor
