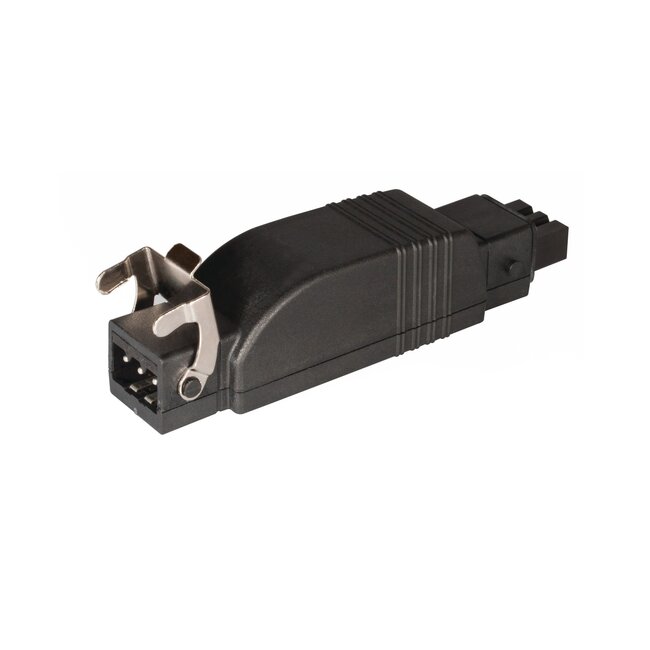

Somfy SLIM io receiver for roller shutters

Somfy io flush-mounted receiver designed to make wired tubular motors Roller shutters compatible with io-homecontrol® controls and to control all Somfy io remote controls

- connection directly with Hirschmann plug
- no wiring between receiver, wireless control point and Sensor.

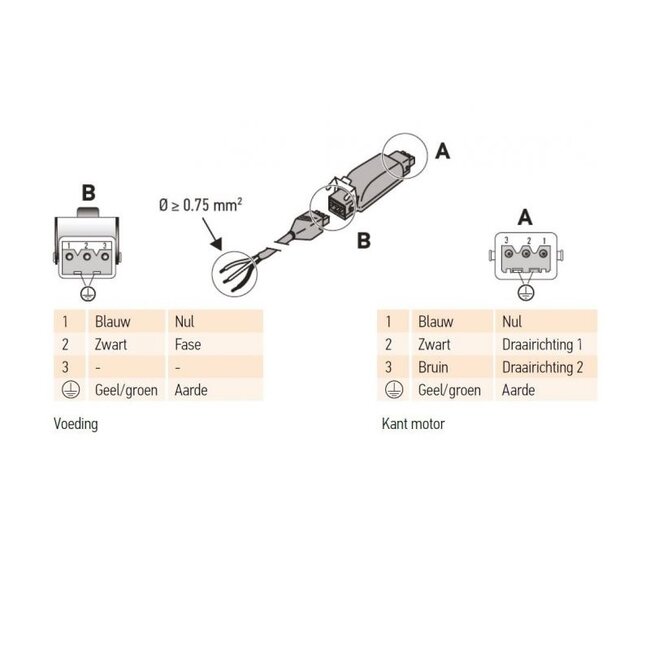

- power supply connection via Hirschman, with neutral (blue) on 1 and phase (brown) on 2
- motor connection via Hirschmann, with blue on 1 and black and brown on 2 and 3
- programming of 1 intermediate position possible
- compact design
- same ergonomics for solar management as for the Oximo 50 io and Altus io tubular motors
- fixed delays when using a sun sensor, sun rises 5 minutes, sun sets 20 minutes
- no feedback of the exact position of the Motor, only the last command
- the running time must be set during configuration
