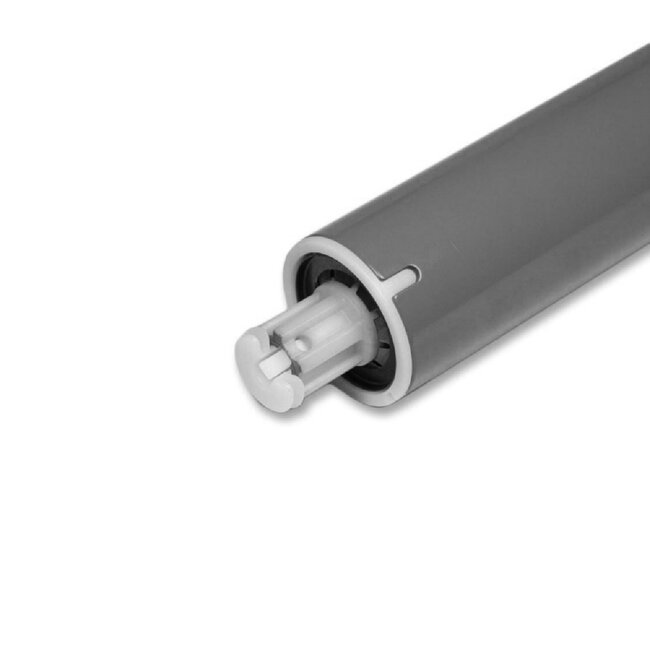

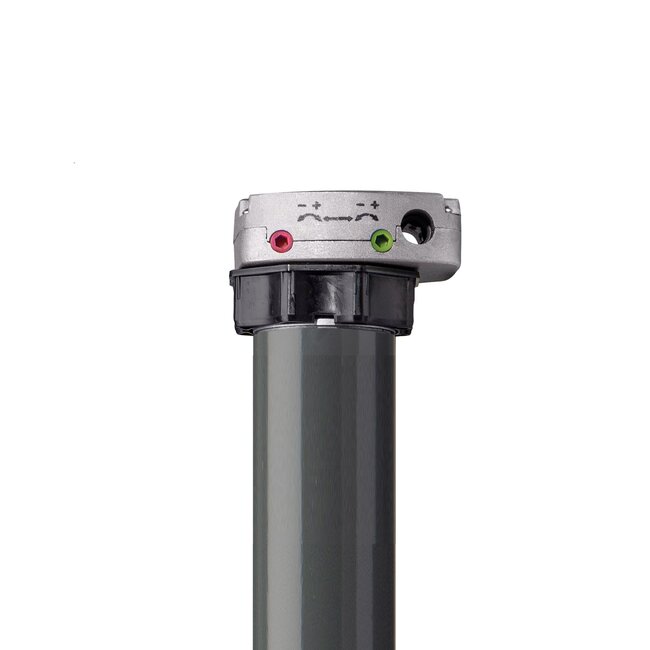

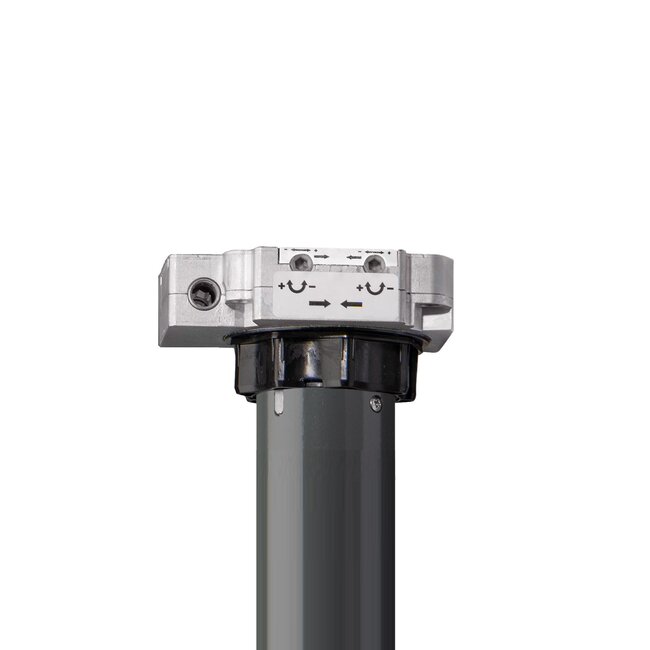

SP NHK, type 2 tubular motor with emergency hand control

The classic among electric roller shutter motors with emergency hand control and mechanical final adjustment. Because this tubular motor is equipped with an emergency hand control, you can operate the motor using a hand crank.

The Selve tube motors are now in a new grey colour, since the end of 2019 the tube motor is no longer coated in the familiar colour green, but in grey.

- Supplied without motor support and adapter set
- power supply 230 Volt 50 Hz
- available in 10 to 50 Nm
- speed 17 rpm (7 to 40 Nm) and 12 rpm (50 Nm)
- suitable for axle/Shaft from Ø 50 mm
- emergency hand control
- transmission of emergency hand lever up to 20 Nm is 13:1 as from 55:1
- hole for NHB 6-sided 7 mm or 4-sided 6 mm
- mechanical end shut-off
- limit switch with microswitch and patented spin protection
- Built-in in the familiar way
- simple adaptation to all conventional roller shutter tubes through a perfect adapter system
- no top stop required thanks to position-controlled switch-off

Type Selve SP 2 NHK tubular motors
- Selve SP 2/10 NHK - 10 Nm - 17 rpm - 105 Watt - length 567 mm
- Selve SP 2/15 NHK - 15 Nm - 17 rpm - 152 Watt - length 567 mm
- Selve SP 2/20 NHK - 20 Nm - 17 rpm - 172 Watt - length 567 mm
- Selve SP 2/30 NHK - 30 Nm - 17 rpm - 220 Watt - length 668 mm
- Selve SP 2/40 NHK - 40 Nm - 17 rpm - 345 Watt - length 668 mm
- Selve SP 2/50 NHK - 50 Nm - 12 rpm - 345 Watt - length 668 mm
