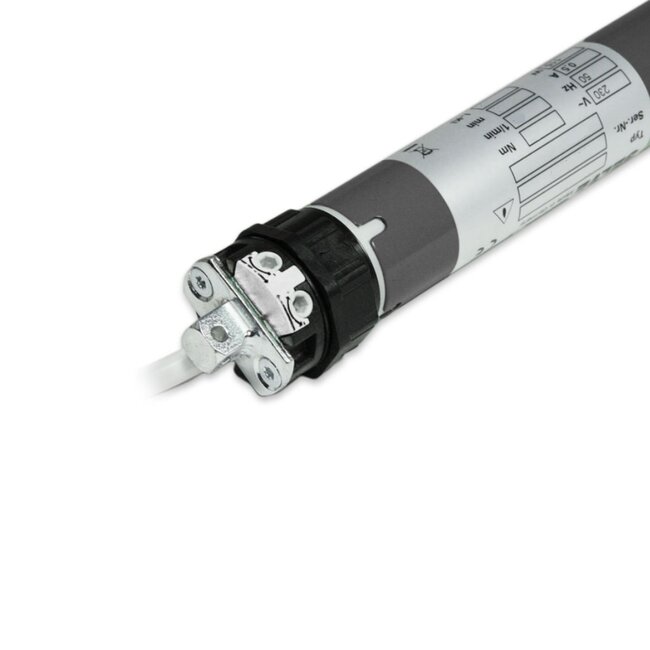

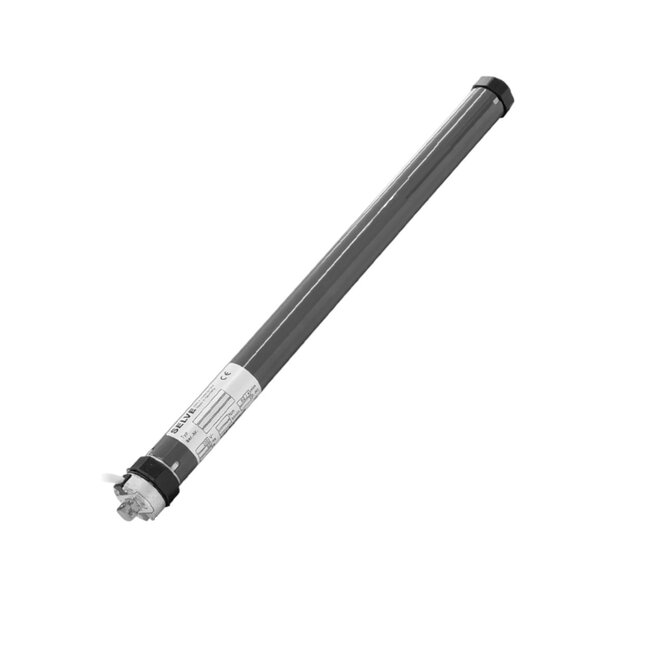

SP, type 1 tubular motor

The SELVE SP is SELVE's high-quality universal tube motor with mechanical end adjustment - Made in Germany. Excellent processing quality and more than 10 years of product experience from many hundreds of thousands of motors of this type sold, make the SELVE SP a safe choice for long-term and trouble-free use of your Roller shutter and sun protection system.

Also as a replacement for an "old" SELVE drive (T-, F-, HT-drives from SELVE with 12 mm square) from the 90s, the SELVE SP motor is excellent. Here, the existing motor bracket can remain in place, as the SP drives also have a 12 mm square.

- Supplied without motor support and adapter set
- power supply 230 Volt 50 Hz
- available in 4 to 13 Nm
- suitable for axle/Shaft from Ø 40 mm

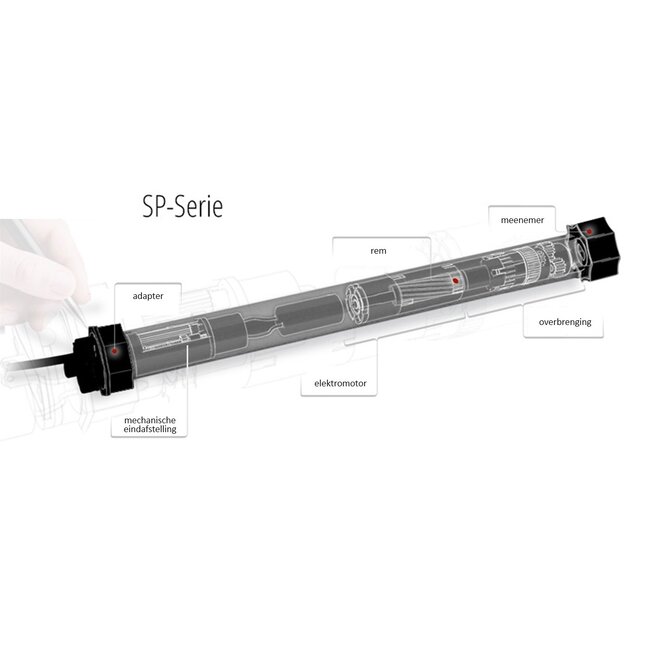

- tubular motor with mechanical limit switch
- spindle limit switch with microswitch and patented spin protection

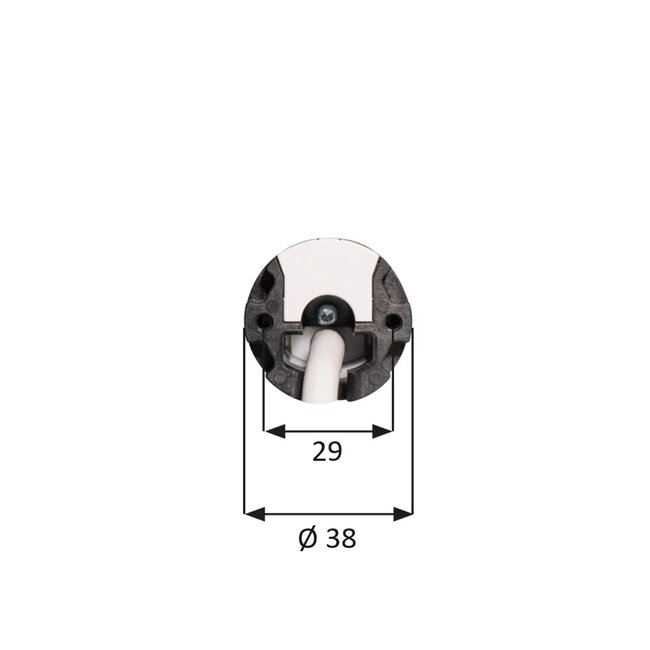

- reduced installation width thanks to universal motor head
- simple adjustment due to ball head adjustment aid
- Built-in in the familiar way
- easy adaptation to all conventional roller shutter tubes with appropriate adapter set
- no top stop required thanks to fixed end adjustment

Type Selve SP1 tubular motors
- Selve SP 1/4 - 4 Nm - 30 rpm - 115 Watt - length 508 mm
- Selve SP 1/6 - 6 Nm - 15 rpm - 115 Watt - length 508 mm
- Selve SP 1/7 - 7 Nm - 20 rpm - 115 Watt - length 508 mm
- Selve SP 1/10 - 10 Nm - 15 rpm - 115 Watt - length 508 mm
- Selve SP 1/13 - 13 Nm - 8 rpm - 115 Watt - length 523 mm
